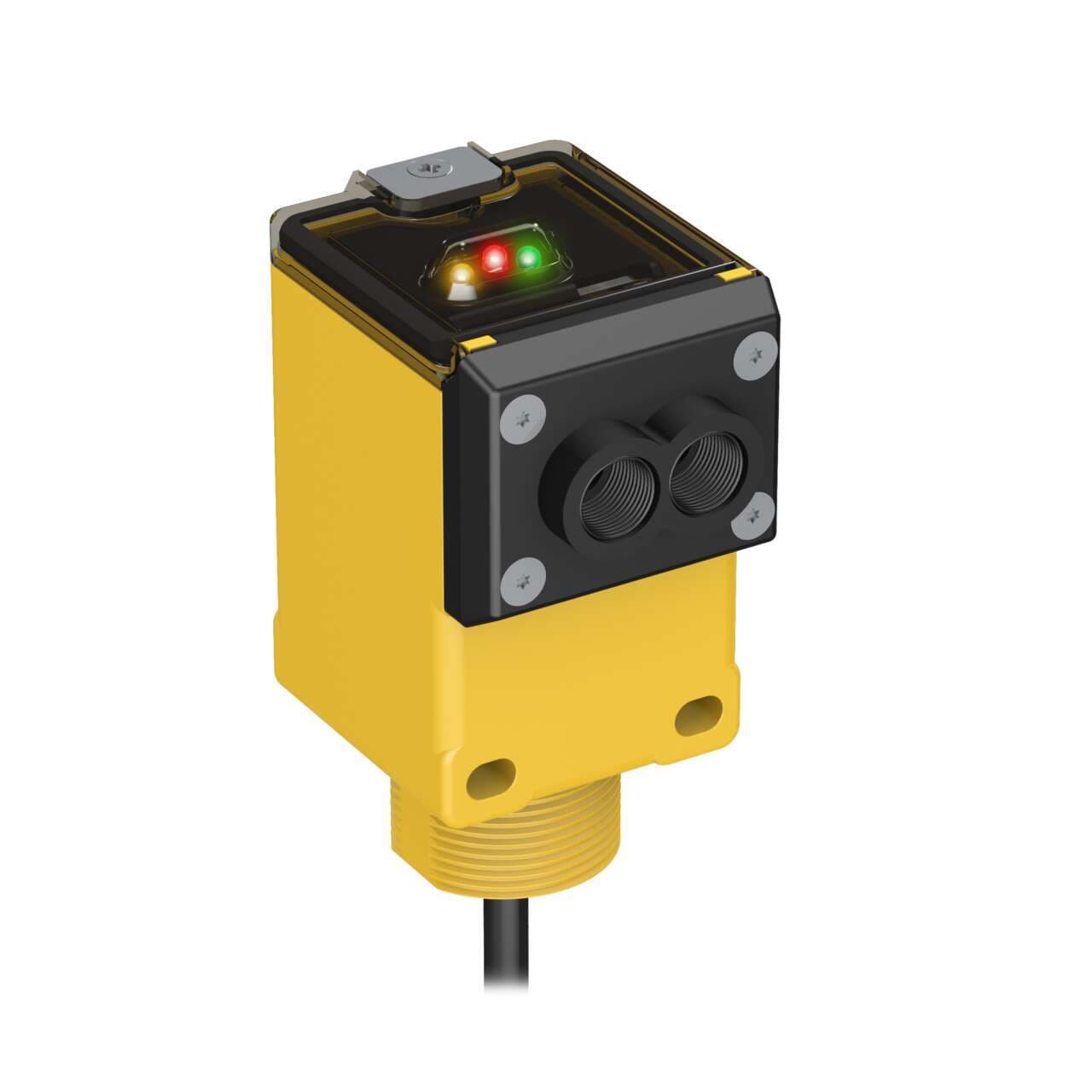

Q45VR2FV Banner Proximity Sensors
Part#:Q45VR2FV
Alt. Part#:43543
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 Series: Visible Red Glass Fiber Optic; Range: Depends on Fiber; Input: 90-250 V ac; Output: SPDT Electromechanical Relay; 2 m (6.5 ft) Cable
Product Details
- Weight 344.72992 g
- Country Of Origin US
- Product series / family name Q series

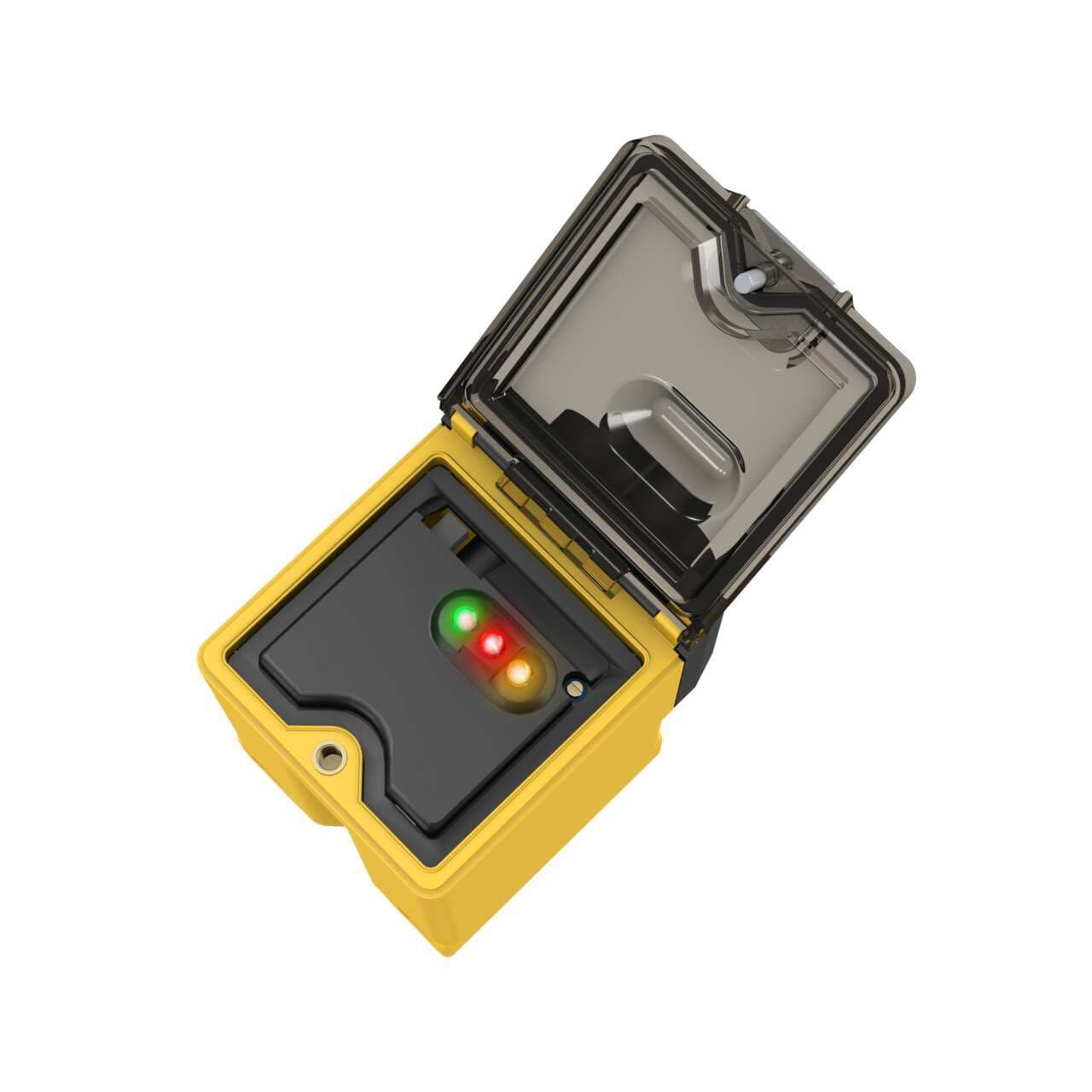

- Functions Photo-electric fiber optic sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Material thermoplastic housing Glass fiber
- Main function Sensor (Photo-electric)
- Sub-range name Q45VR2
- Shape Rectangular
- Primary brand Banner Engineering
- Supply voltage (AC) 90Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Thread size M30
- Ambient air temperature for operation -40...+70 °C
- Compliant with standard(s) cURus CCC cCSAus CE
- Wavelength 650 nm
- Mounting mode Threaded mount
- Response time 15ms / 0.015 s
- Light Color Visible red
- Operating mode Light-ON Dark-ON
- Order code / Manufacturer SKU 43543
- Digital outputs 1 x digital output (SPDT contact type)
- Degree of protection IP67 NEMA 6P
- Fiber Type Glass Only
- IP Rating IP67
- Indicator Display Type Indicator LEDs
- Feature: Hazardous Area No
- Connection Cable
- Max Op. Temperature (°C) 70
- Minimum response time (ms) 15
- Min Op. Temperature (°C) -40
- Housing Style Rectangular
- Delay at Power-up (ms) 100
- Color LED - Amplifiers Red
- Output Type (Specific) Single Discrete
- Special Feature: Remote Teach No
- Feature: Audible No
- Quick Disconnect Type No QD
- Primary Housing Material Thermoplastic
- Intrinsically Safe No
- Housing Material Thermoplastic
- Power AC
- NEMA Rating NEMA 6P
- Special Feature: Bussable Power No
- Cable Length (m) 2
- Number of Pins 5
- Adjustments Potentiometer
- IO Link No
- Repeatability (µs) 500
- Power Supply/Supply Voltage 90-250 V ac
- Input/Output Discrete
- Output SPDT e/m Relay
- Max Op. Relative Humidity (%) 90% @ 50°C
- Feature: Timing (Hold/Delay) Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45VR2FV on Powermatic Associates is $155.00. Order now.
About the product
Banner Engineering Q45VR2FV is a photo-electric glass fiber optic sensor designed for versatile applications, featuring an M30 threaded mount for secure installation. It operates within an ambient air temperature range of -40 to +70°C, ensuring functionality in various environmental conditions. The sensor is equipped with a potentiometer adjustment for precise settings and comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy integration into existing systems. It requires a supply voltage of 90Vac-250Vac, with nominal values at 200Vac, 220Vac, and 240Vac, belonging to the Q45VR2 series. With an IP67 NEMA 6P degree of protection, the sensor's thermoplastic housing and glass fiber construction are built to withstand harsh conditions. It emits a visible red light at a wavelength of 650 nm and can operate in both Light-ON and Dark-ON modes for increased application flexibility. The sensor features a single digital output (SPDT relay contact) and boasts a quick response time of 15ms / 0.015 s.
