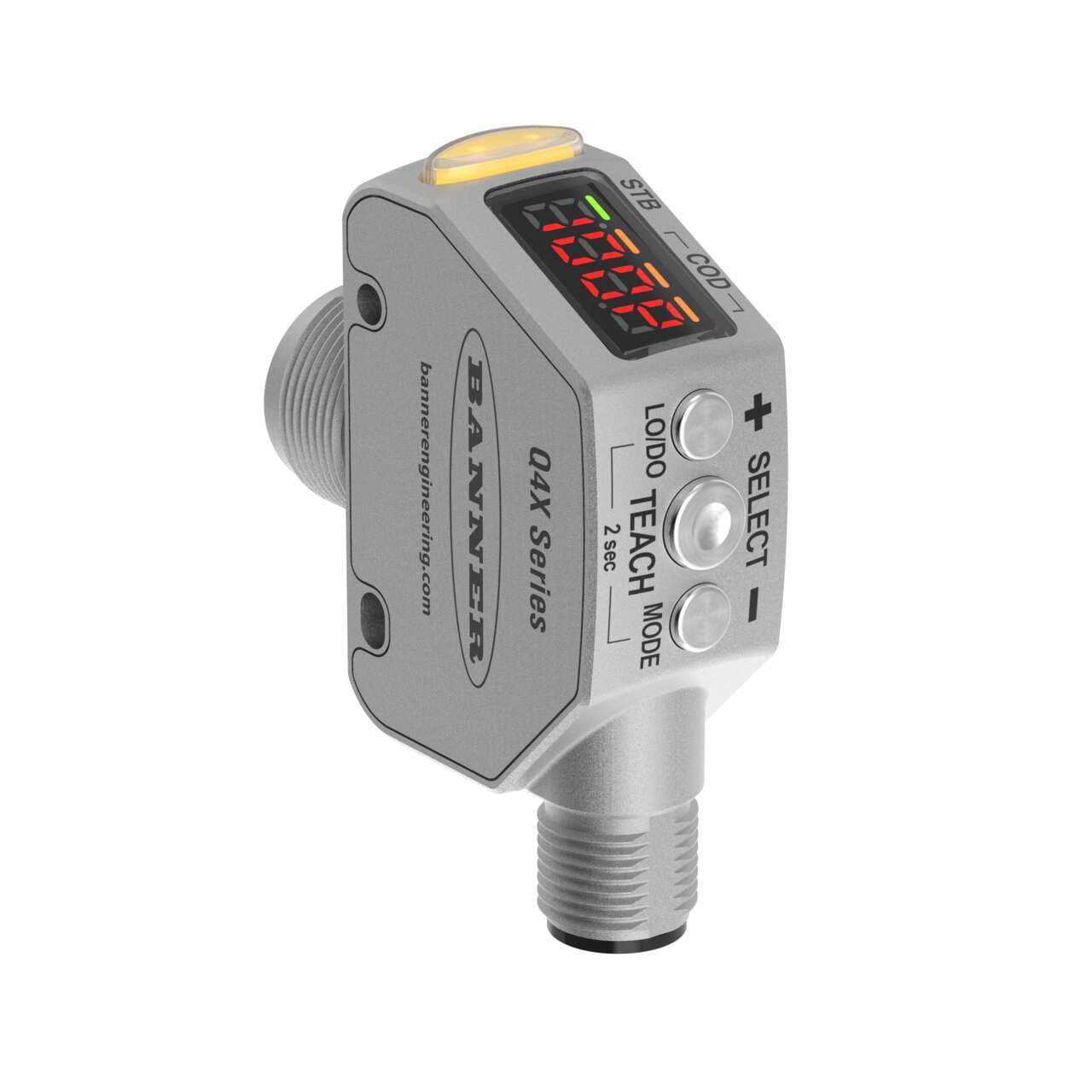

Q4XTBCOD300-Q8 Banner Proximity Sensors

Product Details

• Weight
  45.3592 g
• Country Of Origin
  US
• Primary brand
  Banner Engineering
• Product series / family name
  Q series
• Display
  LED 4 digits display
• Wavelength
  655 nm
• Degree of protection
  IP67 IP68 IP69K
• Equivalent to
  Q4XTBCOD300Q8
• Sub-range name
  Q4X
• Light Color
  Visible class 1 red Laser
• Digital outputs
  1 x digital output (PNP/NPN transistor)
• Compliant with standard(s)
  CE
• Main function
  Sensor (Photo-electric)
• Design
  background / foreground suppression system
• Thread size
  M18
• Material
  Stainless steel housing Acrylic LED window
• Chemical resistance
  chemical-resistant
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Sensing distance
  25...300mm
• Mounting mode
  Threaded mount
Protection functions
Overload Short-circuit
Order code / Manufacturer SKU
95292
Functions
Clear object class 1 Laser photo-electric sensor TEACH mode
Shape
Rectangular
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Ambient air temperature for operation
-10...+50 °C
Feature: Remote Teach
Yes
PROFINET
No
RS-422
No
SSI
No
Power
DC
Connection
Integral QD
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Max Operating Temperature (°C)
50
Alarm Output (mA)
100
Feature: Ecolab Certified
Yes
Sensing Mode (General)
Proximity
Quick Disconnect Type
M12 (Euro)
Mechanical Shock
MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Min Operating Temperature (°C)
-10
Feature: Clear Object Detection
Yes
RS-485
No
Sensing Mode (Detailed)
Background/Foreground Suppression
Delay at Power-up (ms)
750
Discrete (Switched) Outputs
Bipolar (NPN & PNP)
Barrel Diameter (mm)
18
Feature: Washdown Rated
Yes
RS-232
No
Max Measurement Range
>100 mm - <=500 mm
Max Sensing Distance (mm)
300
Output Saturation Voltage PNP Outputs
<1.5 V @ 100 mA
Max Op. Relative Humidity Non-Condensing (%)
95 at 55°C
Max Off-state Leakage Current (µA)
5 @ 30 V dc
Feature: Chemical Resistant
Yes
PC Configurable
No
Sensing Beam
Visible Red Laser
Laser Classification
Class 1
Power Supply
10-30 V dc
Sensing Beam Wavelength (nm)
655
Output Protection
Protected against continuous overload and short circuit
Housing Style
Rectangular w/M18 Mount
Device Type
Sensor
Minimum Sensing Distance (mm)
25
Indicator
Display; LED(s)
Input/Output
Discrete
Primary Housing Material
Stainless Steel
Adjustments
Push Button; Remote Teach
Power/Current Consumption (exclusive of load)
< 675 mW
Max Discrete (Switched) Output (mA)
100
Wireless
No
Number of Pins
5
Minimum Response Time (ms)
1.5
IO Link
No
IP Rating
IP67; IP68; IP69
Spot Size (@ Reference Distance)
2.0 mm x 0.8 mm @ 300 mm
1-wire Serial Interface
No
Common Ethernet Protocol
No
Profibus
No
Storage Temperature (°C)
-25 to 75
Window Material
Acrylic
Max Ambient Light (Lux)
5000
Feature: Timing (Hold/Delay)
Yes
Output Saturation Voltage NPN Outputs
<1.0 V @ 100 mA
Warm-up Time (minutes)
10
Laser Control
Yes
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
