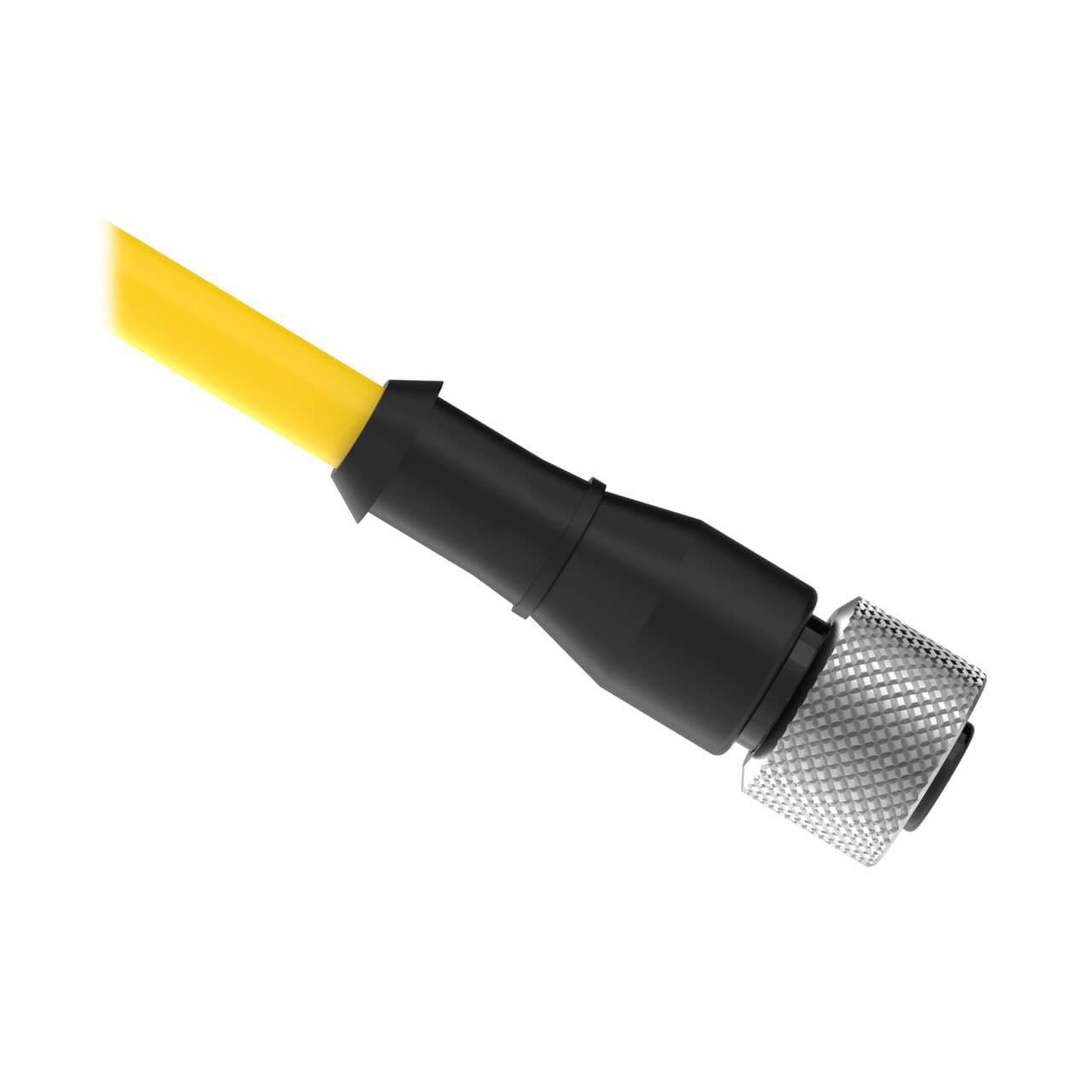

QDE-830D Banner Cordsets

Name: QDE-830D
Brand: Banner
Price: 47 USD
Availability: BackOrder

Part#:QDE-830D

Alt. Part#:78943

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Product description

Cordset: Single Ended M12; 8-pin Straight Female; 9.14 m 8x22 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nut

Product Details

Weight
498.9512 g
Country Of Origin
TW
Outside Cable Diameter (mm)
6
Oil/Grease Resistant
No
Number of Connectors
1
Number of Contacts
8
Primary Coupling Method
M12 Single Key
Trunk Length (m)
No Trunk
Primary Connector Type
EURO
Secondary Connector Type
Flying Leads
Connector Body Material/Color
PUR Black
Voltage Rating (V)
75 V ac/dc
Cordset Length (m)
9.14
Minimum Temp. (°C)
-40
Primary Number of Conductors
8
Primary AWG
22
Shield/No Shield
No Shield
Maximum Temp. (°C)
105
Primary Orientation
Straight
Coupling Material/Color
Nickel Plated Brass

Primary Gender

Female

Cable Jacket Material

PVC

Current Rating (A)

2.0

Feature: Hazardous Area

Cable Jacket Color

Yellow

IP Rating

IP67

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QDE-830D on Powermatic Associates is $47.00. Order now.

About the product

Banner Engineering QDE-830D is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with an 8-pin Euro-style M12 female connector and bare end flying leads, facilitating easy and versatile connections. The cable has a diameter of 6mm and is encased in yellow PVC sheathing, ensuring durability and visibility in different environments. It is rated for operation in ambient air temperatures ranging from -40 to +105 degrees Celsius, making it suitable for use in a wide range of industrial settings. With a length of 30ft (9m) and a rated voltage of 75Vdc, this cable offers ample reach and power handling for numerous applications. The QDE-830D is also designed to meet IP67 standards, providing protection against dust and water ingress.
