QDE-850D Banner Cordsets
Product Details
- Weight 916.25584 g
- Country Of Origin TW
- Oil/Grease Resistant No
- Feature: Hazardous Area No
- Primary Orientation Straight
- Primary AWG 22
- Primary Number of Conductors 8
- Secondary Connector Type Flying Leads
- Primary Coupling Method M12 Single Key
- IP Rating IP67
- Primary Gender Female
- Voltage Rating (V) 75 V ac/dc
- Primary Connector Type EURO
- Maximum Temp. (°C) 105
- Current Rating (A) 2.0
- Minimum Temp. (°C) -40
- Coupling Material/Color Nickel Plated Brass
- Shield/No Shield No Shield
- Trunk Length (m) No Trunk
- Connector Body Material/Color PUR Black
- Cable Jacket Material PVC
- Number of Connectors 1
- Cordset Length (m) 15.2
- Cable Jacket Color Yellow
- Outside Cable Diameter (mm) 6
- Number of Contacts 8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QDE-850D on Powermatic Associates is $59.00. Order now.
About the product

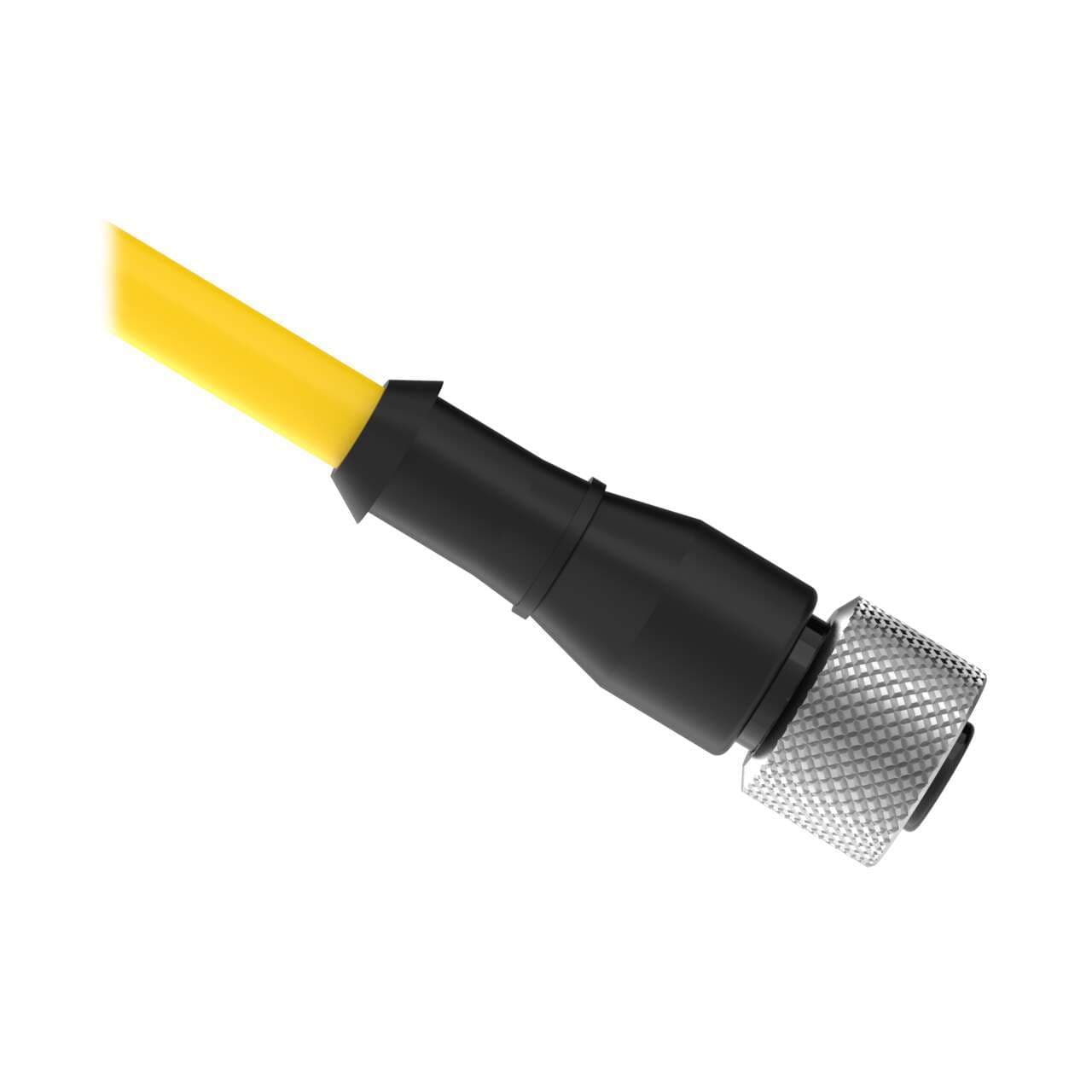

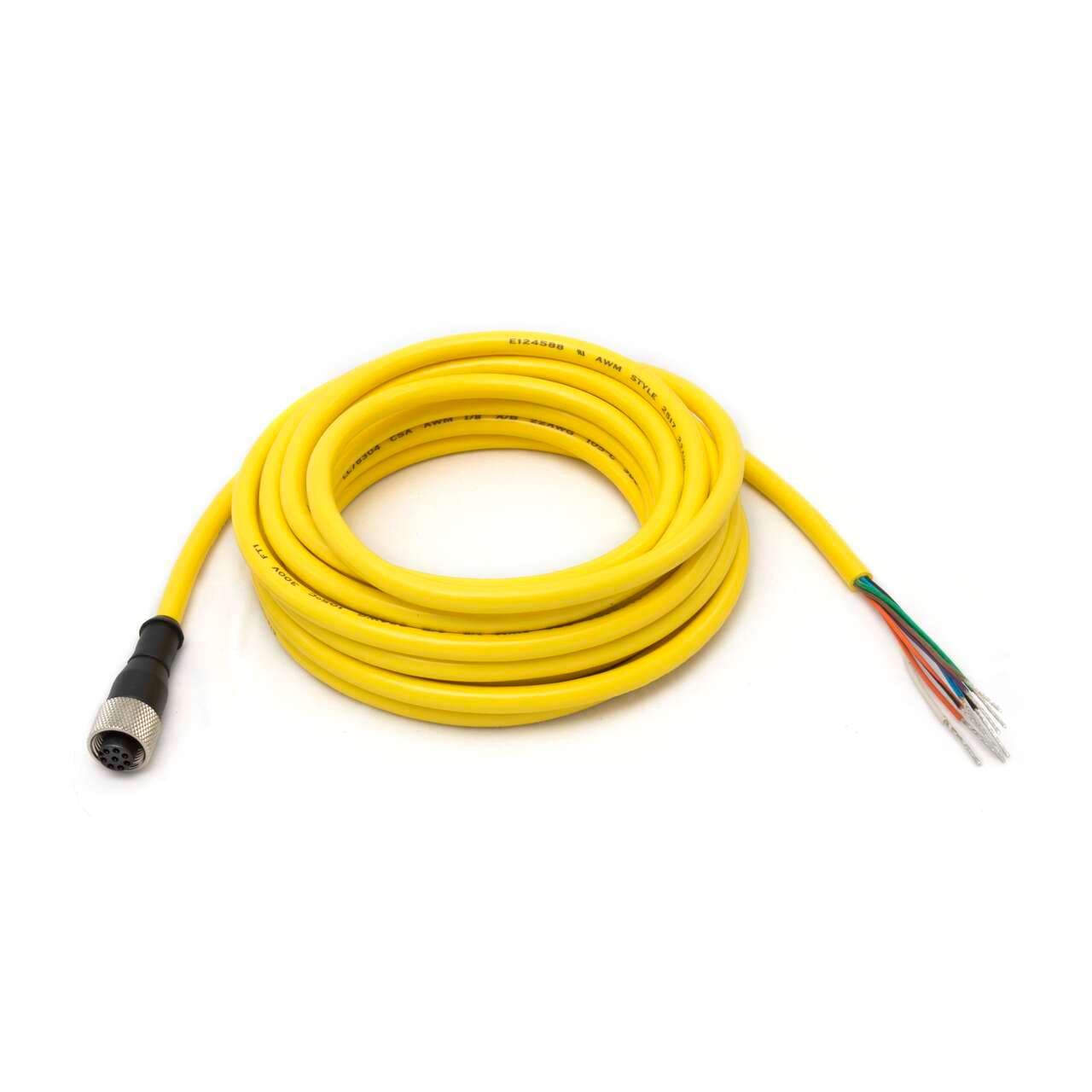

Banner Engineering QDE-850D is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with an 8-pin Euro-style M12 female connector and bare end flying leads, facilitating easy and versatile connections. The cable has a diameter of 6mm and is encased in yellow PVC sheathing, ensuring durability and visibility in different environments. It is rated for operation in ambient air temperatures ranging from -40 to +105 degrees Celsius, making it suitable for use in a wide range of industrial settings. With a length of 50ft (15m) and a rated voltage of 75Vdc, this cable offers ample reach and power handling capability for various applications. The QDE-850D is also designed to meet IP67 standards, providing protection against dust and temporary immersion in water.
