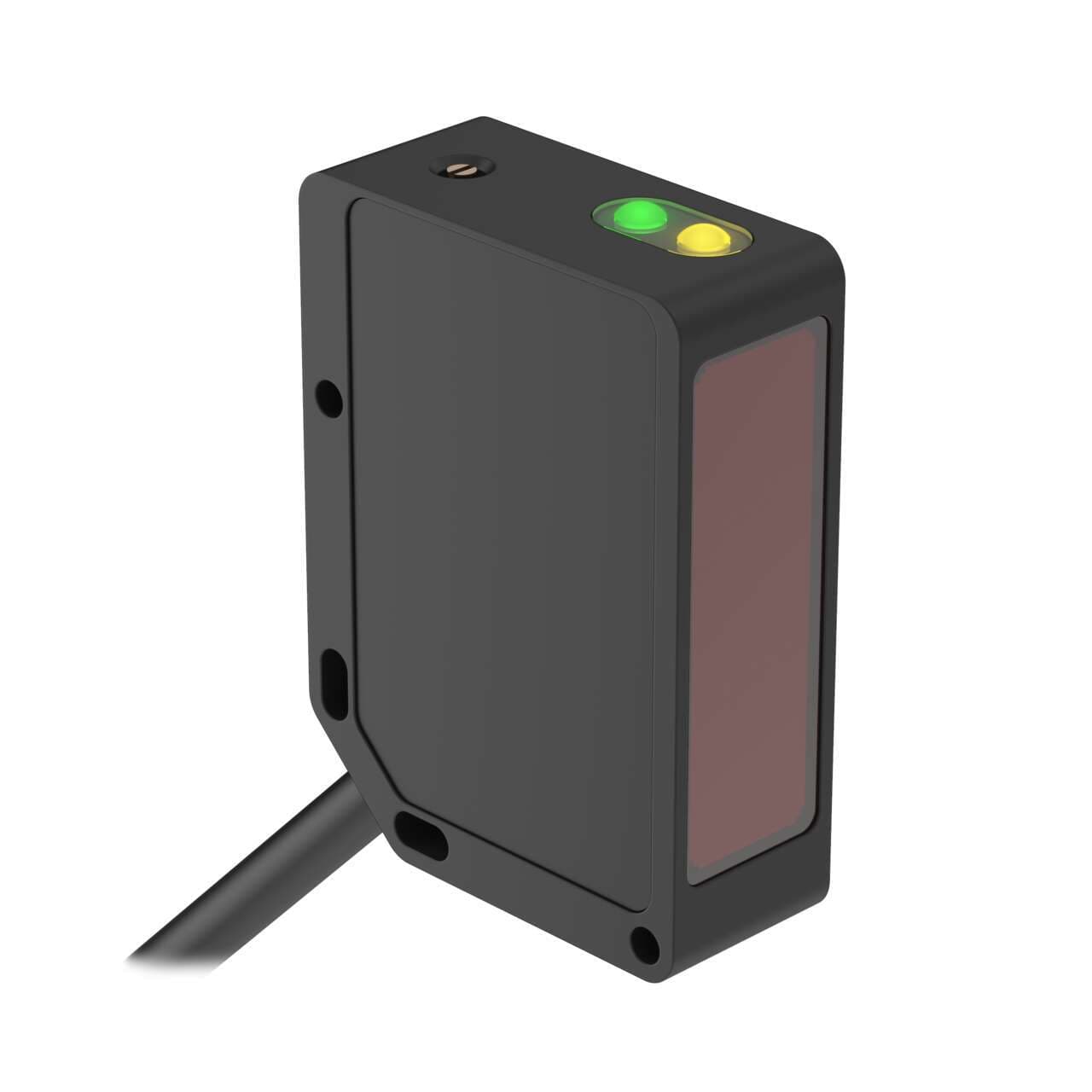

QMT42VP6FF1500 Banner Optical Sensors

Product Details

• Weight
  235.86784 g
• Country Of Origin
  CN
• Main function
  Sensor (Photo-electric)
• Design
  background suppression system
• Light Color
  Infrared (IR)
• Ambient air temperature for operation
  -20...+55 °C
• Primary brand
  Banner Engineering
• Product series / family name
  Q series
• Shape
  Rectangular
• Compliant with standard(s)
  cURus CE
• Sub-range name
  QMT42
• Wavelength
  880 nm
• Digital outputs
  1 x digital output (PNP transistor)
• Degree of protection
  IP67 NEMA 6
• Material
  Die-cast Zinc alloy housing Acrylic lns.
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Response time
  1ms / 0.001 s
• Functions
  Fixed-field photo-electric sensor green LED (power ON) amber LED (light sensed)
• Sensing distance
  1.5m
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Operating mode
Light-ON Dark-ON
Order code / Manufacturer SKU
57545
Output response time (ms)
1
Indicator
LEDs
Feature: Chemical Resistant
No
Input/Output
Discrete
Connection
Cable
NEMA Rating
NEMA 6
Feature: Hazardous Area
No
Power
DC
Outputs
PNP
Sensing Beam Wavelength
880
Lens Material
Acrylic
DeviceNet
No
Sensing Beam
Infrared LED
Primary Housing Material
Zinc Alloy Die-Cast
Special Feature: Intrinsically Safe
No
Max Op. Relative Humidity [%]
90% @ 50°C
Barrel Diameter (mm)
N/A
Sensing Mode (Detailed)
Background Suppression (Fixed)
Quick Disconnect Type
No QD
IP Rating
IP67
Feature: Encapsulated
No
Power Supply/Supply Voltage
10-30 V dc
Special Feature: Remote Teach
No
Opposed Mode Emitter/Receiver
N/A
Max Sensing Distance (mm)
1500
Operation
Light/Dark Operate
Adjustments
N/A
Feature: Audible
No
Sensing Mode (General)
Proximity
Max Op. Temp. (°C)
55
Repeatability (µs)
250
Min Op. Temp. (°C)
-20
Number of Pins
4
Feature: Timing (Hold/Delay)
No
Cable Length (m)
2
Housing Style
Rectangular
Special Feature: Water Detection
No
Delay at Power-up (ms)
100
IO Link
No
