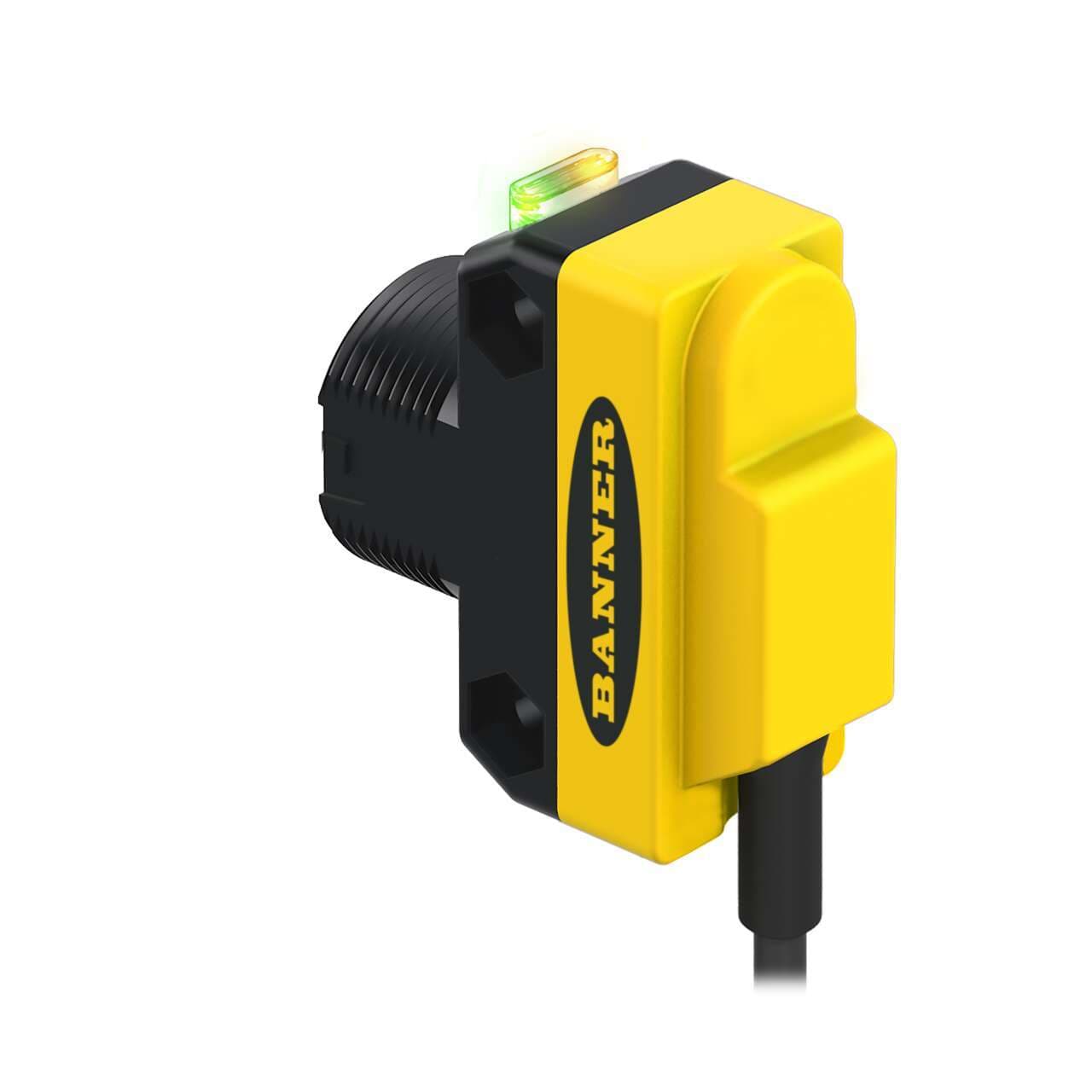

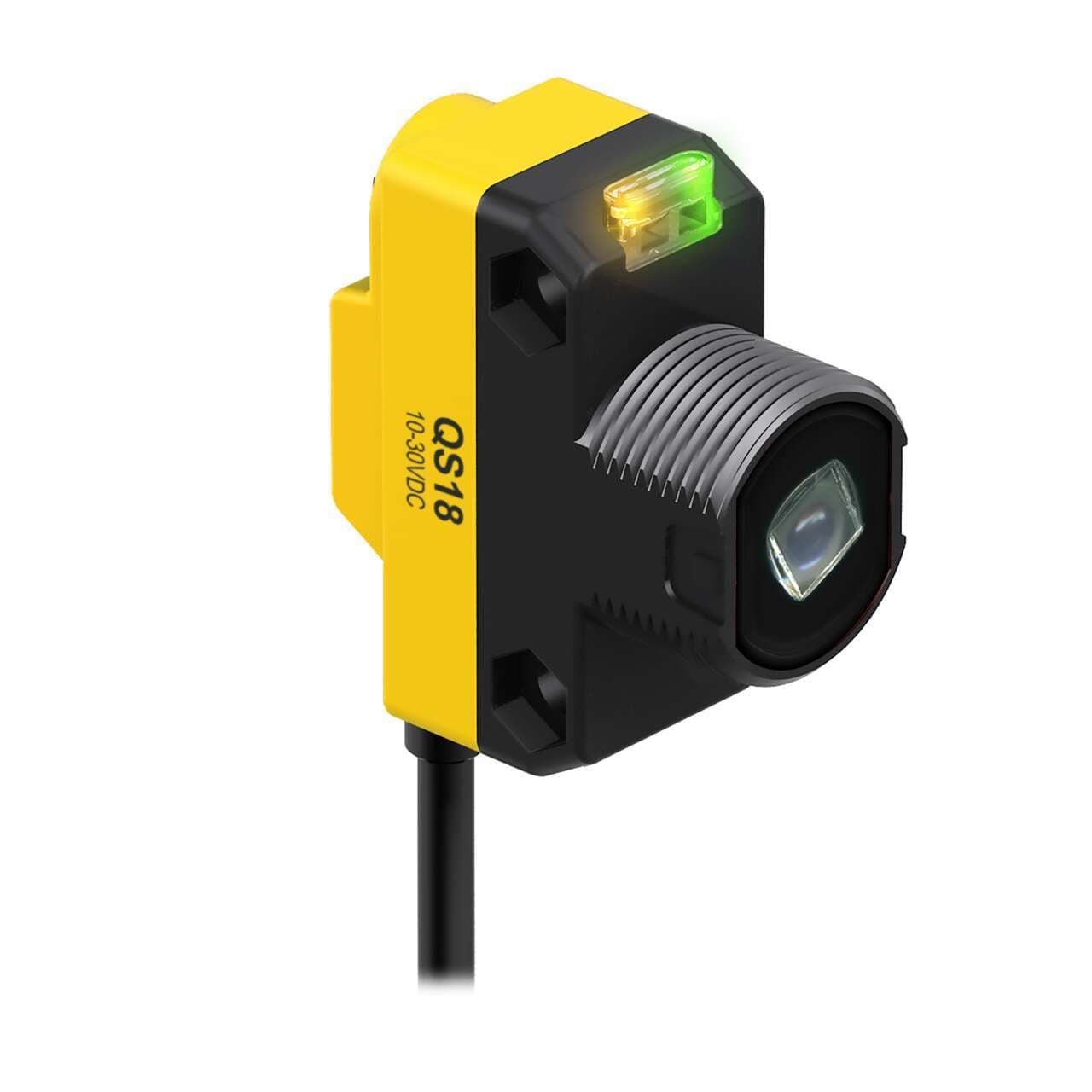

QS186LE10 Banner Proximity Sensors
Part#:QS186LE10
Alt. Part#:70254
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Laser Class 1;Circle; Range: 15 m; Input: 10-30 V dc; Output: Not Applicable; 2 m Cable
Product Details
- Weight 90.7184 g
- Country Of Origin MX
- Product series / family name WORLD-BEAM series
- Design opposed (circle) system
- Thread size M18
- Mounting mode Threaded mount
- Primary brand Banner Engineering
- Functions Class 1 Laser photo-electric emitter green LED (power ON) yellow LED (light sensed)
- Material thermoplastic housing PMMA lns.
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation -10...+50 °C
- Sub-range name QS186LE series
- Light Color Visible red
- Compliant with standard(s) CE
- Wavelength 650 nm
- Shape Rectangular
- Order code / Manufacturer SKU 70254
- Degree of protection IP67 NEMA 6
- Sensing Mode (General) Opposed
- Connection Cable
- Special Feature: Remote Teach No
- Lens Material PMMA
- DeviceNet No
- Power DC
- Outputs N/A
- Delay at Power-up (ms) 250
- Adjustments N/A
- Feature: Audible No
- Primary Housing Material ABS
- Operation N/A
- IP Rating IP67
- Feature: Hazardous Area No
- Laser Classification Class 1
- Min Op. Temp. (°C) -10
- Sensing Beam Wavelength 650
- Barrel Diameter (mm) 18
- Sensing Mode (Detailed) Laser Emitter
- Output response time (ms) N/A
- Number of Pins 4
- Opposed Mode Emitter/Receiver Emitter
- Small Visible Spot Laser
- Max Op. Temp. (°C) 50
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- Housing Style Rectangular w/M18 Mount
- Quick Disconnect Type No QD
- Special Feature: Water Detection No
- Indicator LEDs
- IO Link No
- Sensing Beam Visible Red Laser
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Encapsulated No
- Cable Length (m) 2
- Max Sensing Distance (mm) 15000
- Repeatability (µs) N/A
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS186LE10 on Powermatic Associates is $94.00. Order now.
About the product
Banner Engineering QS186LE10 is a Class 1 laser photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50°C. This sensor is part of the QS186LE series and is characterized by its opposed (circle) system design. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy connection. The QS186LE10 offers a high degree of protection with an IP67 NEMA 6 rating, ensuring durability in various environments. It operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The sensor's rectangular shape is constructed from a thermoplastic housing with a Polymethyl methacrylate (PMMA) lens, and it is capable of sensing distances up to 15m. It emits a visible red light with a wavelength of 650 nm for efficient detection.
