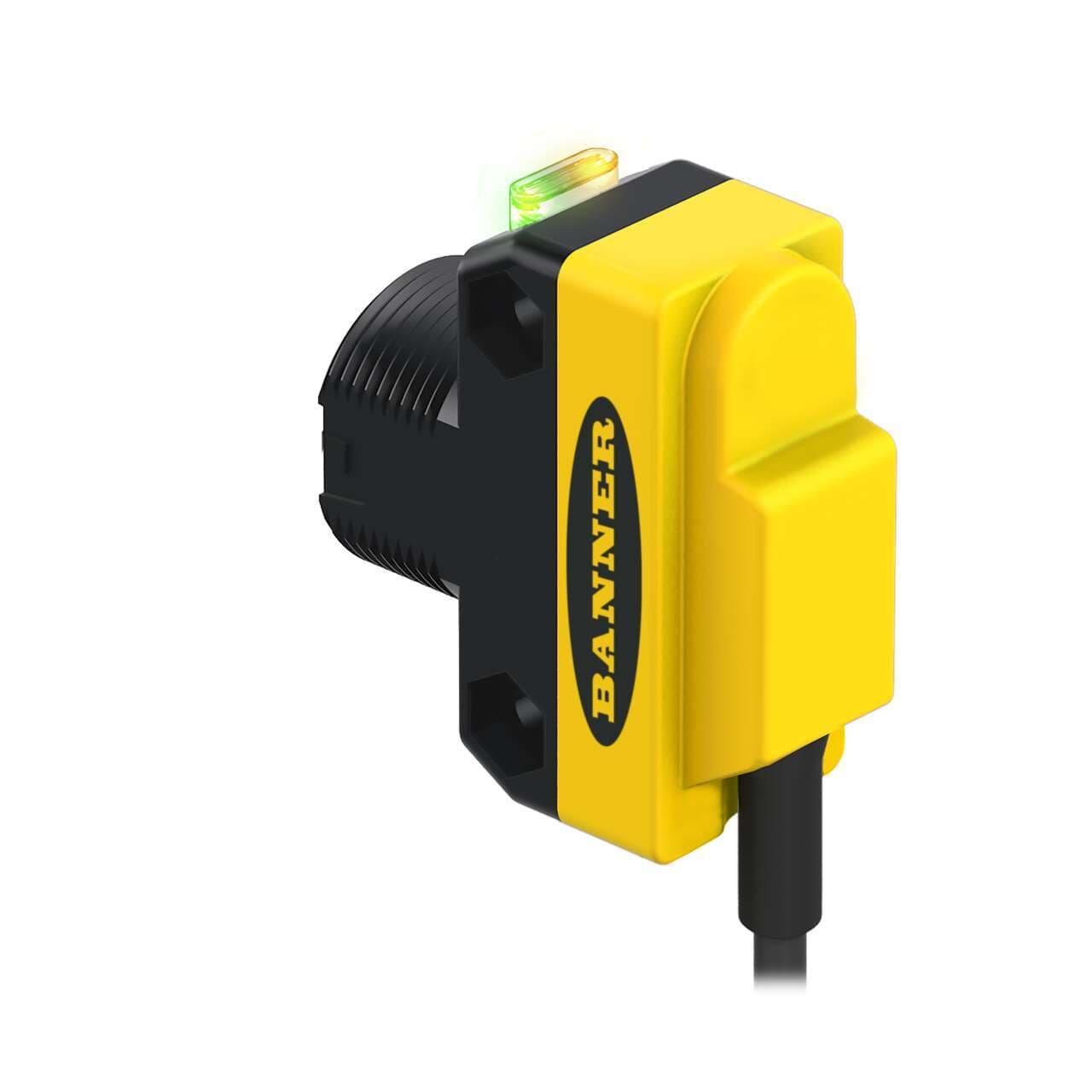

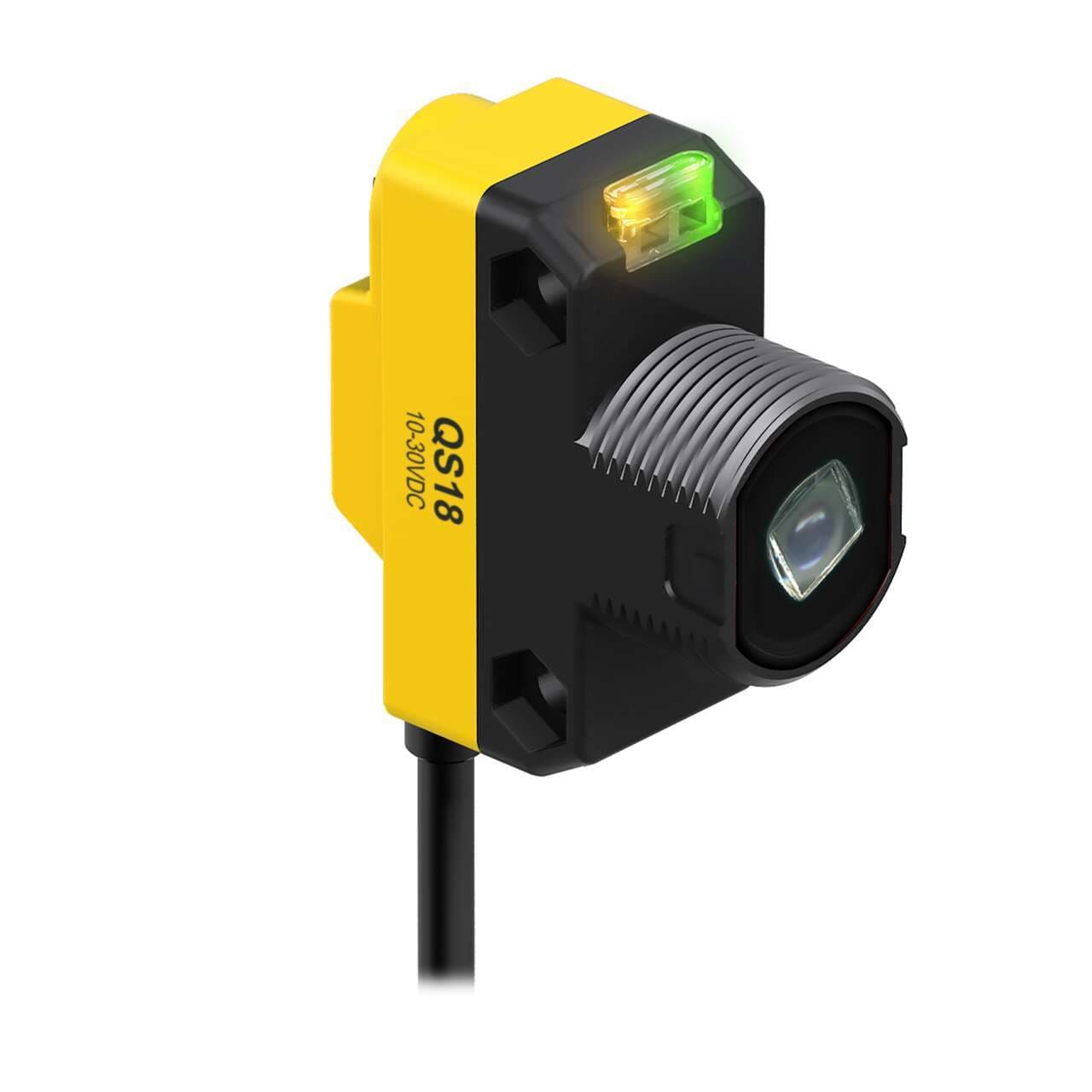

QS186LE211 W/30 Banner Proximity Sensors
Part#:QS186LE211 W/30
Alt. Part#:75961
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Laser Class 2; Vertical Li; Range: 15 m; Input: 10-30 V dc; Output: Not Applicable; 9 m (30 ft) Cable
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Sensing Mode (General) Opposed
- Connection Cable
- Special Feature: Water Detection No
- Power DC
- Max Sensing Distance (mm) 15000
- Min Op. Temp. (°C) -10
- Special Feature: Intrinsically Safe No
- Small Visible Spot Laser
- Max Op. Temp. (°C) 50
- NEMA Rating NEMA 6
- Housing Style Rectangular w/M18 Mount
- Sensing Beam Visible Red Laser
- Delay at Power-up (ms) 10
- Primary Housing Material ABS
- Output response time (ms) N/A
- Lens Material PMMA
- Feature: Chemical Resistant No
- Outputs N/A
- Sensing Beam Wavelength 650
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Quick Disconnect No
- Cable Length (m) 9
- Repeatability (µs) N/A
- Laser Classification Class 2
- Operation N/A
- Barrel Diameter (mm) 18
- Feature: Timing (Hold/Delay) No
- IP Rating IP67
- Feature: Hazardous Area No
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Feature: Audible No
- Number of Pins 4
- Sensing Mode (Detailed) Laser Emitter
- Adjustments N/A
- Quick Disconnect Type No QD
- Indicator LEDs
- IO Link No
- Opposed Mode Emitter/Receiver Emitter
- Feature: Encapsulated No
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS186LE211 W/30 on Powermatic Associates is $228.00. Order now.
About the product
Banner Engineering QS186LE211 W/30 is a Class 2 laser photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50 °C. This sensor is part of the QS186LE series and is characterized by its opposed (vertical) system design. It comes pre-wired with a 30ft / 9m cable that terminates with bare end flying leads, ensuring easy integration into various systems. The QS186LE211 W/30 offers a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. The sensor's housing is made from thermoplastic, and it features a Polymethyl methacrylate (PMMA) lens. It is capable of sensing objects up to 15m away and emits a visible red light with a wavelength of 650 nm.
