QS18EK6EVQ7 Banner Proximity Sensors
Part#:QS18EK6EVQ7
Alt. Part#:807892
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description

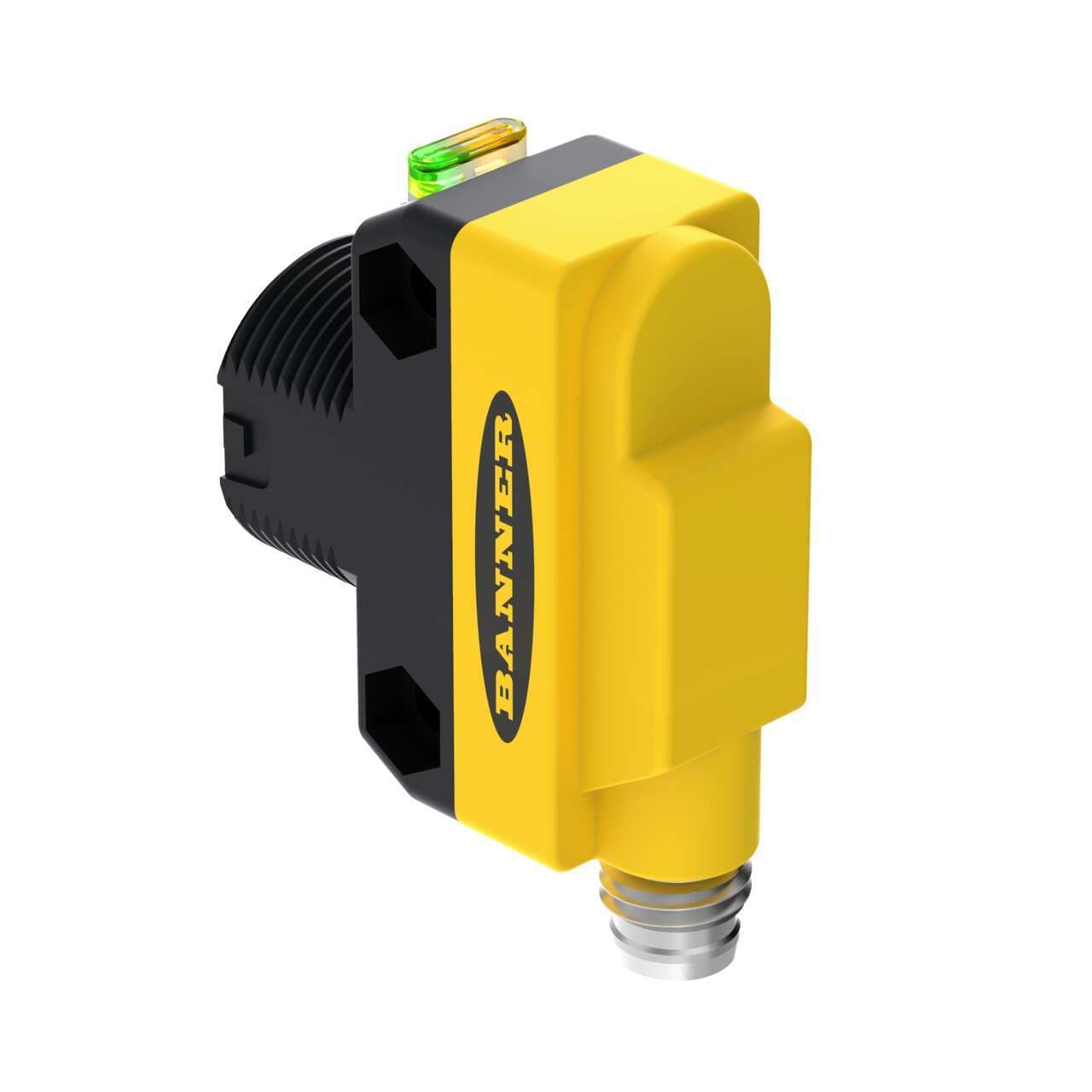

WORLD-BEAM QS18 Series: Visible Red Emitter; Range: 20 m; Input: 10-30 V dc; Output: Not Applicable; M8 Integral QD
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Sensing Mode (General) Opposed
- Special Feature: Intrinsically Safe No
- Number of Pins 4
- Opposed Mode Emitter/Receiver Emitter
- IO Link Yes
- IP Rating IP67
- Adjustments Teach Button
- Max Op. Relative Humidity [%] 95% @ 50°C
- Lens Material Acrylic
- Housing Style Rectangular w/M18 Mount
- Sensing Mode (Detailed) Emitter
- Power Supply/Supply Voltage 10-30 V dc
- Primary Housing Material ABS
- Power DC
- Max Sensing Distance (mm) 20000
- Outputs N/A
- Sensing Beam Visible Red LED
- Output response time (ms) N/A
- Connection Integral QD
- Min Op. Temp. (°C) -20
- Operation N/A
- Quick Disconnect Type M8 (Pico)
- Max Op. Temp. (°C) 70
- Special Feature: Remote Teach No
- Sensing Beam Wavelength 630
- Special Feature: Water Detection No
- Delay at Power-up (ms) 100
- Repeatability (µs) 100
- NEMA Rating NEMA 6
- Indicator LEDs
- Barrel Diameter (mm) 18
- Feature: Hazardous Area No
- Feature: Audible No
- Feature: Timing (Hold/Delay) No
- Feature: Encapsulated No
- Feature: Quick Disconnect Yes
- Feature: Chemical Resistant No
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18EK6EVQ7 on Powermatic Associates is $73.00. Order now.
About the product
Banner Engineering QS18EK6EVQ7 is a photo-electric sensor designed for through-beam system applications, operating in an opposed mode with TEACH mode functionality. This sensor features an M18 threaded mount for secure installation and is pre-equipped with a 4-pin Pico-style M8 connector for straightforward connectivity. It operates within an ambient air temperature range of -20 to +70 degrees Celsius and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. The QS18EK6EVQ7, part of the QS18 series, offers a sensing distance of up to 20 meters and utilizes visible red light with a wavelength of 625 nm for detection. It supports both Light-ON and Dark-ON operating modes for versatile application use. This sensor is powered by a supply voltage ranging from 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and is protected to IP67 and NEMA 6 standards, making it suitable for challenging environments. Additionally, it incorporates IO-Link communication protocol for enhanced device interoperability.
