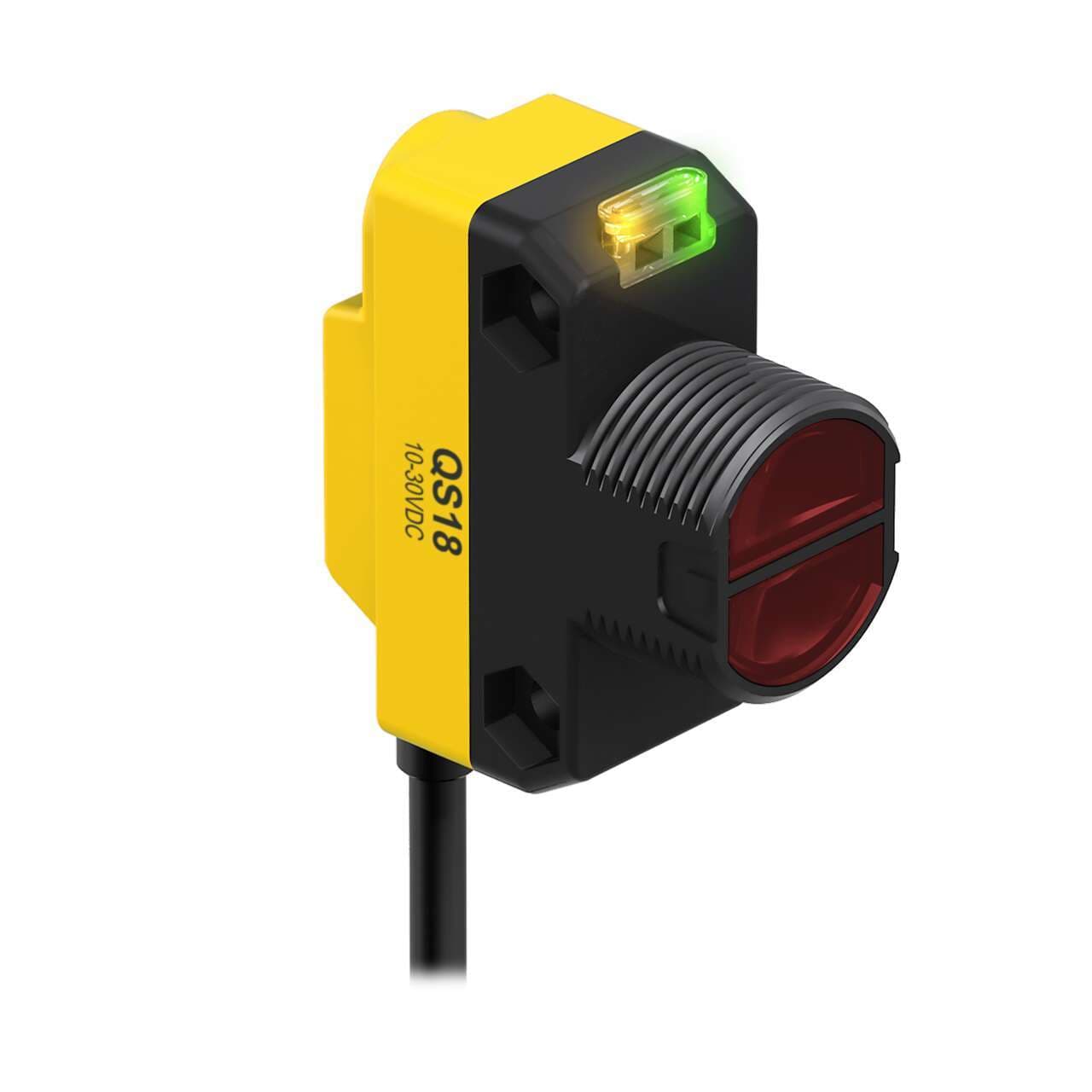

QS18EP6DV W/30 Banner Proximity Sensors
Part#:QS18EP6DV W/30
Alt. Part#:75225
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Diffuse; Range: 600 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 9 m (30 ft) Cable
Product Details
- Weight 20.865232 g
- Country Of Origin US
- Primary Housing Material ABS
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Max Sensing Distance (mm) 600
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- Sensing Mode (General) Proximity
- Connection Cable
- Special Feature: Water Detection No
- Feature: Timing (Hold/Delay) Yes
- DeviceNet No
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach Yes
- Indicator LEDs
- Feature: Audible No
- Min Op. Temp. (°C) -20
- Lens Material PMMA
- Number of Pins 4
- Feature: Chemical Resistant No
- Housing Style Rectangular w/M18 Mount
- Outputs PNP
- Cable Length (m) 9
- Sensing Beam Wavelength 630
- Barrel Diameter (mm) 18
- Feature: Quick Disconnect No
- Sensing Mode (Detailed) Diffuse
- Quick Disconnect Type No QD
- Delay at Power-up (ms) 100
- Adjustments Teach Button
- IO Link No
- Feature: Encapsulated No
- Input/Output Discrete
- Output response time (ms) 0.6
- IP Rating IP67
- Power DC
- Operation Light/Dark Operate
- Repeatability (µs) 75
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18EP6DV W/30 on Powermatic Associates is $121.00. Order now.
About the product

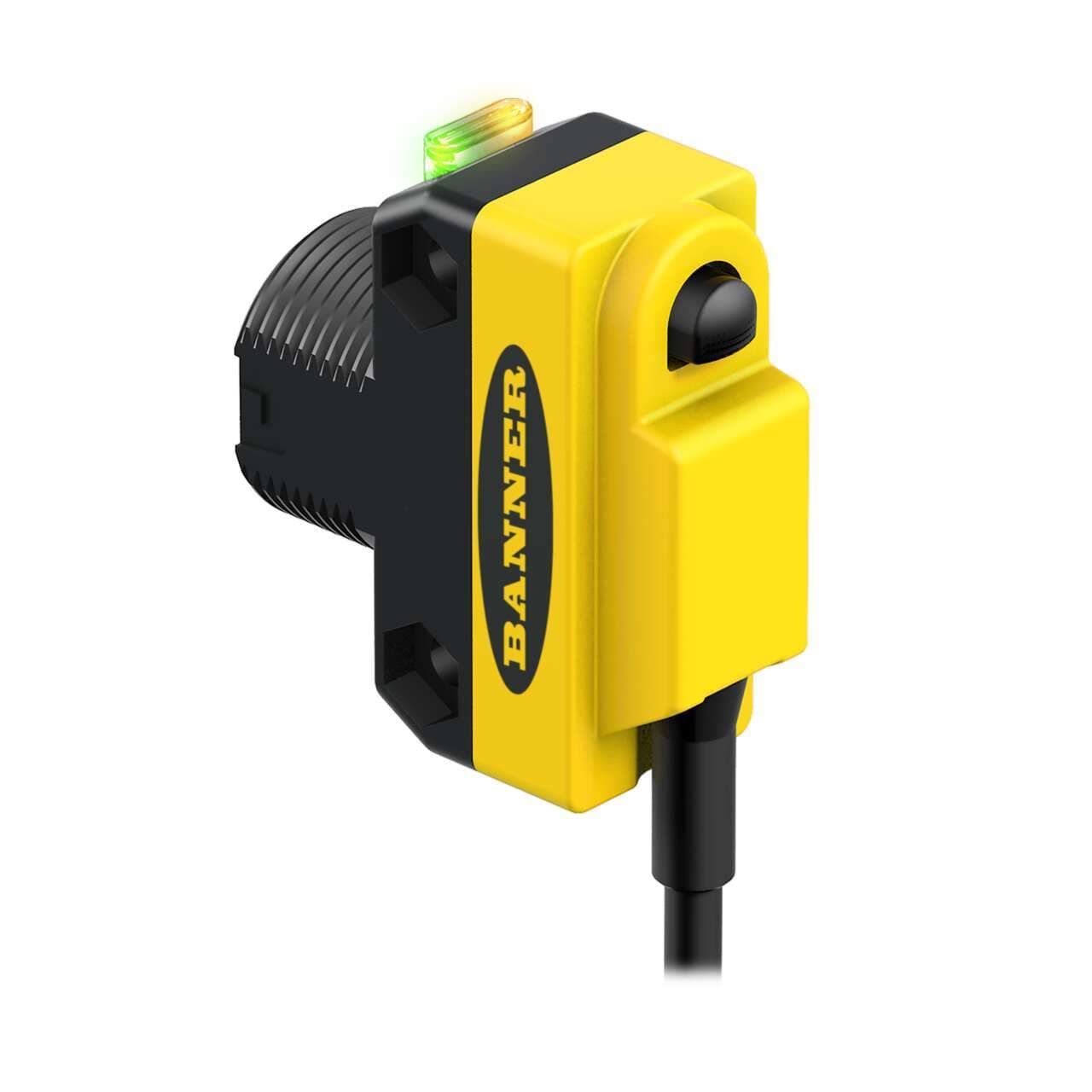

Banner Engineering QS18EP6DV W/30 is a photo-electric sensor from the QS18 Expert series, designed with a diffuse mode TEACH mode for versatile applications. It features an M18 threaded mount for secure installation and is equipped with a pre-wired 30ft / 9m cable terminated with bare end flying leads for easy connection. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a thermoplastic casing with a Polymethyl methacrylate (PMMA) lens, ensuring durability. It offers a sensing distance of up to 600mm and utilizes visible red light for detection. The QS18EP6DV W/30 supports both Light-ON and Dark-ON operating modes, includes a single digital output (PNP transistor), and boasts a rapid response time of 0.6ms / 0.0006 s. It is designed to work with a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is protected to IP67 NEMA 6 standards, making it suitable for a wide range of industrial environments.
