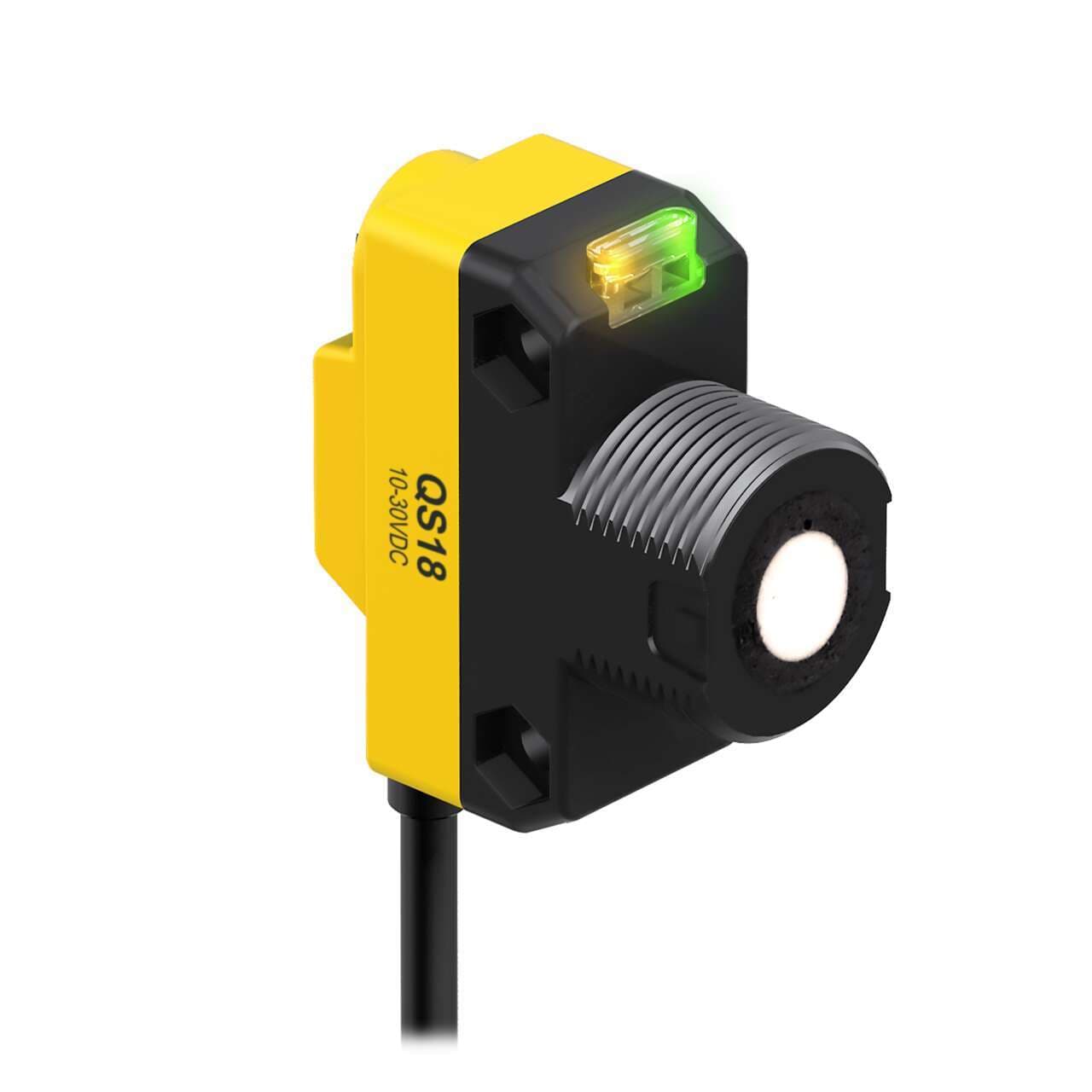

QS18UNAE W/30 Banner Ultrasonic Sensors
Part#:QS18UNAE W/30
Alt. Part#:74234
Manufacturer:Banner
Category:Ultrasonic Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18U: Ultrasonic TEACH mode; Range: 50-500 mm; Input: 12-30 V dc; Output: NPN; Epoxy-encapsulated; 9 m (30 ft) Cable
Product Details
- Weight 208.65232 g
- Country Of Origin CN
- Sensing Mode (General) Proximity
- Input/Output Discrete
- Max Sensing Distance (mm) 500
- Power DC
- Analog Resolution/Discrete Repeatability 0.7
- Adjustments Remote Teach
- Output Protection Protected against short circuit conditions
- Max Op. Relative Humidity Non-Condensing (%) 100
- Min Operating Temperature (°C) -20
- Discrete Output Hysteresis (mm) 1.4
- Power/Current Consumption (exclusive of load) 25 mA max
- Application: Ultrasonic Yes
- Cable Length (m) 9
- PC Configurable No
- Quick Disconnect Type No QD
- Indicator LED(s)
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Temperature Effect (mm/°C) +/- 0.05% of sensing distance/°C from 0 °C to +60 °C, +/- 1% of sensing distance/°C from -20 °C to 0 °C
- IP Rating IP68
- Max Operating Temperature (°C) 60
- Max Measurement Range >100 mm - <=500 mm
- Connection Flying Leads
- Number of Pins 4
- NEMA Rating NEMA 6P
- Feature: Chemical Resistant No
- Profibus No
- Feature: Timing (Hold/Delay) No
- Discrete (Switched) Outputs 1 NPN
- Minimum Window Size (mm) 5
- Common Ethernet Protocol No
- 1-wire Serial Interface No
- Primary Housing Material ABS
- Delay at Power-up (ms) 300
- Output Saturation Voltage PNP Outputs < 2.0 V at 100 mA
- Rep Rate (ms) 7.5
- Max Off-state Leakage Current (µA) NPN: < 10; PNP: < 5
- PROFINET No
- Sensing Beam Ultrasonic
- Housing Style Rectangular w/M18 Mount
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Storage Temperature (°C) -40 to 85
- Barrel Diameter (mm) 18
- RS-422 No
- Sensing Mode (Detailed) Time of Flight
- Power Supply 12-30 V dc
- Max Discrete (Switched) Output (mA) 100
- Warm-up Time (minutes) 5
- Ultrasonic Frequency (kHz) 300
- SSI No
- Device Type Sensor
- Minimum Sensing Distance (mm) 50
- Output Saturation Voltage NPN Outputs < 1.6 V at 100 mA
- Minimum Response Time (ms) 15
- Feature: Clear Object Detection Yes
- IO Link No
- Wireless No
- RS-485 No
- RS-232 No
- Feature: Remote Teach Yes
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18UNAE W/30 on Powermatic Associates is $202.00. Order now.
About the product
Banner Engineering QS18UNAE W/30 is an ultrasonic distance sensor belonging to the QS18U series. It features an M18 threaded mount and operates within an ambient air temperature range of -20 to +60°C. This sensor is designed with a time-of-flight system and includes a remote IP68 / NEMA 6 TEACH button. It comes pre-wired with a 30ft / 9m cable terminated with bare end flying leads for connectivity. The QS18UNAE W/30 offers a degree of protection rated at IP68 NEMA 6P and requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal. Its rectangular shape is constructed from ABS housing, and it operates at a 300kHz transmission frequency. The sensing distance ranges from 50 to 500mm, and it includes 1 x digital output (NPN transistor) for signaling. Additionally, it is equipped with protection functions against short-circuits.
