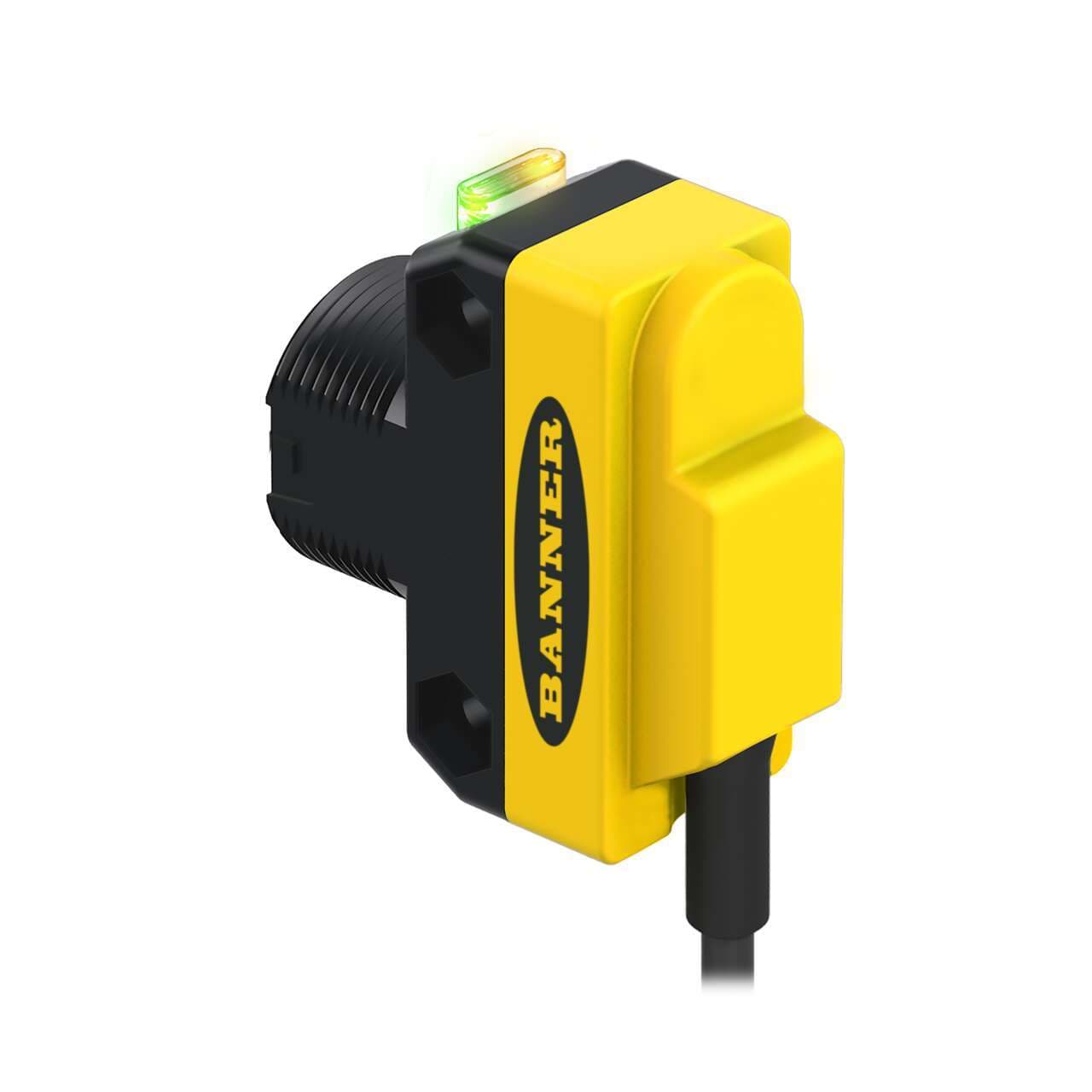

QS18UNAEQ Banner Ultrasonic Sensors

Product Details

• Weight
  68.0388 g
• Country Of Origin
  CN
• Sub-range name
  QS18U series
• Thread size
  M18
• Emission frequency
  300kHz
• Main function
  Sensor (Distance)
• Sensing distance
  50...500mm
• Ambient air temperature for operation
  -20...+60 °C
• Primary brand
  Banner Engineering
• Functions
  Ultrasonic distance sensor green LED (power ON) yellow LED (output state) remote IP68 / NEMA 6 TEACH btn.
• Connection type
  Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
• Mounting mode
  Threaded mount
• Supply voltage (DC)
  12Vdc-30Vdc (24Vdc nom.)
• Shape
  Rectangular
• Digital outputs
  1 x digital output (NPN transistor)
• Protection functions
  Short-circuit
• Order code / Manufacturer SKU
  73164
• Product series / family name
  WORLD-BEAM series
• Design
  time-of-flight system
• Material
  ABS housing
Degree of protection
IP68 NEMA 6P
Cable Length (m)
0.15
Connection
Pigtail QD
NEMA Rating
NEMA 6P
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Ultrasonic Frequency (kHz)
300
RS-232
No
Device Type
Sensor
Power Supply
12-30 V dc
Temperature Effect (mm/°C)
+/- 0.05% of sensing distance/°C from 0 °C to +60 °C, +/- 1% of sensing distance/°C from -20 °C to 0 °C
Max Operating Temperature (°C)
60
Max Off-state Leakage Current (µA)
NPN: < 10; PNP: < 5
IO Link
No
PC Configurable
No
Minimum Sensing Distance (mm)
50
Storage Temperature (°C)
-40 to 85
Rep Rate (ms)
7.5
Feature: Remote Teach
Yes
RS-485
No
Sensing Mode (Detailed)
Time of Flight
Max Sensing Distance (mm)
500
IP Rating
IP68
Minimum Response Time (ms)
15
Feature: Clear Object Detection
Yes
Max Measurement Range
>100 mm - <=500 mm
Analog Resolution/Discrete Repeatability
0.7
Max Discrete (Switched) Output (mA)
100
Barrel Diameter (mm)
18
PROFINET
No
SSI
No
Delay at Power-up (ms)
300
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Min Operating Temperature (°C)
-20
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Housing Style
Rectangular w/M18 Mount
Quick Disconnect Type
M8 (Pico)
Discrete (Switched) Outputs
1 NPN
Warm-up Time (minutes)
5
Feature: Timing (Hold/Delay)
No
Wireless
No
Sensing Mode (General)
Proximity
Primary Housing Material
ABS
Number of Pins
4
Output Saturation Voltage PNP Outputs
< 2.0 V at 100 mA
Discrete Output Hysteresis (mm)
1.4
Power
DC
Input/Output
Discrete
Adjustments
Remote Teach
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Max Op. Relative Humidity Non-Condensing (%)
100
Power/Current Consumption (exclusive of load)
25 mA max
Sensing Beam
Ultrasonic
Indicator
LED(s)
Output Protection
Protected against short circuit conditions
Minimum Window Size (mm)
5
Common Ethernet Protocol
No
Profibus
No
Application: Ultrasonic
Yes
RS-422
No
1-wire Serial Interface
No
Feature: Chemical Resistant
No
