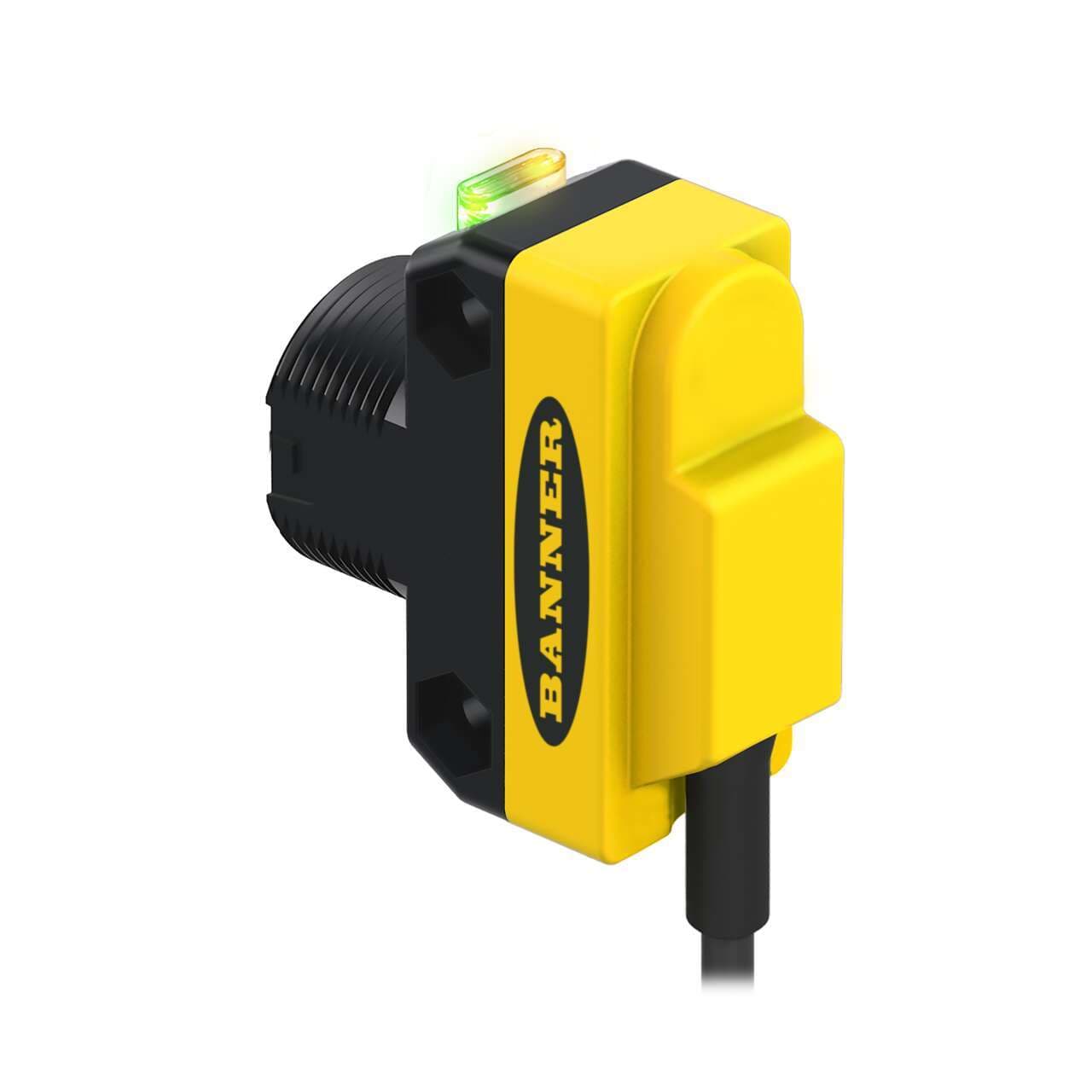

QS18UPAEQPMA Banner Ultrasonic Sensors

Product Details

• Weight
  68.0388 g
• Country Of Origin
  CN
• Main function
  Sensor (Distance)
• Sensing distance
  50...500mm
• Connection type
  Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
• Material
  ABS housing PUR pigtail
• Supply voltage (DC)
  12Vdc-30Vdc (24Vdc nom.)
• Sub-range name
  QS18U series
• Thread size
  M18
• Primary brand
  Banner Engineering
• Design
  time-of-flight system
• Functions
  Ultrasonic distance sensor green LED (power ON) yellow LED (output state) remote IP68 / NEMA 6 TEACH btn.
• Product series / family name
  WORLD-BEAM series
• Shape
  Rectangular
• Mounting mode
  Threaded mount
• Order code / Manufacturer SKU
  73173
• Digital outputs
  1 x digital output (PNP transistor)
• Degree of protection
  IP68 NEMA 6P
• Ambient air temperature for operation
  -20...+60 °C
• Emission frequency
  300kHz
Protection functions
Short-circuit
Cable Length (m)
0.15
Analog Resolution/Discrete Repeatability
0.7
Temperature Effect (mm/°C)
+/- 0.05% of sensing distance/°C from 0 °C to +60 °C, +/- 1% of sensing distance/°C from -20 °C to 0 °C
IP Rating
IP68
PC Configurable
No
Indicator
LED(s)
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Min Operating Temperature (°C)
-20
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Sensing Mode (General)
Proximity
Sensing Beam
Ultrasonic
Delay at Power-up (ms)
300
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Max Op. Relative Humidity Non-Condensing (%)
100
IO Link
No
PROFINET
No
Sensing Mode (Detailed)
Time of Flight
Max Sensing Distance (mm)
500
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Storage Temperature (°C)
-40 to 85
Ultrasonic Frequency (kHz)
300
Common Ethernet Protocol
No
Discrete Output Hysteresis (mm)
1.4
Application: Ultrasonic
Yes
Device Type
Sensor
Minimum Sensing Distance (mm)
50
Number of Pins
4
Output Protection
Protected against short circuit conditions
Barrel Diameter (mm)
18
Feature: Timing (Hold/Delay)
No
1-wire Serial Interface
No
Primary Housing Material
ABS
Adjustments
Remote Teach
Max Discrete (Switched) Output (mA)
100
Minimum Response Time (ms)
15
Power/Current Consumption (exclusive of load)
25 mA max
Feature: Chemical Resistant
No
Profibus
No
Max Measurement Range
>100 mm - <=500 mm
Quick Disconnect Type
M12 (Euro)
Output Saturation Voltage PNP Outputs
< 2.0 V at 100 mA
Warm-up Time (minutes)
5
Feature: Remote Teach
Yes
SSI
No
Power
DC
Input/Output
Discrete
Power Supply
12-30 V dc
Discrete (Switched) Outputs
1 PNP
Rep Rate (ms)
7.5
Feature: Clear Object Detection
Yes
RS-485
No
Housing Style
Rectangular w/M18 Mount
Connection
Pigtail QD
NEMA Rating
NEMA 6P
Max Operating Temperature (°C)
60
Max Off-state Leakage Current (µA)
PNP: < 5
Wireless
No
Minimum Window Size (mm)
5
RS-232
No
RS-422
No
