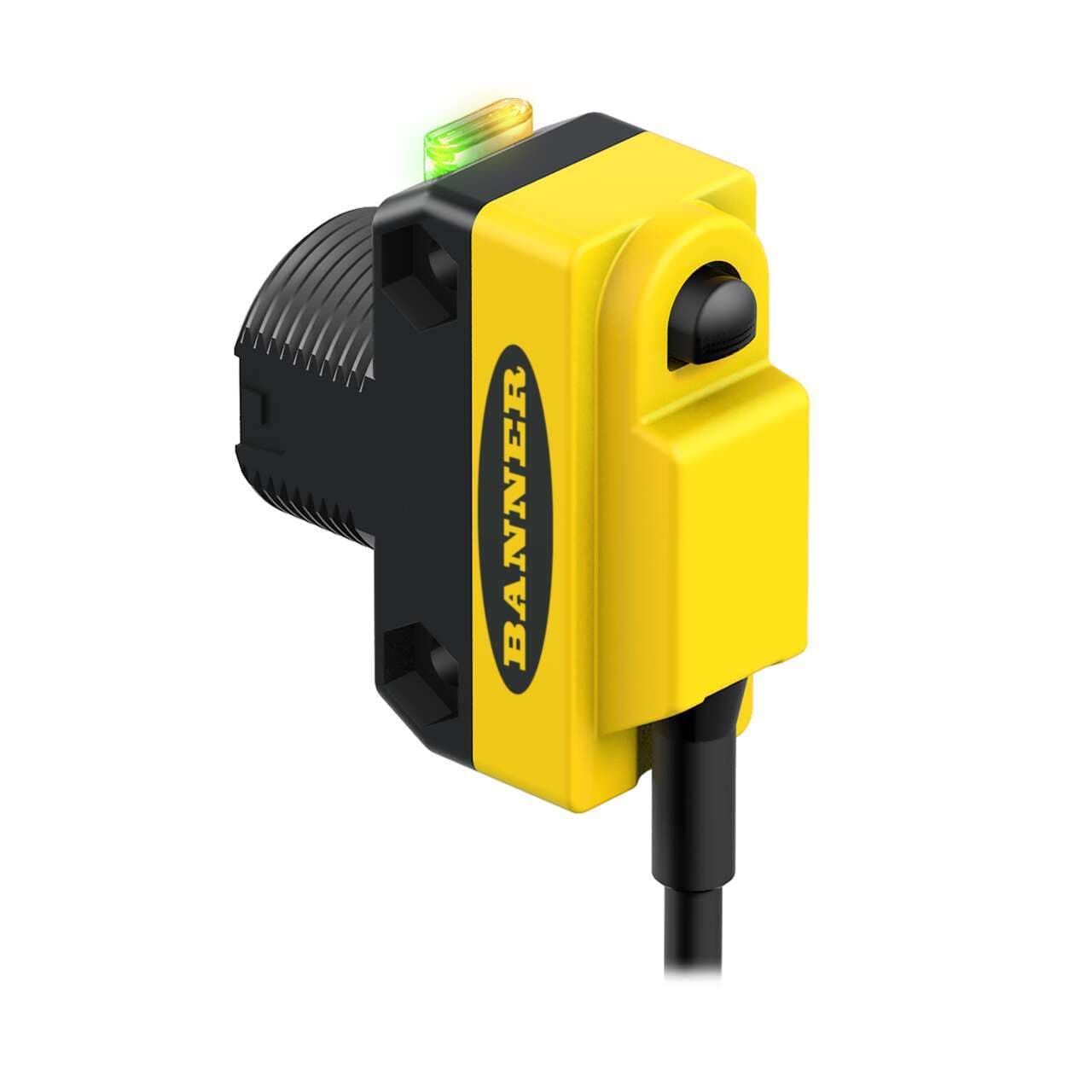

QS18UPAQPMA Banner Ultrasonic Sensors

Product Details

• Weight
  90.7184 g
• Country Of Origin
  CN
• Product series / family name
  WORLD-BEAM series
• Sensing distance
  50...500mm
• Mounting mode
  Threaded mount
• Main function
  Sensor (Distance)
• Supply voltage (DC)
  12Vdc-30Vdc (24Vdc nom.)
• Primary brand
  Banner Engineering
• Connection type
  Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
• Material
  ABS housing PUR pigtail
• Sub-range name
  QS18U series
• Design
  time-of-flight system
• Digital outputs
  1 x digital output (PNP transistor)
• Functions
  Ultrasonic distance sensor green LED (power ON) yellow LED (output state) TEACH mode
• Shape
  Rectangular
• Order code / Manufacturer SKU
  73172
• Thread size
  M18
• Degree of protection
  IP67 NEMA 6P
• Protection functions
  Short-circuit
• Ambient air temperature for operation
  -20...+60 °C
Emission frequency
300kHz
Sensing Mode (Detailed)
Time of Flight
Power Supply
12-30 V dc
Max Discrete (Switched) Output (mA)
100
Warm-up Time (minutes)
5
Feature: Remote Teach
Yes
SSI
No
Sensing Beam
Ultrasonic
Primary Housing Material
ABS
Adjustments
Teach Button
Output Saturation Voltage PNP Outputs
< 2.0 V at 100 mA
Barrel Diameter (mm)
18
Feature: Chemical Resistant
No
Device Type
Sensor
Quick Disconnect Type
M12 (Euro)
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
NEMA Rating
NEMA 6P
Discrete Output Hysteresis (mm)
1.4
Common Ethernet Protocol
No
Sensing Mode (General)
Proximity
Minimum Sensing Distance (mm)
50
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Max Op. Relative Humidity Non-Condensing (%)
100
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Minimum Window Size (mm)
5
Application: Ultrasonic
Yes
Profibus
No
PC Configurable
No
Connection
Pigtail QD
Temperature Effect (mm/°C)
+/- 0.05% of sensing distance/°C from -20 °C to +50 °C, +/- 0.1% of sensing distance/°C from +50 °C to +60 °C
IP Rating
IP67
Max Off-state Leakage Current (µA)
PNP: < 5
RS-232
No
Housing Style
Rectangular w/M18 Mount
Max Sensing Distance (mm)
500
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Max Operating Temperature (°C)
60
Power/Current Consumption (exclusive of load)
25 mA max
PROFINET
No
Cable Length (m)
0.15
Indicator
LED(s)
Number of Pins
4
Min Operating Temperature (°C)
-20
Ultrasonic Frequency (kHz)
300
IO Link
No
Max Measurement Range
>100 mm - <=500 mm
Analog Resolution/Discrete Repeatability
0.7
Discrete (Switched) Outputs
1 PNP
Rep Rate (ms)
7.5
Feature: Timing (Hold/Delay)
No
RS-422
No
Power
DC
Input/Output
Discrete
Delay at Power-up (ms)
300
Output Protection
Protected against short circuit conditions
Minimum Response Time (ms)
15
Feature: Clear Object Detection
Yes
Wireless
No
1-wire Serial Interface
No
RS-485
No
