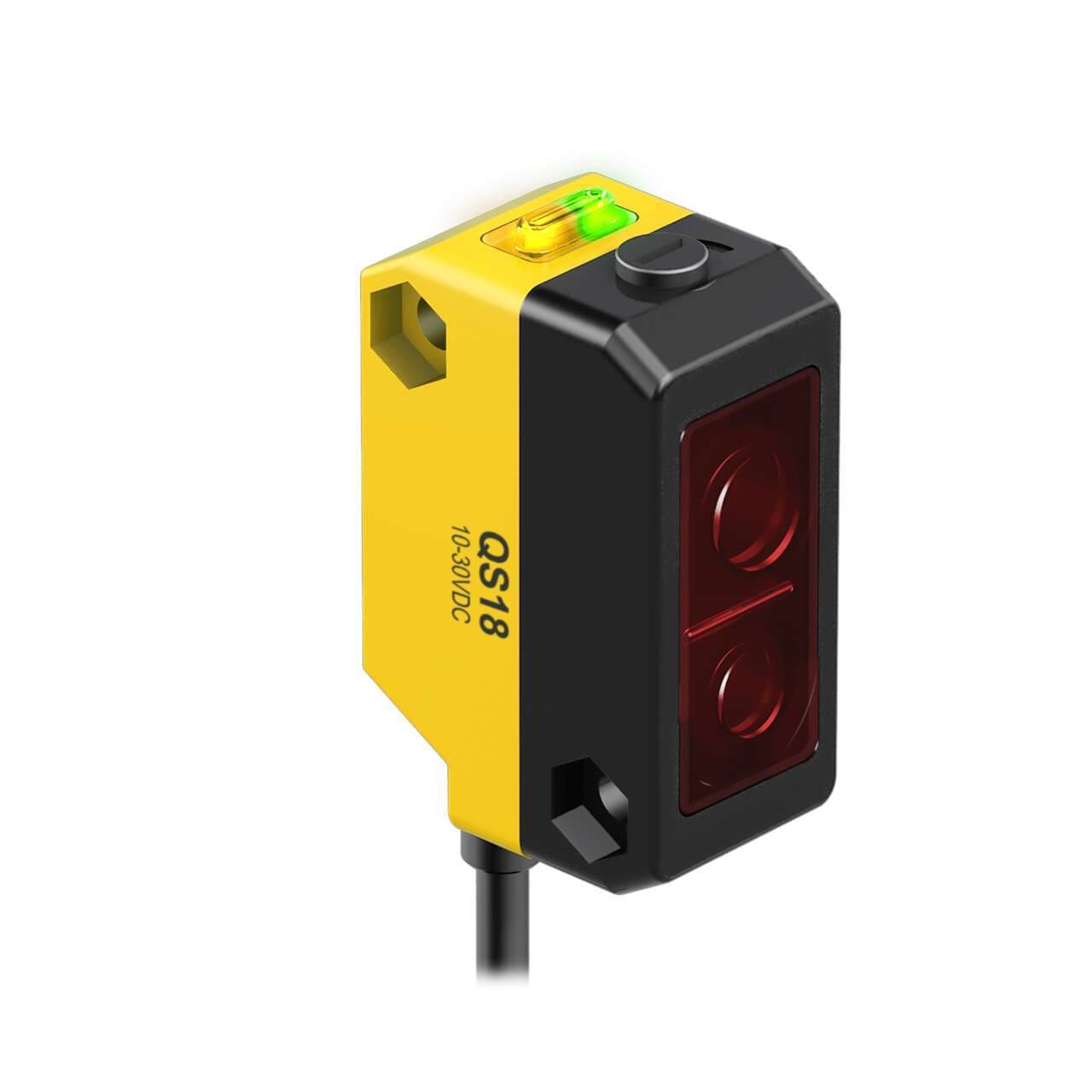

QS18VN6AF350 Banner Proximity Sensors
Part#:QS18VN6AF350
Alt. Part#:808870
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM: Adjustable Field Background Suppression; Cutoff Adjustment Range: 30 to 350 mm; Input: 10-30 V dc; Outputs: Complementary NPN; 2 m (6.5 ft) Cable
Product Details
- Weight 52.99995724 g
- Country Of Origin CN
- Sensing Mode (General) Proximity
- Special Feature: Intrinsically Safe No
- Repeatability (µs) 250
- Feature: Encapsulated No
- Housing Style Rectangular
- Connection Cable
- Special Feature: Remote Teach No
- Adjustments Mechanical Screw
- Sensing Beam Wavelength 640
- Lens Material Acrylic
- IO Link No
- Input/Output Discrete
- Outputs NPN
- Primary Housing Material ABS
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Barrel Diameter (mm) N/A
- DeviceNet No
- Cable Length (m) 2
- Delay at Power-up (ms) 200
- Indicator LEDs
- Min Op. Temp. (°C) -20
- Power DC
- Max Op. Temp. (°C) 55
- Number of Pins 4
- Opposed Mode Emitter/Receiver N/A
- Quick Disconnect Type No QD
- Max Sensing Distance (mm) 350
- IP Rating IP67
- Feature: Timing (Hold/Delay) Yes
- Sensing Beam Visible Red LED
- NEMA Rating NEMA 6
- Operation Light/Dark Operate
- Feature: Audible No
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Output response time (ms) 2.5
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6AF350 on Powermatic Associates is $116.00. Order now.
About the product
Banner Engineering QS18VN6AF350 is an adjustable-field photo-electric sensor designed for precise detection tasks. It operates within an ambient air temperature range of -20 to +55 °C and features a background suppression system with mechanical screw adjustment for fine-tuning. This sensor is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy installation. It belongs to the QS18..AF mechanically adjustable background suppression series and offers a high degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The QS18VN6AF350 operates on a supply voltage range of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from an ABS housing with an Acrylic lens, ensuring durability. The sensing distance is 350mm, and it utilizes visible red light for detection. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (NPN transistor; complementary NO/NC) for versatile signaling. The response time is quick at 2.5ms / 0.0025 s, allowing for rapid detection in automated processes.
