QS18VN6AFF40Q5 Banner Electronic Components

QS18VN6AFF40Q5 on Powermatic Associates
Banner

Part#:QS18VN6AFF40Q5

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

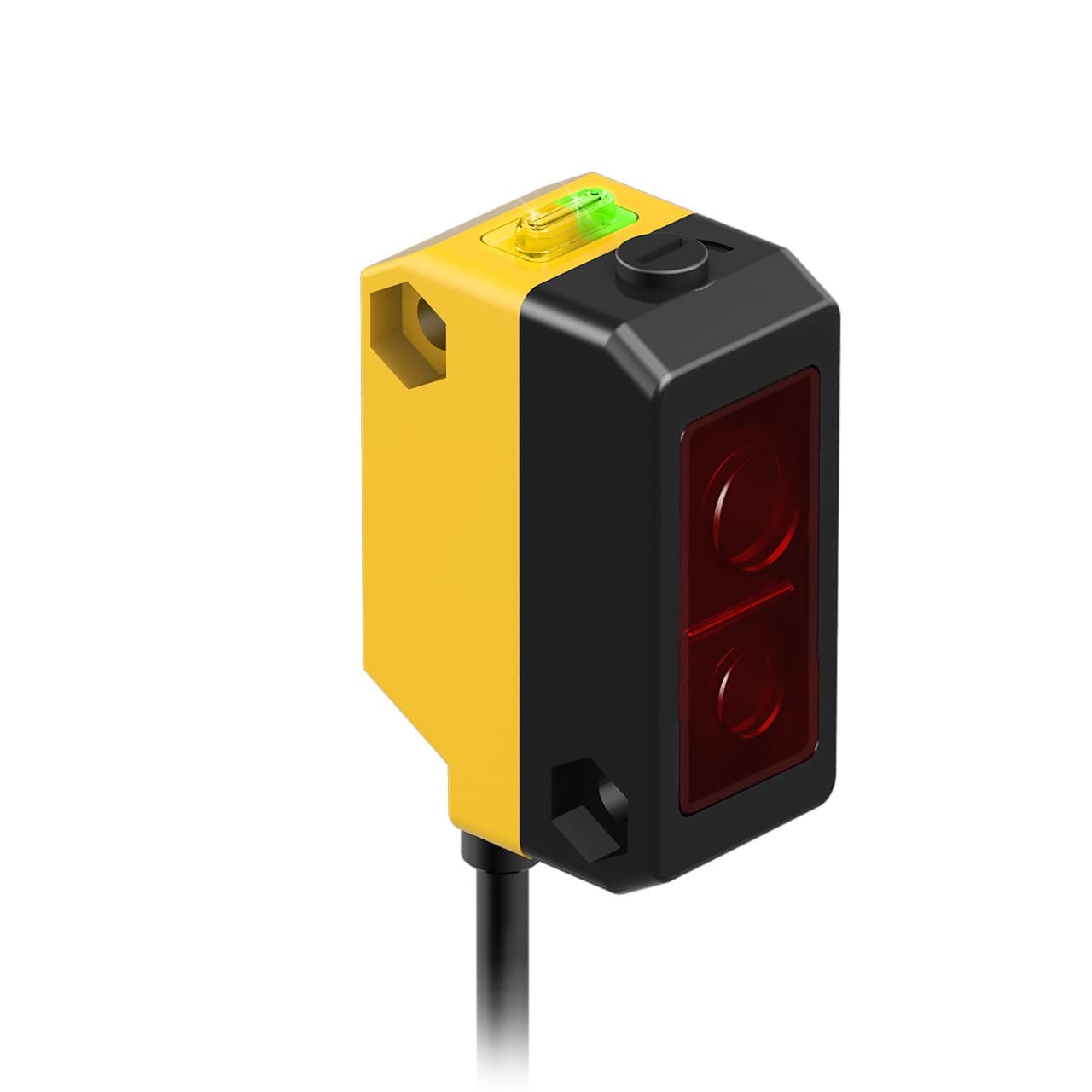

Banner Engineering QS18VN6AFF40Q5 is a sensor with an adjustable-field photo-electric function designed for a variety of applications. It operates within an ambient air temperature range of -20 to +55 °C and features a foreground suppression system with screw adjustment for precise control. This sensor is pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Euro-style M12 connector, fitting into the QS18AFF40 mechanically adjustable foreground suppression series. It boasts an IP67 NEMA 6 degree of protection, ensuring durability in harsh environments. The supply voltage requirement is 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, housed in a rectangular, thermoplastic body with an acrylic lens. The sensing distance ranges from 15 to 40mm, utilizing visible red light for detection. It offers Light-ON and Dark-ON operating modes, alongside a digital output (NPN transistor; complementary NO/NC) and a quick response time of 2.5ms / 0.0025 s.

Product Details

  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Operating mode
    Light-ON Dark-ON
  • Degree of protection
    IP67 NEMA 6
  • Product series / family name
    WORLD-BEAM series
  • Light Color
    Visible red
  • Compliant with standard(s)
    cURus CE
  • Sub-range name
    QS18AFF40 mechanically adustable foreground suppression series
  • Shape
    Rectangular
  • Ambient air temperature for operation
    -20...+55 °C
  • Main function
    Sensor (Photo-electric)
  • Design
    foreground suppression system
  • Digital outputs
    1 x digital output (NPN transistor)
  • Material
    thermoplastic housing Acrylic lns.
  • Sensing distance
    15...40mm
  • Response time
    2.5ms / 0.0025 s
  • Order code / Manufacturer SKU
    12182
  • Functions
    Adjustable-field photo-electric sensor green LED (power ON) yellow LED (light sensed) screw adjustment
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
  • IP Rating
    IP67
  • Input/Output
    Discrete
  • Min Op. Temp. (°C)
    -20
  • Max Op. Temp. (°C)
    55
  • Quick Disconnect Type
    M12 (Euro)
  • Special Feature: Water Detection
    No
  • Small Visible Spot
    LED
  • Housing Style
    Rectangular
  • NEMA Rating
    NEMA 6
  • Adjustments
    Mechanical Screw
  • Feature: Quick Disconnect
    Yes
  • IO Link
    No
  • Max Sensing Distance (mm)
    40
  • Power Supply/Supply Voltage
    10-30 V dc
  • Operation
    Light/Dark Operate
  • Sensing Beam Wavelength
    630
  • Number of Pins
    4
  • Lens Material
    Acrylic
  • Feature: Timing (Hold/Delay)
    No
  • DeviceNet
    No
  • Sensing Mode (Detailed)
    Foreground Suppression (Adjustable)
  • Output response time (ms)
    2.5
  • Repeatability (µs)
    250
  • Feature: Encapsulated
    No
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Feature: Hazardous Area
    No
  • Power
    DC
  • Sensing Mode (General)
    Proximity
  • Special Feature: Intrinsically Safe
    No
  • Sensing Beam
    Visible Red LED
  • Outputs
    NPN
  • Special Feature: Remote Teach
    No
  • Indicator
    LEDs
  • Feature: Chemical Resistant
    No
  • Primary Housing Material
    ABS
  • Connection
    Pigtail QD
  • Delay at Power-up (ms)
    200
  • Barrel Diameter (mm)
    N/A
  • Feature: Audible
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QS18VN6AFF40Q5 Related Documents

QS18 Mechanically Adjustable Foreground Suppression Sensors (15-40mm) -- Datasheet-1630952058288.pdf
