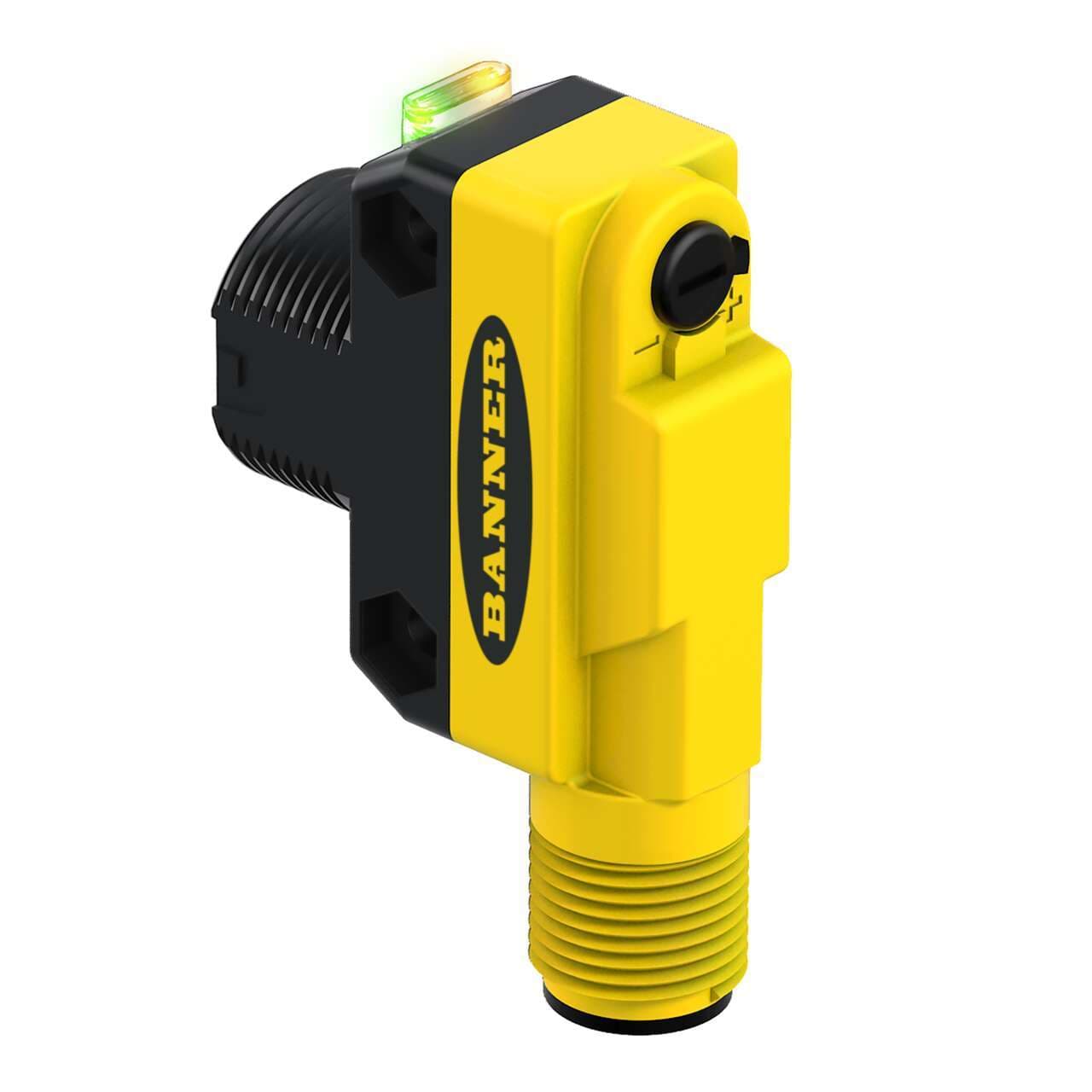

QS18VN6DLQ8 Banner Proximity Sensors
Part#:QS18VN6DLQ8
Alt. Part#:800766
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Diffuse; Range: 600 mm; Input: 10-30 V dc; Output: Complementary Solid-State NPN; M12 Integral QD
Product Details
- Weight 90.7184 g
- Country Of Origin MX
- Sub-range name QS18 series
- Design diffuse mode
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Degree of protection IP67 NEMA 6
- Product series / family name WORLD-BEAM series
- Functions Photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Shape Rectangular
- Material thermoplastic housing Acrylic lns.
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Light Color Infrared (IR)
- Thread size M18
- Digital outputs 1 x digital output (NPN transistor)
- Primary brand Banner Engineering
- Sensing distance 600mm
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) cURus CE
- Main function Sensor (Photo-electric)
- Wavelength 940 nm
- Mounting mode Threaded mount
- Response time 0.85ms / 0.00085 s
- Order code / Manufacturer SKU 800766
- Ambient air temperature for operation -20...+70 °C
- Housing Style Rectangular w/M18 Mount
- Connection Integral QD
- Number of Pins 4
- Feature: Audible No
- Sensing Mode (Detailed) Diffuse
- Max Op. Temp. (°C) 70
- Delay at Power-up (ms) 100
- Feature: Encapsulated No
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 600
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Quick Disconnect Yes
- Outputs NPN
- Special Feature: Water Detection No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Power DC
- Quick Disconnect Type M12 (Euro)
- Special Feature: Remote Teach No
- Adjustments Potentiometer
- Feature: Chemical Resistant No
- Sensing Beam Infrared LED
- Operation Light/Dark Operate
- Repeatability (µs) 90
- Indicator LEDs
- Input/Output Discrete
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 940
- Barrel Diameter (mm) 18
- DeviceNet No
- Primary Housing Material ABS
- Output response time (ms) 0.85
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6DLQ8 on Powermatic Associates is $90.00. Order now.
About the product
Banner Engineering QS18VN6DLQ8 is a photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and is equipped with a diffuse mode potentiometer adjustment for precise sensitivity control. This sensor comes pre-equipped with a 4-pin Euro-style M12 connector, ensuring easy and reliable connection. Part of the QS18 series, it boasts an IP67 NEMA 6 degree of protection, making it suitable for challenging environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, ensuring durability. The QS18VN6DLQ8 offers a sensing distance of up to 600mm and utilizes infrared light with a wavelength of 940 nm for detection. It supports both Light-ON and Dark-ON operating modes for flexible application use and features a digital output (NPN transistor; complementary NO/NC) with a rapid response time of 0.85ms / 0.00085 s.
