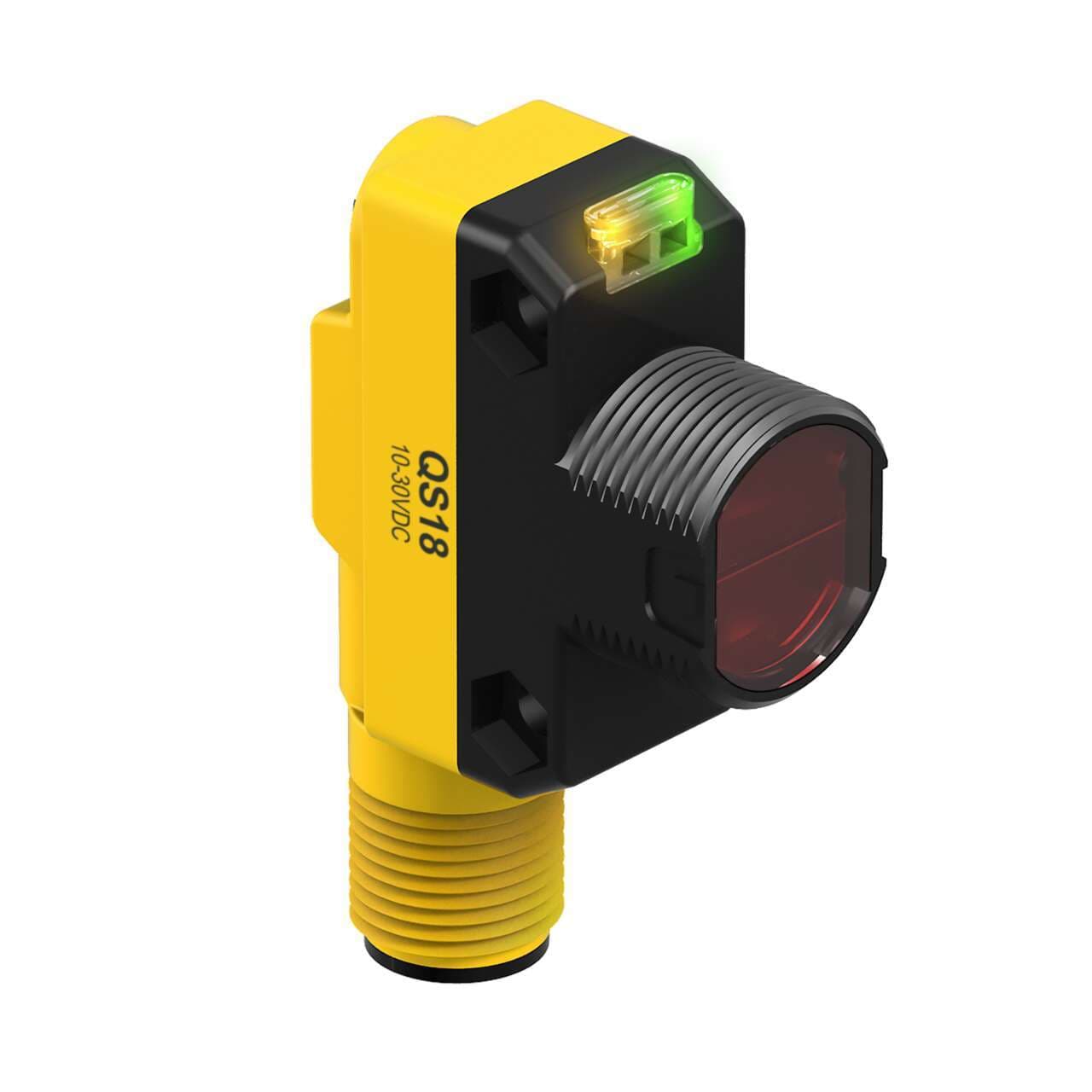

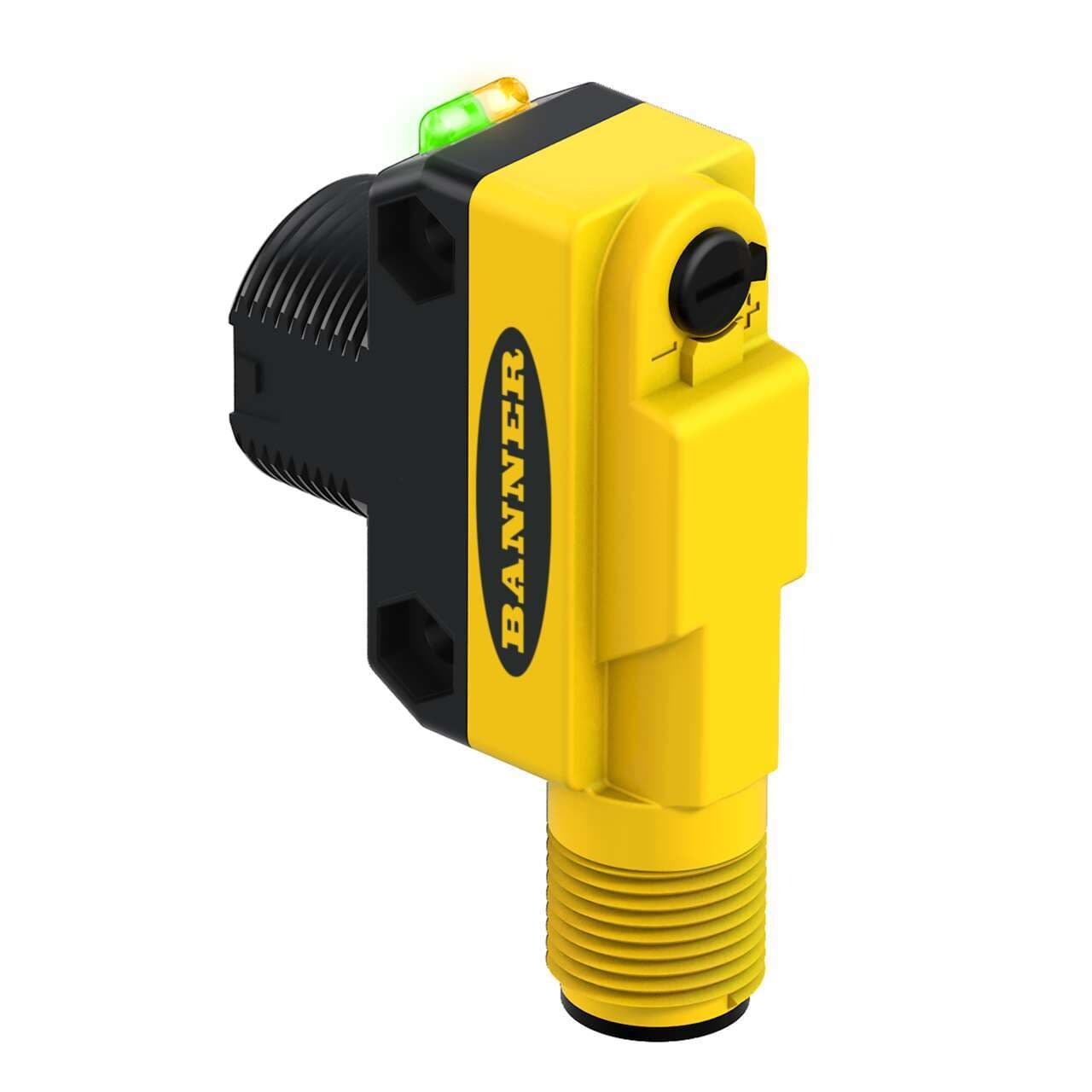

QS18VP6AF120Q7 Banner Proximity Sensors
Part#:QS18VP6AF120Q7
Alt. Part#:805182
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM: Adjustable Field; Range: 120 mm; Input: 10-30 V dc; Outputs: Complementary PNP; M8 Integral QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Sensing Mode (General) Proximity
- Housing Style Rectangular w/M18 Mount
- Input/Output Discrete
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Lens Material Acrylic
- Feature: Quick Disconnect Yes
- Feature: Audible No
- Primary Housing Material ABS
- Output response time (ms) 2.8
- Delay at Power-up (ms) 200
- Feature: Encapsulated No
- NEMA Rating NEMA 6
- Power DC
- Operation Light/Dark Operate
- Adjustments Potentiometer
- Feature: Timing (Hold/Delay) No
- Connection Integral QD
- Max Op. Temp. (°C) 60
- IP Rating IP67
- Feature: Chemical Resistant No
- Outputs PNP
- Sensing Beam Wavelength 640
- DeviceNet No
- Indicator LEDs
- Small Visible Spot LED
- Min Op. Temp. (°C) -40
- Barrel Diameter (mm) 18
- Max Sensing Distance (mm) 120
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Special Feature: Intrinsically Safe No
- Number of Pins 4
- IO Link No
- Sensing Beam Visible Red LED
- Quick Disconnect Type M8 (Pico)
- Repeatability (µs) 130
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6AF120Q7 on Powermatic Associates is $122.00. Order now.
About the product
Banner Engineering QS18VP6AF120Q7 is a sensor with an adjustable-field photo-electric function. It features an M18 threaded mount for installation and operates within an ambient air temperature range of -40 to +60°C. This sensor is designed with a background suppression system that includes potentiometer adjustment for precise operation. It comes pre-equipped with a 4-pin Pico-style M8 connector for connectivity. As part of the QS18..AF electronically adjustable background suppression series, it offers a degree of protection rated at IP67 NEMA 6. The supply voltage required for operation ranges from 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. The sensor has a rectangular shape and is constructed with a thermoplastic housing and an acrylic lens. It is capable of sensing distances up to 120mm and emits visible red light. The operating modes include Light-ON and Dark-ON, and it features 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 2.8ms or 0.0028 seconds.
