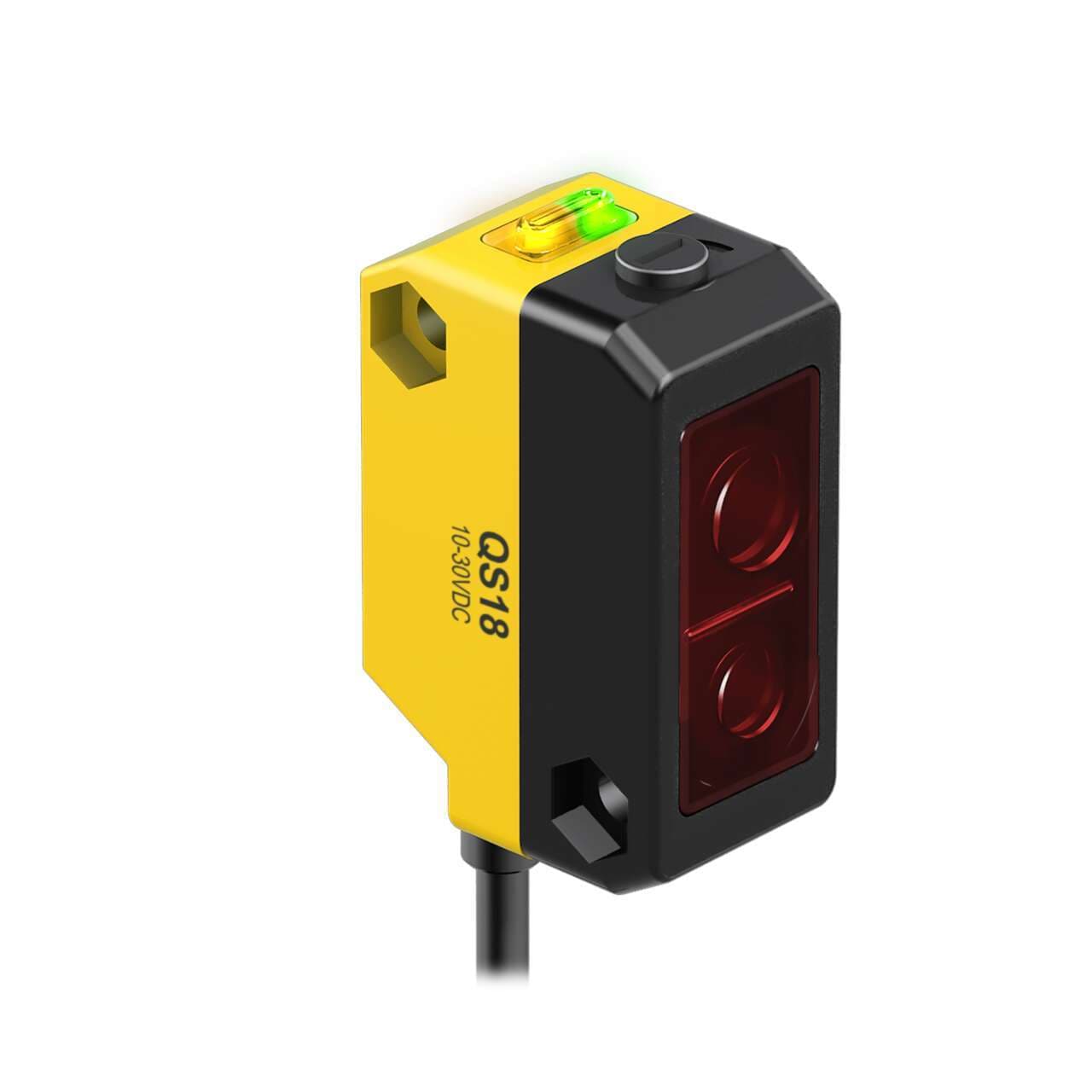

QS18VP6AF300 Banner Proximity Sensors
Part#:QS18VP6AF300
Alt. Part#:11394
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM: Adjustable Field Background Suppression; Cutoff Adjustment Range: 30 to 300 mm; Input: 10-30 V dc; Outputs: Complementary PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 95.25432 g
- Country Of Origin MX
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Special Feature: Water Detection No
- Lens Material Acrylic
- IO Link No
- Sensing Beam Visible Red LED
- Connection Cable
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Primary Housing Material ABS
- Max Op. Temp. (°C) 55
- Delay at Power-up (ms) 200
- Feature: Encapsulated No
- Input/Output Discrete
- Operation Light/Dark Operate
- IP Rating IP67
- Opposed Mode Emitter/Receiver N/A
- Quick Disconnect Type No QD
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 300
- Cable Length (m) 2
- Power Supply/Supply Voltage 10-30 V dc
- Output response time (ms) 2.5
- Sensing Beam Wavelength 640
- Adjustments Mechanical Screw
- DeviceNet No
- Feature: Audible No
- Power DC
- Min Op. Temp. (°C) -20
- Max Op. Relative Humidity [%] 95% @ 50°C
- Sensing Mode (General) Proximity
- Outputs PNP
- Special Feature: Remote Teach No
- Barrel Diameter (mm) N/A
- Housing Style Rectangular
- Special Feature: Intrinsically Safe No
- Repeatability (µs) 250
- Indicator LEDs
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6AF300 on Powermatic Associates is $116.00. Order now.
About the product
Banner Engineering QS18VP6AF300 is an adjustable-field photo-electric sensor designed with a background suppression system and screw adjustment for precise operation. It operates within an ambient air temperature range of -20 to +55 °C and is housed in a thermoplastic casing with an acrylic lens. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, ensuring easy integration into various systems. Part of the QS18..AF mechanically adjustable background suppression series, it offers a sensing distance of 30 to 300mm and utilizes visible red light for detection. The QS18VP6AF300 features a rectangular shape, supports a supply voltage range of 10Vdc to 30Vdc (with 12Vdc / 24Vdc nominal), and provides one digital output (PNP transistor; complementary NO/NC) with a response time of 2.5ms / 0.0025 s. It is rated with a degree of protection of IP67 NEMA 6, making it suitable for challenging environments.
