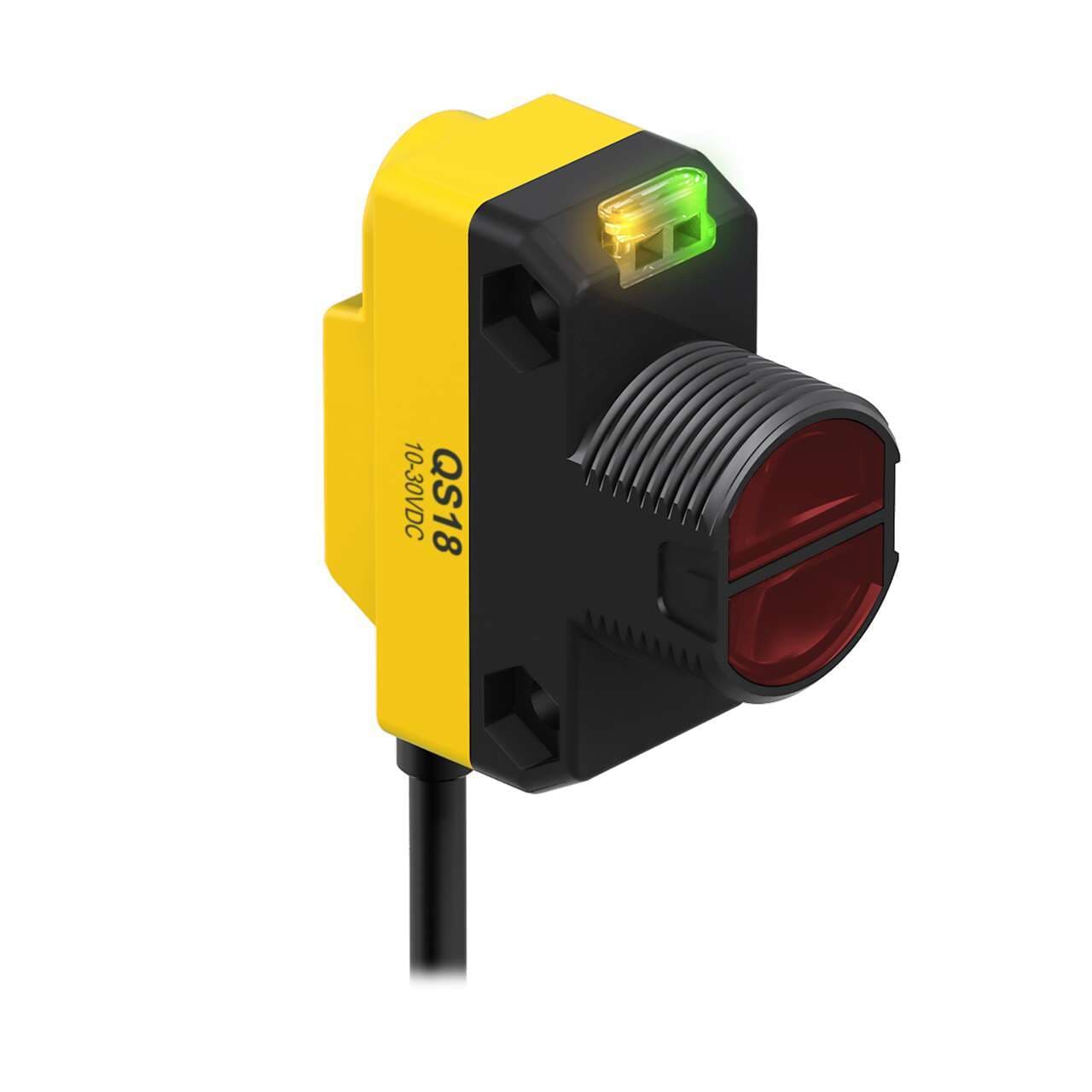

QS18VP6DL W/30 Banner Proximity Sensors
Part#:QS18VP6DL W/30
Alt. Part#:800769
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Diffuse; Range: 600 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 9 m (30 ft) Cable
Product Details
- Weight 158.7572 g
- Country Of Origin MX
- Power DC
- Quick Disconnect Type No QD
- Lens Material Acrylic
- Feature: Quick Disconnect No
- Operation Light/Dark Operate
- NEMA Rating NEMA 6
- Indicator LEDs
- Cable Length (m) 9
- DeviceNet No
- Sensing Mode (General) Proximity
- Special Feature: Intrinsically Safe No
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 18
- Sensing Mode (Detailed) Diffuse
- Min Op. Temp. (°C) -20
- Sensing Beam Wavelength 940
- Adjustments Potentiometer
- Max Sensing Distance (mm) 600
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 90
- Feature: Encapsulated No
- Primary Housing Material ABS
- Max Op. Temp. (°C) 70
- Delay at Power-up (ms) 100
- Feature: Hazardous Area No
- Sensing Beam Infrared LED
- Output response time (ms) 0.85
- Special Feature: Water Detection No
- IP Rating IP67
- IO Link No
- Housing Style Rectangular w/M18 Mount
- Connection Cable
- Number of Pins 4
- Input/Output Discrete
- Outputs PNP
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Chemical Resistant No
- Feature: Audible No
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6DL W/30 on Powermatic Associates is $121.00. Order now.
About the product
Banner Engineering QS18VP6DL W/30 is a photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and is equipped with a diffuse mode potentiometer adjustment for precise sensing control. This sensor is connected via a pre-wired 30ft / 9m cable with bare end flying leads, belonging to the QS18 series. It boasts an IP67 NEMA 6 degree of protection, ensuring durability in various environments. The QS18VP6DL W/30 operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc and 24Vdc as nominal values, and is housed in a thermoplastic casing with an acrylic lens. It has a sensing distance of up to 600mm and utilizes infrared (IR) light for detection. The operating modes include Light-ON and Dark-ON, complemented by a digital output (PNP transistor; complementary NO/NC) and a swift response time of 0.85ms / 0.00085 s.
