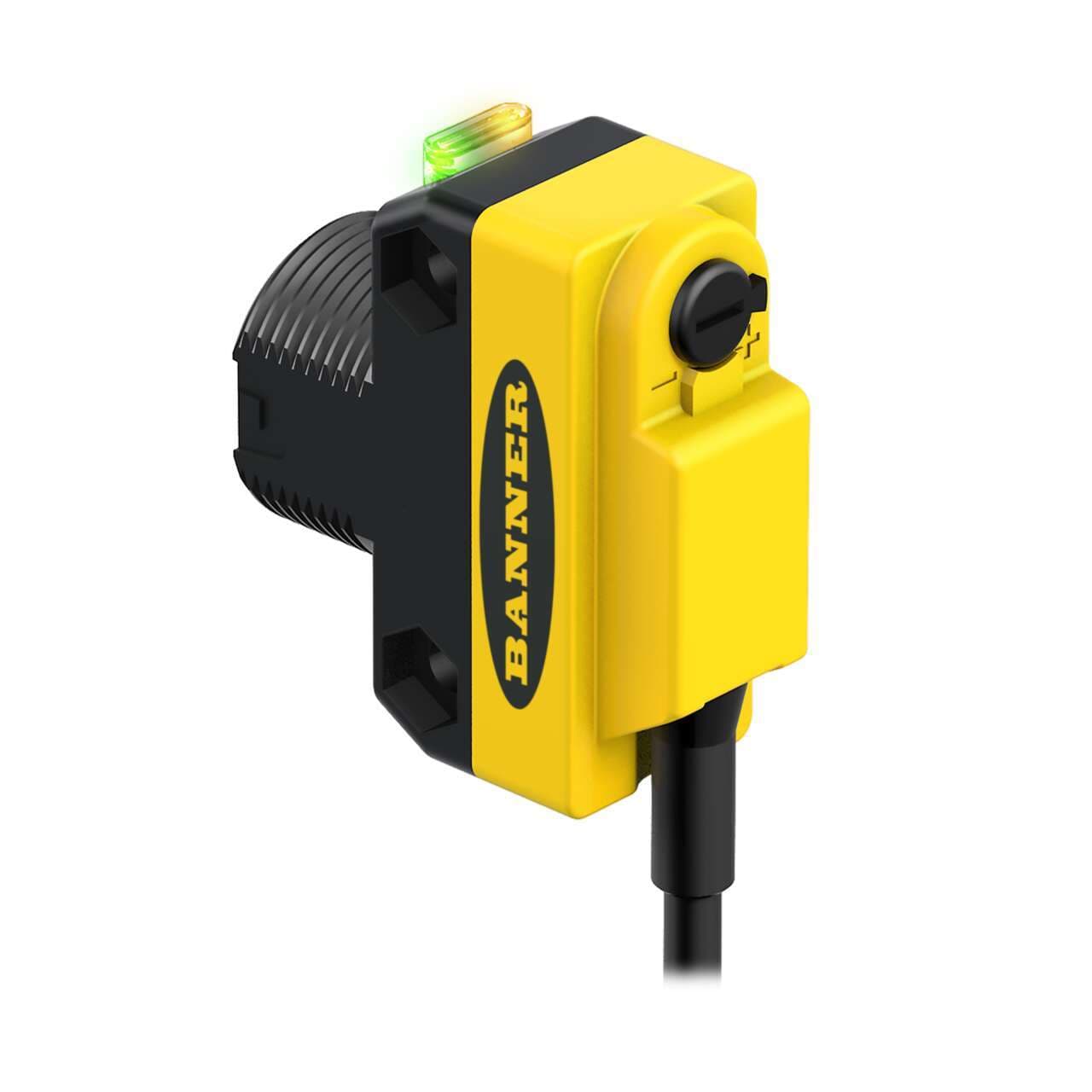

QS18VP6LP Banner Proximity Sensors
Part#:QS18VP6LP
Alt. Part#:61630
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM: Polarized Retro; Range: 3.5 m; Input: 10-30 V dc; Output: Complementary PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 81.64656 g
- Country Of Origin MX
- Sensing Beam Visible Red LED
- Outputs PNP
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6
- Feature: Audible No
- Sensing Mode (General) Retroreflective
- Connection Cable
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- IO Link No
- Housing Style Rectangular w/M18 Mount
- Quick Disconnect Type No QD
- Delay at Power-up (ms) 100
- Indicator LEDs
- Input/Output Discrete
- Operation Light/Dark Operate
- Repeatability (µs) 150
- Feature: Encapsulated No
- Sensing Mode (Detailed) Polarized
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Primary Housing Material ABS
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Opposed Mode Emitter/Receiver N/A
- Max Sensing Distance (mm) 3500
- Max Op. Temp. (°C) 70
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Power DC
- Output response time (ms) 0.6
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Hazardous Area No
- Cable Length (m) 2
- Sensing Beam Wavelength 630
- Adjustments Potentiometer
- DeviceNet No
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6LP on Powermatic Associates is $90.00. Order now.
About the product
Banner Engineering QS18VP6LP is a polarized photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and is constructed with a thermoplastic housing and an acrylic lens for durability. This sensor is designed in a rectangular shape and utilizes retro-reflective mode with potentiometer adjustment for precise sensing. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. Part of the QS18 series, it offers a sensing distance of up to 3.5m and employs visible red light with a wavelength of 650 nm for detection. The QS18VP6LP operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and includes 1 x digital output (PNP transistor; complementary NO/NC) for signal processing. It is rated with a degree of protection IP67 NEMA 6, ensuring protection against dust and water ingress. The operating modes include Light-ON and Dark-ON for flexible application use.
