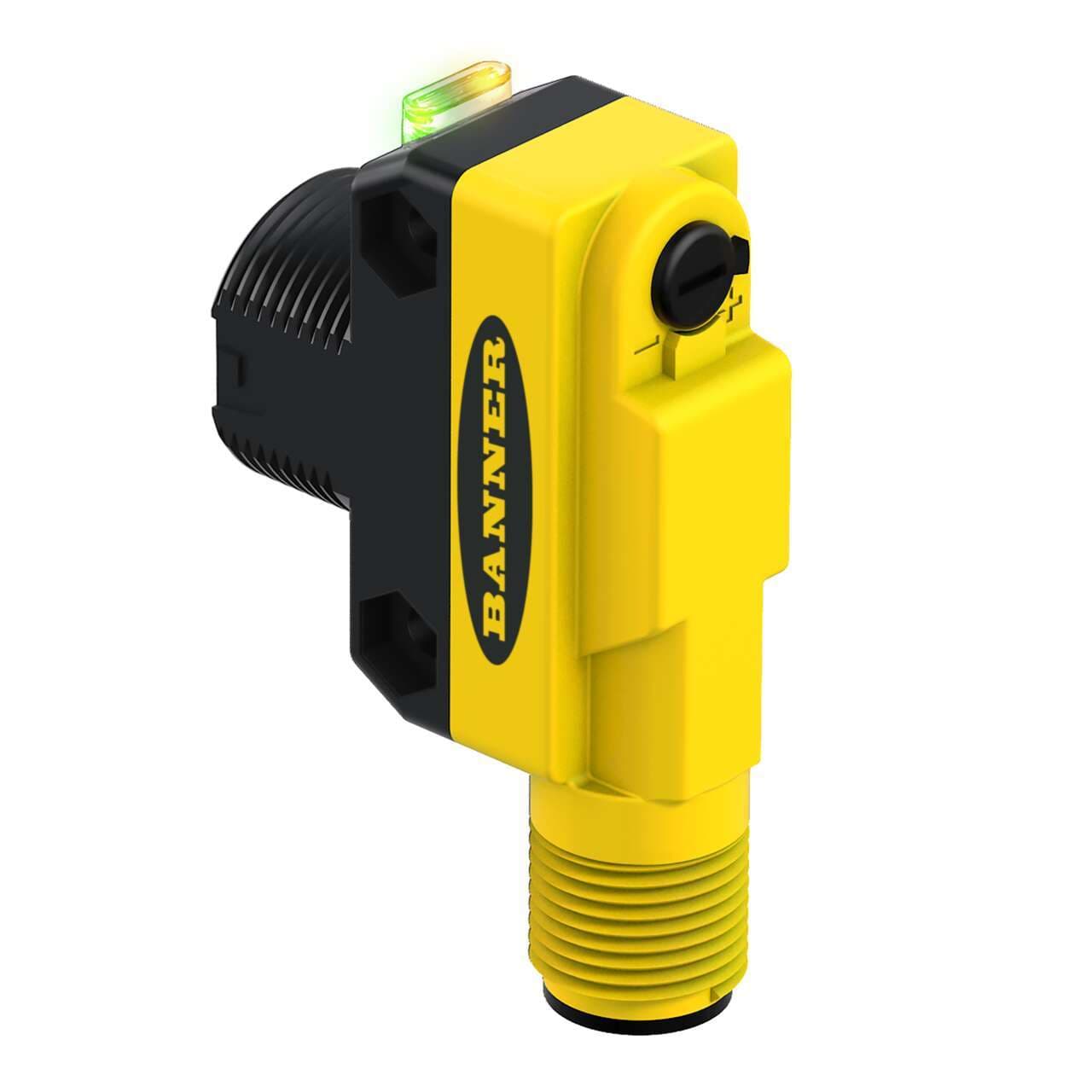

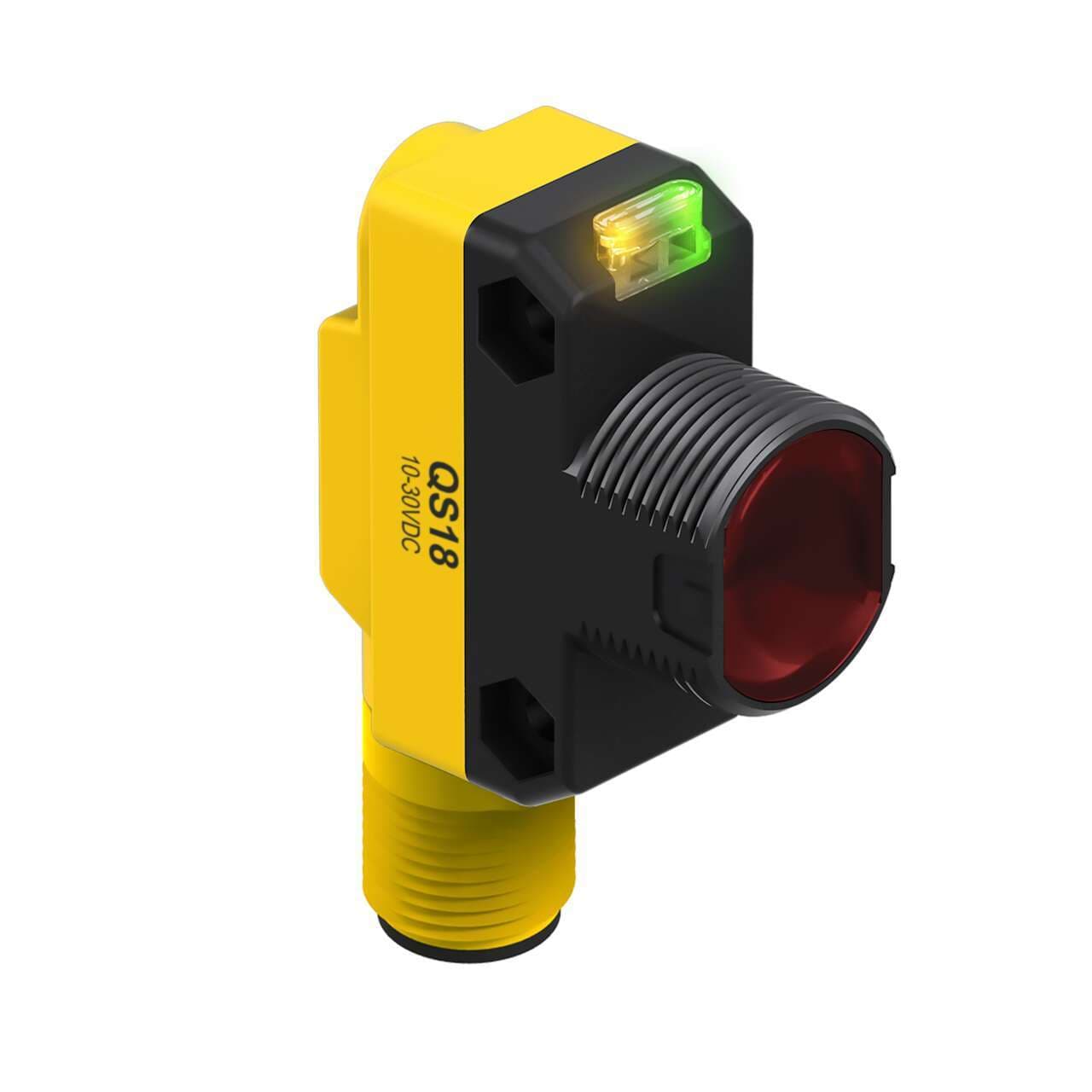

QS18VP6XLPQ8 Banner Proximity Sensors
Part#:QS18VP6XLPQ8
Alt. Part#:801261
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
QS18 Series Clear Object Sensor; Range: 3000 mm; Input: 10-30 V dc; Output: Complementary PNP; M12 Integral QD
Product Details
- Weight 68.0388 g
- Country Of Origin CN
- Product series / family name WORLD-BEAM series
- Wavelength 625 nm
- Thread size M18
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) cURus CE
- Sub-range name QS18 clear object detection series
- Sensing distance 3m
- Design retro-reflective mode
- Response time 0.4ms / 0.0004 s
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Digital outputs 1 x digital output (PNP transistor)
- Main function Sensor (Photo-electric)
- Functions Polarized (coaxial) photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Light Color Visible red
- Mounting mode Threaded mount
- Material thermoplastic housing PMMA lns.
- Ambient air temperature for operation -40...+70 °C
- Degree of protection IP67 NEMA 6
- Order code / Manufacturer SKU 801261
- Number of Pins 4
- Adjustments Potentiometer
- Feature: Chemical Resistant No
- Sensing Beam Visible Red LED
- Quick Disconnect Type M12 (Euro)
- Output response time (ms) 0.4
- Delay at Power-up (ms) 100
- Feature: Encapsulated No
- Input/Output Discrete
- DeviceNet No
- Barrel Diameter (mm) 18
- Sensing Mode (Detailed) Polarized (Coaxial)
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 95% @ 50°C
- Special Feature: Remote Teach No
- Repeatability (µs) 100
- IO Link No
- Housing Style Rectangular w/M18 Mount
- Sensing Mode (General) Retroreflective
- Operation Light/Dark Operate
- IP Rating IP67
- Feature: Timing (Hold/Delay) Yes
- Outputs PNP
- Power DC
- Min Op. Temp. (°C) -40
- Sensing Beam Wavelength 625
- Opposed Mode Emitter/Receiver N/A
- Connection Integral QD
- Primary Housing Material ABS
- Special Feature: Water Detection No
- Feature: Hazardous Area No
- Power Supply/Supply Voltage 10-30 V dc
- NEMA Rating NEMA 6
- Indicator LEDs
- Max Sensing Distance (mm) 3000
- Special Feature: Intrinsically Safe No
- Lens Material PMMA
- Feature: Audible No
- Feature: Clear Object Detection Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6XLPQ8 on Powermatic Associates is $147.00. Order now.
About the product
Banner Engineering QS18VP6XLPQ8 is a polarized (coaxial) photo-electric sensor designed for clear object detection. It features an M18 threaded mount for easy installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is designed in a retro-reflective mode with potentiometer adjustment and is pre-equipped with a 4-pin Euro-style M12 connector for straightforward connectivity. Part of the QS18 clear object detection series, it offers a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. The QS18VP6XLPQ8 operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and is housed in a rectangular, thermoplastic body with a Polymethyl methacrylate (PMMA) lens. It has a sensing distance of up to 3 meters and utilizes visible red light with a wavelength of 625 nm. This sensor supports both Light-ON and Dark-ON operating modes and features a single digital output (PNP transistor; complementary NO/NC) with a rapid response time of 0.4ms / 0.0004 s.
