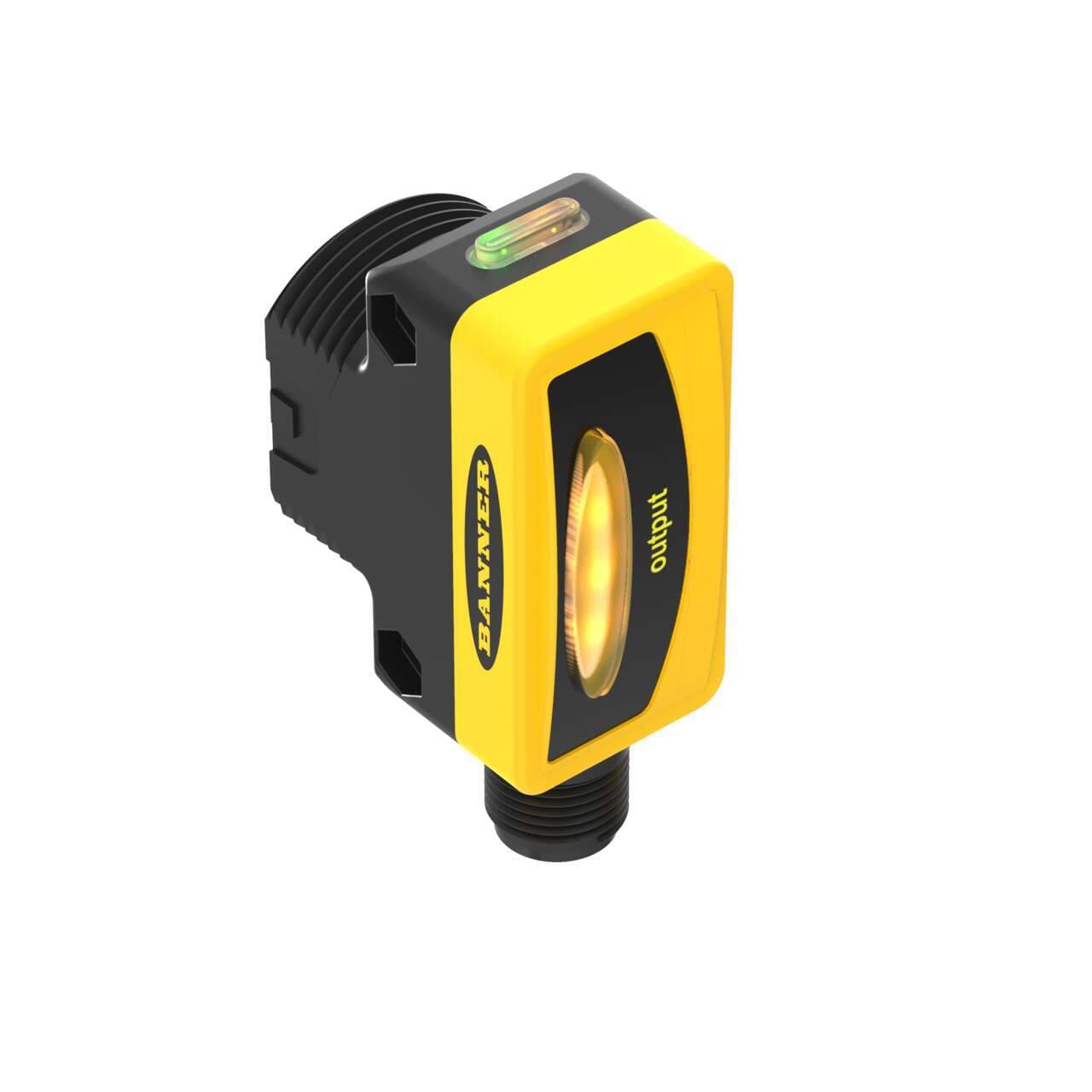

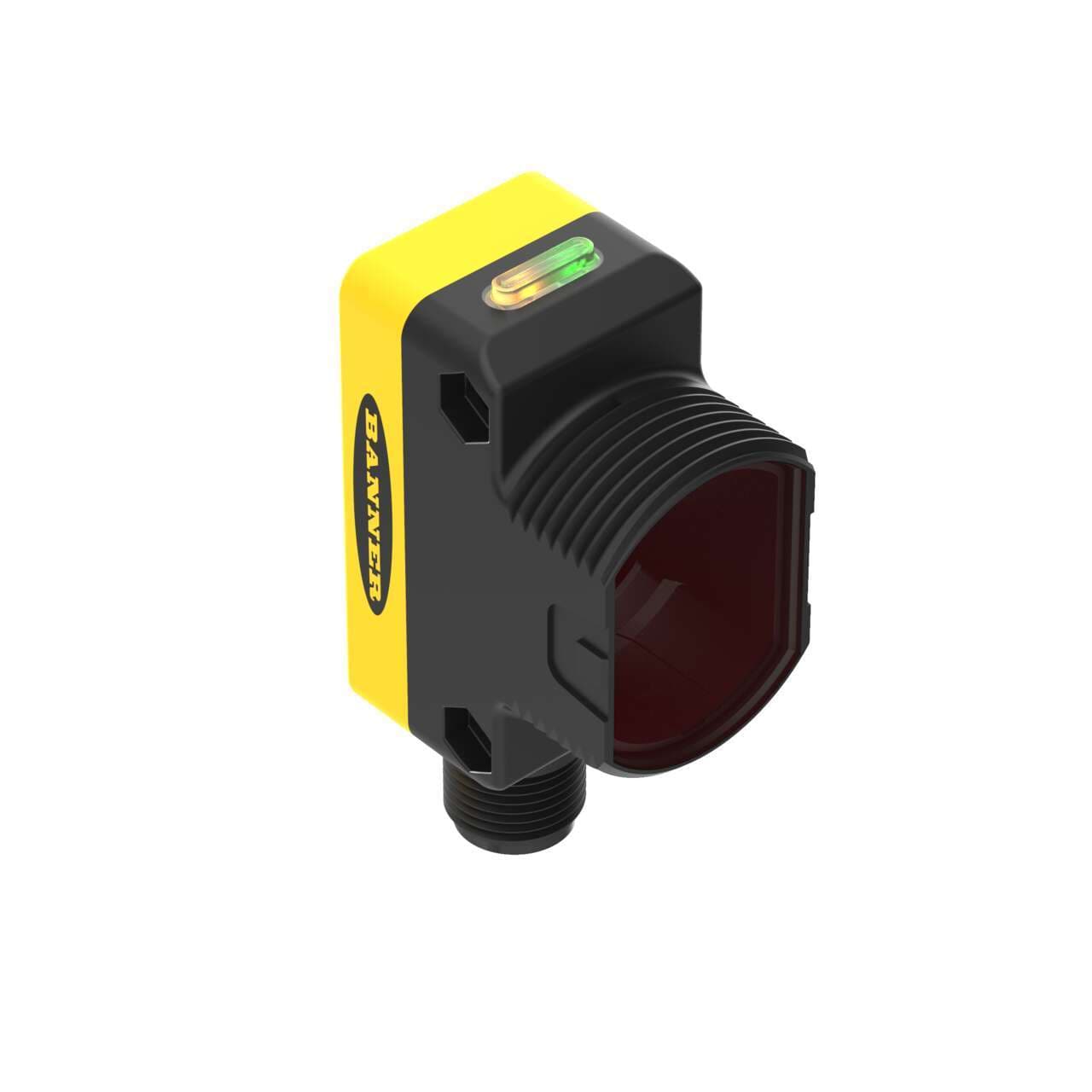

QS30FF200Q Banner Proximity Sensors

Product Details

• Weight
  54.43104 g
• Country Of Origin
  US
• Functions
  Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
• Thread size
  M30
• Digital outputs
  1 x digital output (PNP/NPN transistor)
• Compliant with standard(s)
  cURus CE
• Main function
  Sensor (Photo-electric)
• Product series / family name
  WORLD-BEAM series
• Design
  background suppression system
• Sensing distance
  200mm
• Degree of protection
  IP67 NEMA 6
• Sub-range name
  QS30 DC voltage series
• Shape
  Rectangular
• Operating mode
  Light-ON Dark-ON
• Ambient air temperature for operation
  -20...+70 °C
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Mounting mode
  Threaded mount
• Material
  thermoplastic housing Acrylic lns.
• Light Color
  Visible red
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Response time
2ms / 0.002 s
Order code / Manufacturer SKU
73086
Power
DC
Power Supply/Supply Voltage
10-30 V dc
Sensing Mode (Detailed)
Background Suppression (Fixed)
Min Op. Temp. (°C)
-20
Housing Style
Rectangular w/M30 Mount
Operation
Light/Dark Operate
Special Feature: Water Detection
No
Lens Material
Acrylic
Sensing Beam
Visible Red LED
Connection
Integral QD
Input/Output
Discrete
Output response time (ms)
2
Sensing Mode (General)
Proximity
Quick Disconnect Type
M12 (Euro)
Max Sensing Distance (mm)
200
Max Op. Temp. (°C)
70
Outputs
Bipolar (NPN & PNP)
Special Feature: Intrinsically Safe
No
DeviceNet
No
Primary Housing Material
Thermoplastic
Special Feature: Remote Teach
No
Opposed Mode Emitter/Receiver
N/A
IP Rating
IP67
Max Op. Relative Humidity [%]
95% @ 50°C
Feature: Encapsulated
No
NEMA Rating
NEMA 6
Feature: Chemical Resistant
No
Sensing Beam Wavelength
680
Number of Pins
5
Barrel Diameter (mm)
30
Feature: Hazardous Area
No
Adjustments
N/A
Delay at Power-up (ms)
100
Feature: Timing (Hold/Delay)
No
Feature: Audible
No
Repeatability (µs)
500
Indicator
LEDs
IO Link
No
