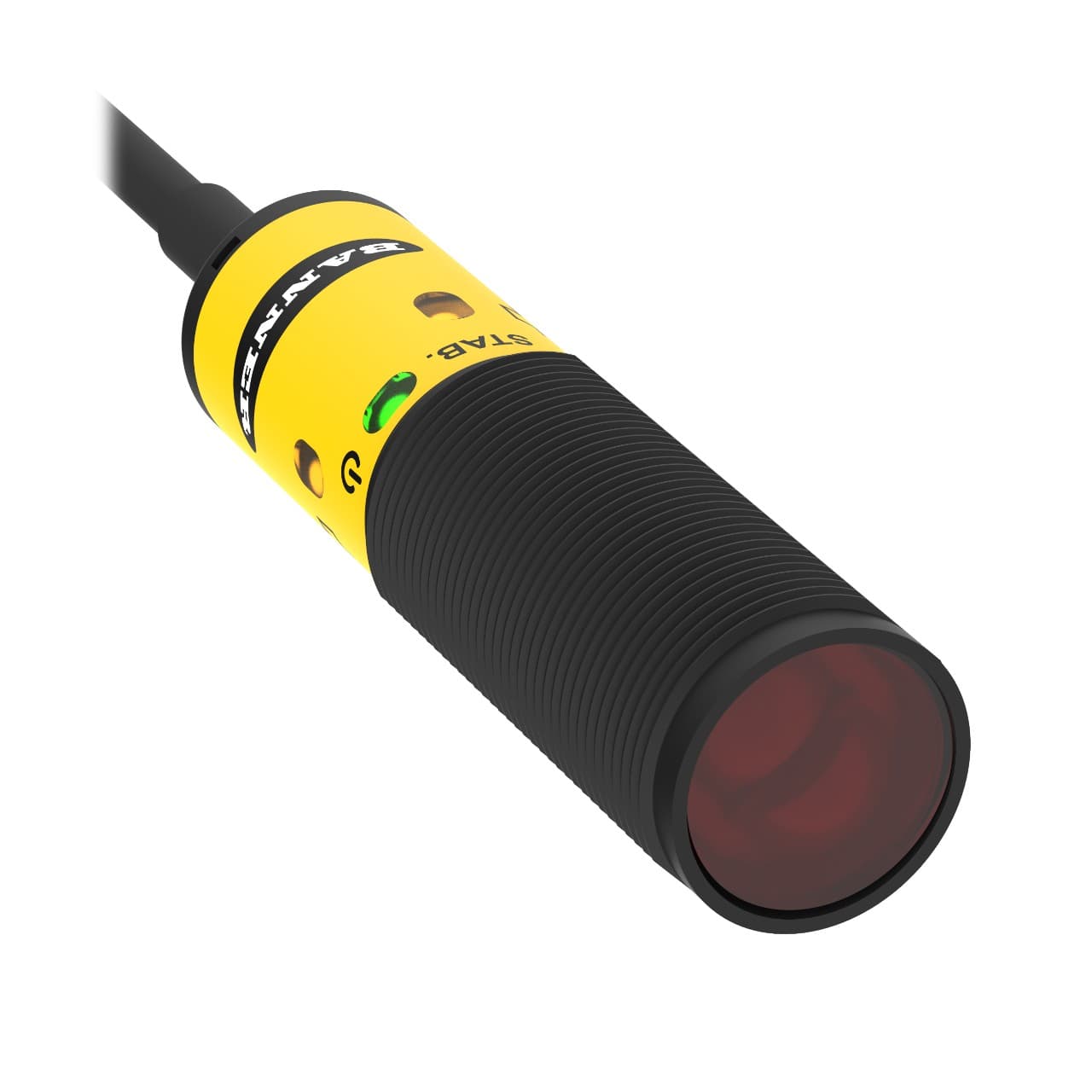

S18-2NAEJ-9M Banner Electronic Components

Product Details

• Product series / family name
  M18 barrel series
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Degree of protection
  IP67
• Order code / Manufacturer SKU
  86552
• Primary brand
  Banner Engineering
• Sub-range name
  S18-2 series
• Light Color
  Visible red
• Connection type
  Pre-wired with 9m cable terminated with bare end flying leads
• Ambient air temperature for operation
  -40...+70 °C
• Main function
  Sensor (Photo-electric)
• Functions
  Photo-electric emitter green LED (power ON) 2 x yellow LED (output conducting)
• Shape
  Cylindrical threaded/barrel
• Compliant with standard(s)
  CE
• Design
  through-beam system / opposed mode
• Thread size
  M18
• Material
  thermoplastic housing Acrylic lns.
• Wavelength
  645 nm
• Response time
  1.5ms / 0.0015 s
• Equivalent to
  S182NAEJ9M
• Outputs
  N/A
Repeatability (µs)
170
Barrel Diameter (mm)
18
Feature: Ecolab Certified
Yes
Cable Length (m)
9
Max Sensing Distance (mm)
25000
Operation
N/A
Max Op. Relative Humidity [%]
95% @ 50°C
Opposed Mode Emitter/Receiver
Emitter
Sensing Mode (Detailed)
Emitter
Special Feature: Intrinsically Safe
No
Sensing Beam Wavelength
645
NEMA Rating
N/A
Feature: Hazardous Area
No
Primary Housing Material
Thermoplastic
Connection
Cable
Adjustments
N/A
Feature: Timing (Hold/Delay)
No
DeviceNet
No
Housing Style
Barrel
Output response time (ms)
1.5
Special Feature: Water Detection
No
Indicator
LEDs
IO Link
No
Sensing Mode (General)
Opposed
Special Feature: Remote Teach
No
Delay at Power-up (ms)
100
Lens Material
Acrylic
Sensing Beam
Visible Red LED
Quick Disconnect Type
No QD
Min Op. Temp. (°C)
-40
IP Rating
IP67
Feature: Audible
No
Power Supply/Supply Voltage
10-30 V dc
Power
DC
Max Op. Temp. (°C)
70
Number of Pins
3
Feature: Encapsulated
No
Feature: Chemical Resistant
No
