Part#:S183EQ3

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

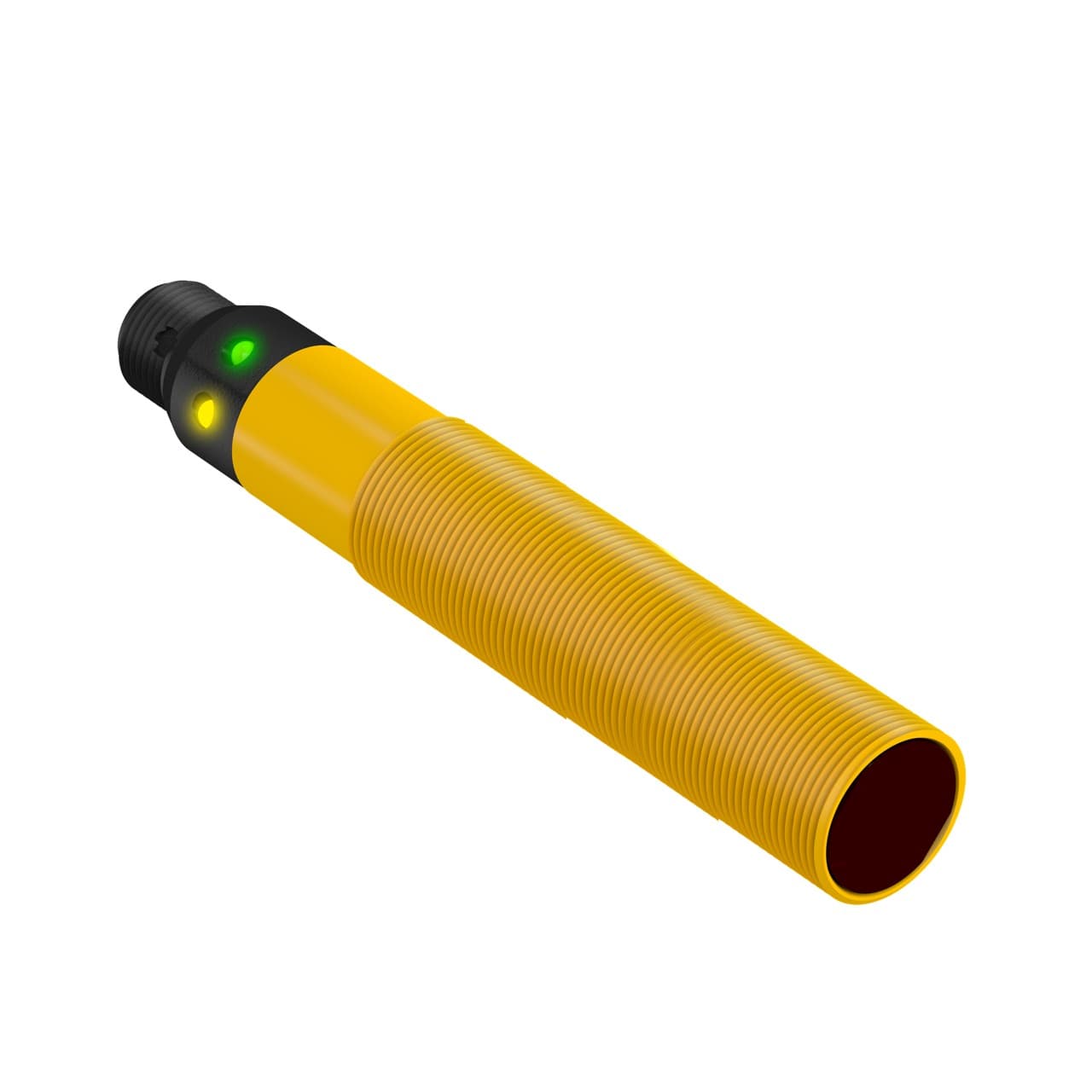

EZ-BEAM S18 Series: Emitter, Range: 20 m; Input: 20-250 V ac, Output: Not Applicable, Euro M12 5-pin Integral QD

Product Details

  • Housing Style
    Barrel
  • Max Op. Temp. (°C)
    70
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Hazardous Area
    No
  • DeviceNet
    No
  • Max Sensing Distance (mm)
    20000
  • Special Feature: Remote Teach
    No
  • Barrel Diameter (mm)
    18
  • Power
    AC
  • Min Op. Temp. (°C)
    -40
  • Number of Pins
    5
  • Feature: Ecolab Certified
    Yes
  • Primary Housing Material
    Thermoplastic
  • Delay at Power-up (ms)
    100
  • Opposed Mode Emitter/Receiver
    Emitter
  • Feature: Washdown Rated
    Yes
  • Connection
    Integral QD
  • Repeatability (µs)
    2000
  • Outputs
    N/A
  • Special Feature: Intrinsically Safe
    No
  • Adjustments
    N/A
  • Feature: Chemical Resistant
    No
  • Sensing Mode (General)
    Opposed
  • Operation
    N/A
  • NEMA Rating
    NEMA 6P
  • Feature: Encapsulated
    Yes
  • Power Supply/Supply Voltage
    20-250 V ac
  • Special Feature: Water Detection
    No
  • Indicator
    LEDs
  • IO Link
    No
  • Sensing Beam
    Infrared LED
  • Quick Disconnect Type
    M12 (Euro)
  • IP Rating
    IP67, IP69
  • Feature: Timing (Hold/Delay)
    No
  • Sensing Mode (Detailed)
    Emitter
  • Output response time (ms)
    N/A
  • Lens Material
    Polycarbonate
  • Feature: Audible
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
