S18AW3D-81836 Banner Retroreflective Sensors

S18AW3D-81836 on Powermatic Associates
Banner

Part#:S18AW3D-81836

Alt. Part#:81836

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

S18 AW3D-81836 EZ-BEAM S18 Series Diffuse; Range: 100 mm; Input: 20-250 V ac; Output: SPST Solid-State Light Operate; 18 in Cable; Bagged Bulk Pack of 50 with Knurl nuts; No Literature

Product Details

  • Weight
    57.152592 g
  • Country Of Origin
    MX

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18AW3D-81836 on Powermatic Associates is $90.00. Order now.

About the product

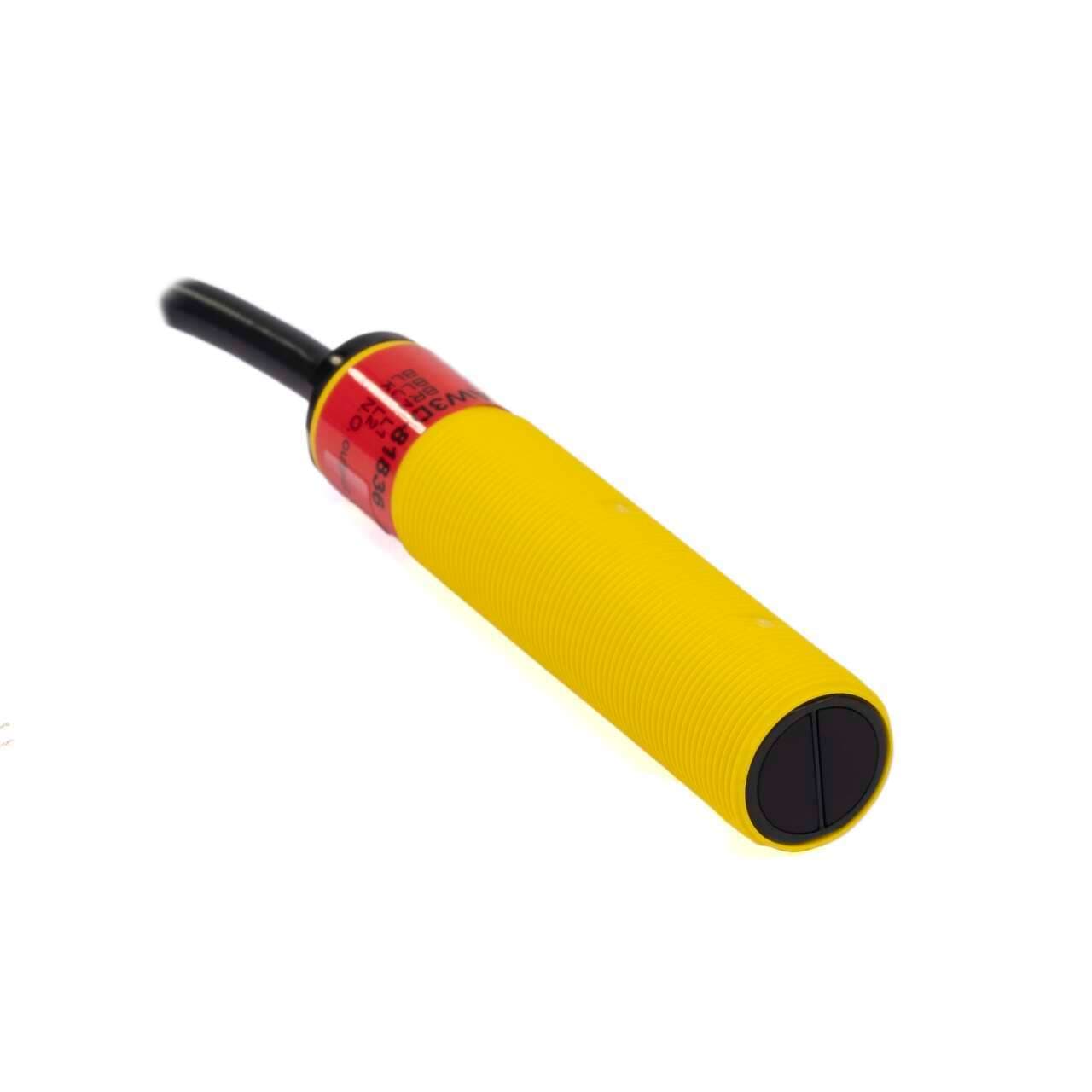

Banner Engineering S18AW3D-81836 is a photo-electric sensor from the S18 AC series, designed with a diffuse mode. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with an 18" / 457mm cable terminated with bare end flying leads. It operates on a supply voltage range of 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.) and can function within an ambient air temperature range of -40 to +70°C. The S18AW3D-81836 offers a degree of protection rated at IP67, IP69K, and NEMA 6P, making it suitable for various environmental conditions. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (Solid-state AC output; SPST contact type) for connectivity. The sensing distance is set at 100mm, with an infrared (IR) light color, a response time of 16ms / 0.016 s, and operates in a Light-ON mode. The wavelength of the IR light is 880 nm, and it has an M18 thread size for mounting.

S18AW3D-81836 Related Documents

116160.pdf

Similar products from: Banner Retroreflective Sensors

SL10VB6VQ on Powermatic Associates

SL10VB6VQ

Banner

SL10 Series: Slot Sensor; Slot width: 10 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; M12 Integral QD

1 in stock
S18RW3R on Powermatic Associates

S18RW3R

Banner

EZ-BEAM S18 Series: Receiver; Range: 20 m; Input: 20-250 V ac; Output: SPST Solid-state Dark Operate; 2 m (6.5 ft) Cable

1 in stock
S18SN6LPQ on Powermatic Associates

S18SN6LPQ

Banner

EZ-BEAM S18 Series: Polarized Retro; Range: 2 m; Input: 10-30 V dc; Output: Complementary NPN; 4-pin M12 Integral QD

2 in stock
S18SP6FF100Q on Powermatic Associates

S18SP6FF100Q

Banner

EZ-BEAM S18 Series: Fixed Field; Range: 100 mm; Input: 10-30 V dc; Output: Complementary PNP; 4-pin M12 Integral QD

16 in stock
S183E on Powermatic Associates

S183E

Banner

EZ-BEAM S18 Series: Emitter; Range: 20 m; Input: 20-250 V ac; Output: Not Applicable; 2 m (6.5 ft) Cable

2 in stock

Manufacturer warranty

S18AW3D-81836 Banner

$90.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$90.00

$90.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare S18AW3D-81836 with other Retroreflective Sensors products

Weight

Country Of Origin

Selected product

S18AW3D-81836
Backordered
S18AW3D-81836
Banner

S18 AW3D-81836 EZ-BEAM S18 Series Diffuse; Range: 100 mm; Input: 20-250 V ac; Output: SPST Solid-Sta...

Weight57.152592 g

Country Of OriginMX

S18RW3R
1 in stock
S18RW3R
Banner

EZ-BEAM S18 Series: Receiver; Range: 20 m; Input: 20-250 V ac; Output: SPST Solid-state Dark Operate...

Weight153.767688 g

Country Of OriginMX

S18SN6LPQ
2 in stock
S18SN6LPQ
Banner

EZ-BEAM S18 Series: Polarized Retro; Range: 2 m; Input: 10-30 V dc; Output: Complementary NPN; 4-pin...

Weight48.987936 g

Country Of OriginMX

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...

Recently viewed products

Relevant products

FAQ

What is the price of S18AW3D-81836?
Purchase the S18AW3D-81836 from Powermatic Associates at the price of $90.00. Order today.

Out if stock but available for backorder.

S18 AW3D-81836 EZ-BEAM S18 Series Diffuse; Range: 100 mm; Input: 20-250 V ac; Output: SPST Solid-State Light Operate; 18 in Cable; Bagged Bulk Pack of 50 with Knurl nuts; No Literature
