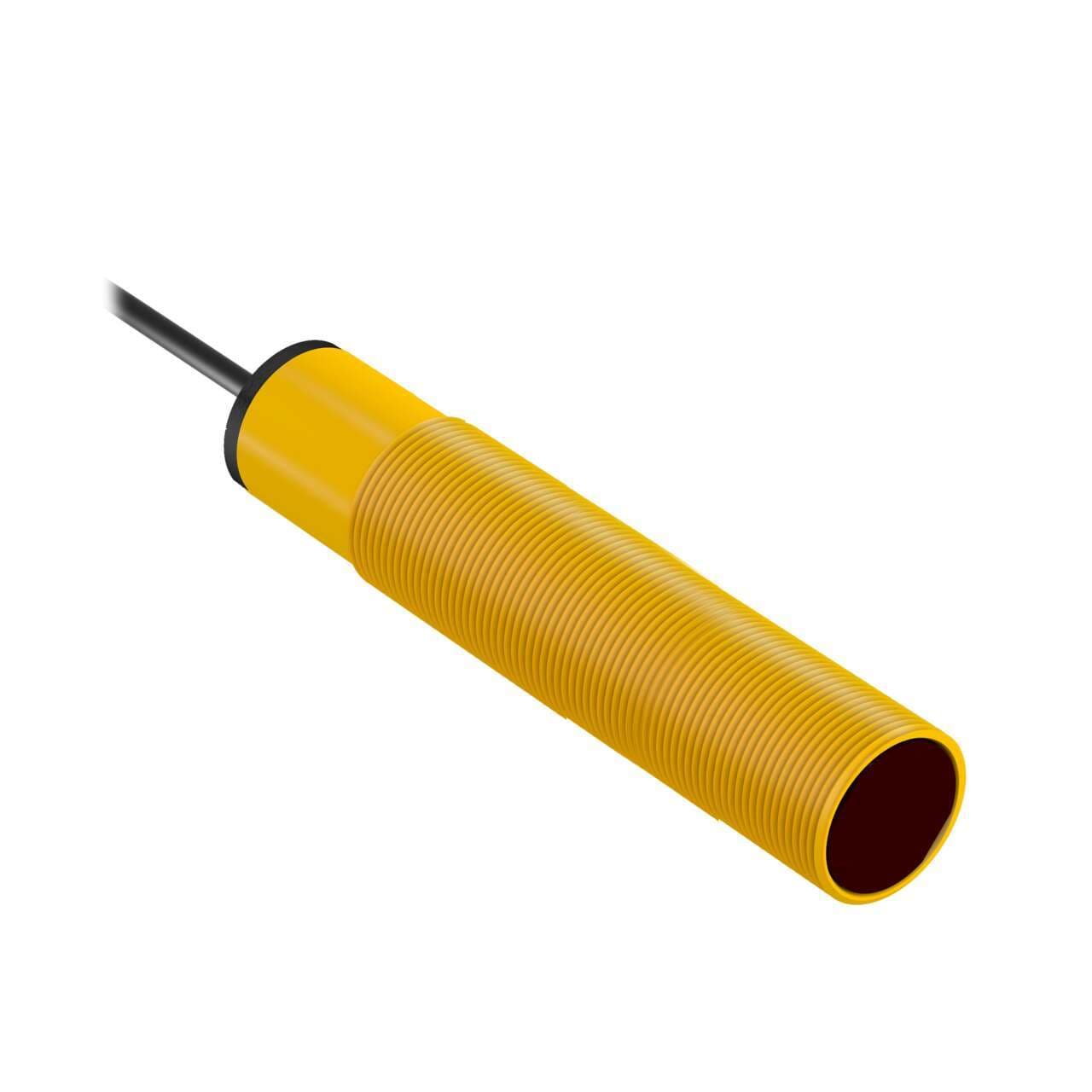

S18AW3LP Banner Retroreflective Sensors

S18AW3LP on Powermatic Associates
Banner

Part#:S18AW3LP

Alt. Part#:32727

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

EZ-BEAM S18 Series: Polarized Retro; Range: 2 m; Input: 20-250 V ac; Output: SPST Solid-state Light Operate; 2 m (6.5 ft) Cable

Product Details

  • Weight
    156.942832 g
  • Country Of Origin
    MX
  • Product series / family name
    EZ-BEAM series
  • Light Color
    Visible red
  • Operating mode
    Light-ON
  • Primary brand
    Banner Engineering
  • Main function
    Sensor (Photo-electric)
  • Supply voltage (AC)
    20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
  • Functions
    Polarized photo-electric sensor green LED (power ON) amber LED (output state)
  • Sub-range name
    S18 AC series
  • Design
    retro-reflective mode
  • Wavelength
    680 nm
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Compliant with standard(s)
    cULus CCC cCSAus CE
  • Sensing distance
    2m
  • Thread size
    M18
  • Digital outputs
    1 x digital output (Solid-state AC output; SPST contact type)
  • Shape
    Cylindrical threaded/barrel
  • Response time
    16ms / 0.016 s
  • Order code / Manufacturer SKU
    32727
  • Degree of protection
    IP67 IP69K NEMA 6P
  • Material
    thermoplastic housing Acrylic lns.
  • Ambient air temperature for operation
    -40...+70 °C
  • Cable Length (m)
    2
  • Power Supply/Supply Voltage
    20-250 V ac
  • Output response time (ms)
    16
  • IP Rating
    IP67, IP69
  • Feature: Timing (Hold/Delay)
    No
  • Quick Disconnect Type
    No QD
  • Number of Pins
    3
  • Feature: Washdown Rated
    Yes
  • Primary Housing Material
    Thermoplastic
  • Special Feature: Remote Teach
    No
  • Barrel Diameter (mm)
    18
  • Feature: Chemical Resistant
    No
  • Input/Output
    Solid-State AC Switch
  • Special Feature: Intrinsically Safe
    No
  • NEMA Rating
    NEMA 6P
  • Feature: Ecolab Certified
    Yes
  • Repeatability (µs)
    4000
  • IO Link
    No
  • Sensing Mode (Detailed)
    Polarized
  • Min Op. Temp. (°C)
    -40
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Encapsulated
    Yes
  • Power
    AC
  • Outputs
    Solid-State AC Switch
  • Operation
    Light Operate
  • Lens Material
    Acrylic
  • Feature: Hazardous Area
    No
  • Sensing Mode (General)
    Retroreflective
  • Connection
    Cable
  • Delay at Power-up (ms)
    100
  • Opposed Mode Emitter/Receiver
    N/A
  • Max Sensing Distance (mm)
    2000
  • Special Feature: Water Detection
    No
  • Indicator
    LEDs
  • DeviceNet
    No
  • Sensing Beam
    Visible Red LED
  • Housing Style
    Barrel
  • Max Op. Temp. (°C)
    70
  • Adjustments
    N/A
  • Feature: Audible
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18AW3LP on Powermatic Associates is $152.00. Order now.

About the product

Banner Engineering S18AW3LP is a polarized photo-electric sensor from the S18 AC series, designed in a retro-reflective mode. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage ranging from 20Vac to 250Vac (with nominal voltages of 200Vac, 220Vac, and 240Vac) and can function within an ambient air temperature range of -40 to +70°C. The S18AW3LP offers a degree of protection rated at IP67, IP69K, and NEMA 6P, making it suitable for various environmental conditions. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (Solid-state AC output; SPST contact type) for connectivity. The sensing distance is up to 2m, utilizing visible red light with a wavelength of 680 nm and a response time of 16ms / 0.016 s. It operates in Light-ON mode and has an M18 thread size for installation.
