S18RW3FF50-67064 Banner Retroreflective Sensors

S18RW3FF50-67064 on Powermatic Associates
Banner

Part#:S18RW3FF50-67064

Alt. Part#:67064

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

S18RW3FF50-67064 LOW TEMP CABL DO 50 mm FF

Product Details

  • Weight
    154.22128 g
  • Country Of Origin
    MX

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18RW3FF50-67064 on Powermatic Associates is $348.00. Order now.

About the product

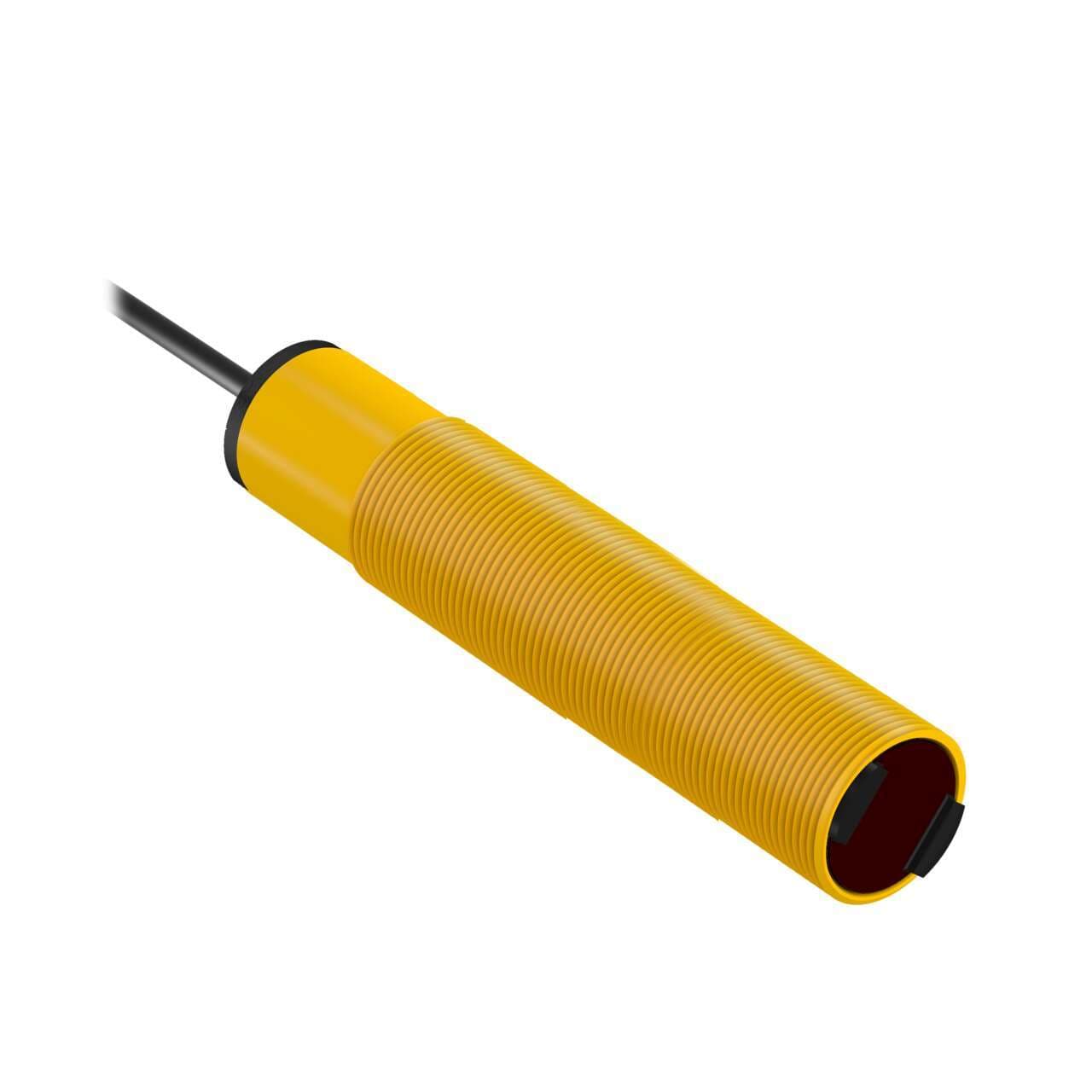

Banner Engineering S18RW3FF50-67064 is a fixed-field photo-electric sensor from the S18 AC series, designed with a background suppression system suitable for low-temperature environments. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. It operates on a supply voltage ranging from 20Vac to 250Vac (with nominal voltages of 200Vac, 220Vac, and 240Vac) and can function within an ambient air temperature range of -40 to +70°C. The S18RW3FF50-67064 offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring its durability in various environmental conditions. Its M18 cylindrical threaded/barrel shape facilitates easy installation. This sensor provides one digital output (Solid-state AC output; SPST contact type), has a sensing distance of 50mm, and uses infrared light with a wavelength of 880 nm for detection. It operates with a response time of 16ms / 0.016 s and is designed to switch in Dark-ON mode.

S18RW3FF50-67064 Related Documents

116160.pdf
