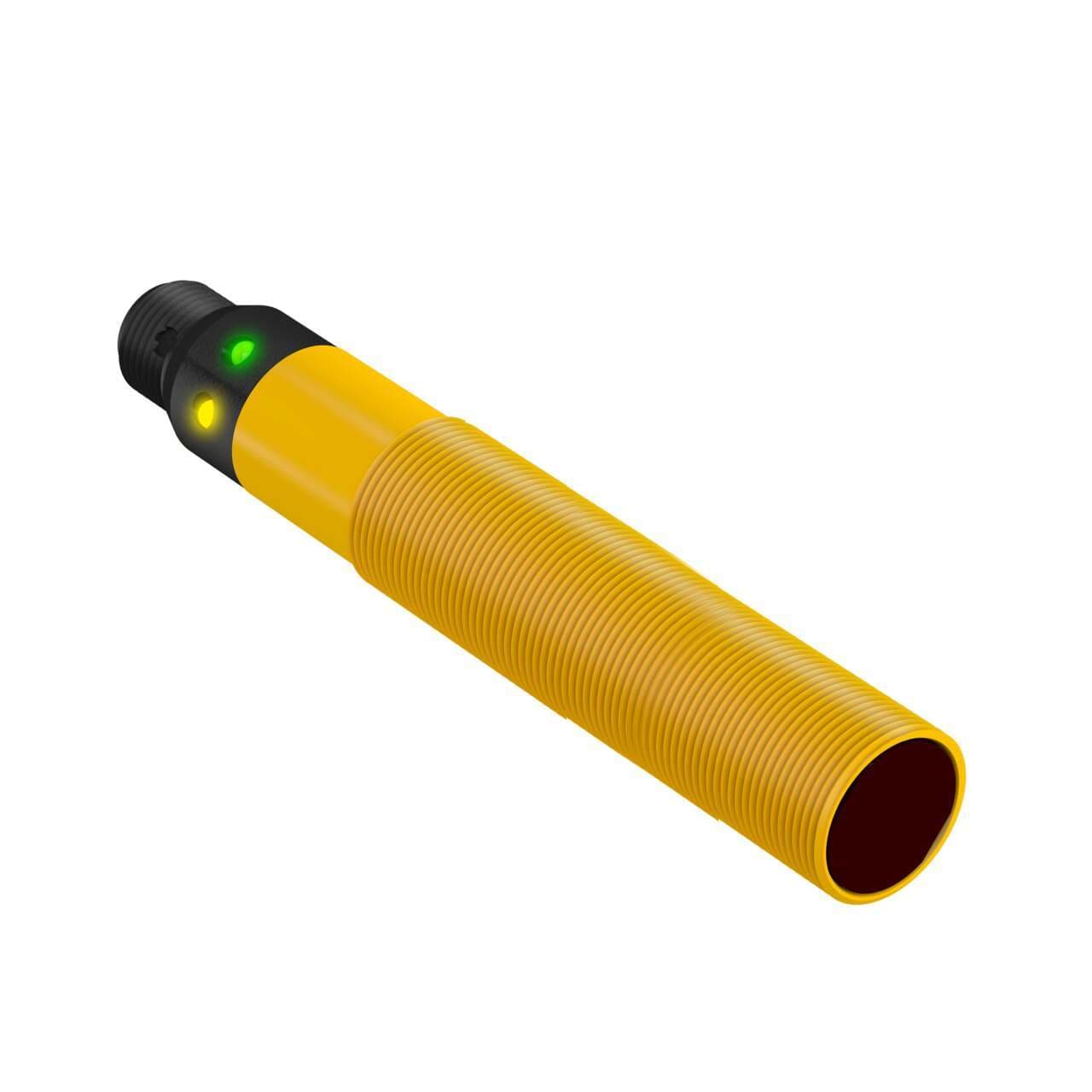

S18RW3RQ Banner Retroreflective Sensors

S18RW3RQ on Powermatic Associates
Banner

Part#:S18RW3RQ

Alt. Part#:29832

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

EZ-BEAM S18 Series: Receiver Opposed Mode; Range: 20 m; Input: 20-250 V ac; Output: Dark Operate; 5-pin Micro Integral QD

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    MX
  • Input/Output
    Solid-State AC Switch
  • Quick Disconnect Type
    1/2 in. (Micro)
  • Lens Material
    Polycarbonate
  • Feature: Chemical Resistant
    No
  • Housing Style
    Barrel
  • Max Op. Temp. (°C)
    70
  • Repeatability (µs)
    2000
  • Feature: Timing (Hold/Delay)
    No
  • Power
    AC
  • Connection
    Integral QD
  • Number of Pins
    5
  • Feature: Hazardous Area
    No
  • Sensing Mode (Detailed)
    Receiver
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Water Detection
    No
  • Feature: Ecolab Certified
    Yes
  • Max Sensing Distance (mm)
    20000
  • Operation
    Dark Operate
  • Barrel Diameter (mm)
    18
  • IO Link
    No
  • Feature: Washdown Rated
    Yes
  • Outputs
    Solid-State AC Switch
  • Output response time (ms)
    16 ON/8 OFF
  • NEMA Rating
    NEMA 6P
  • Opposed Mode Emitter/Receiver
    Receiver
  • Primary Housing Material
    Thermoplastic
  • Special Feature: Remote Teach
    No
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Encapsulated
    Yes
  • Sensing Mode (General)
    Opposed
  • Min Op. Temp. (°C)
    -40
  • IP Rating
    IP67, IP69
  • Indicator
    LEDs
  • DeviceNet
    No
  • Sensing Beam
    Infrared LED
  • Power Supply/Supply Voltage
    20-250 V ac
  • Delay at Power-up (ms)
    100
  • Adjustments
    N/A
  • Feature: Audible
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18RW3RQ on Powermatic Associates is $79.00. Order now.

About the product

Banner Engineering S18RW3RQ is a photo-electric sensor designed as part of the S18 AC series, featuring a through-beam system in an opposed mode configuration. This sensor functions as a receiver alone, housed in a thermoplastic body with a polycarbonate lens. It is equipped with a 5-pin 1/2" micro connector for connectivity. The sensor operates on a supply voltage ranging from 20Vac to 250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. It is designed to function within an ambient air temperature range of -40 to +70°C. The S18RW3RQ offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environmental conditions. Its shape is an M18 cylindrical threaded/barrel, and it features a single digital output (Solid-state AC output; SPST contact type). The sensing distance of this sensor is 20m, utilizing infrared light with a wavelength of 950 nm. It has a response time of 16ms (0.016 s) and operates in a Dark-ON mode.
