S18RW3R W-30 Banner Sensors & Transducers

S18RW3R W-30 on Powermatic Associates
Banner

Part#:S18RW3R W-30

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

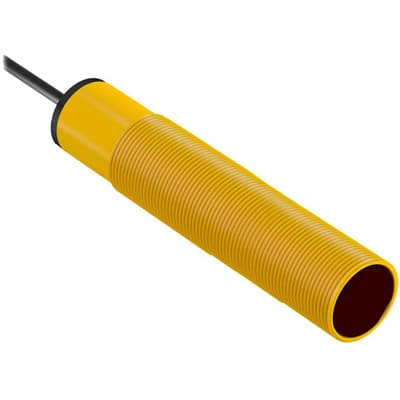

Photo-electric sensor receiver with through-beam system / opposed mode - Banner Engineering (EZ-BEAM series - S18 AC series) - Part #30827 - Sensing range 20m - Infrared (IR) light (950nm) - 1 x digital output (Solid-state AC output; SPST contact type) (D

Product Details

  • Main function
    Sensor (Photo-electric)
  • Product series / family name
    EZ-BEAM series
  • Design
    through-beam system / opposed mode
  • Shape
    Cylindrical threaded/barrel
  • Functions
    Photo-electric sensor receiver green LED (power ON) amber LED (output state)
  • Connection type
    Pre-wired with 30ft / 9m cable terminated with bare end flying leads
  • Primary brand
    Banner Engineering
  • Sub-range name
    S18 AC series
  • Sensing distance
    20m
  • Light Color
    Infrared (IR)
  • Digital outputs
    1 x digital output (Solid-state AC output; SPST contact type)
  • Supply voltage (AC)
    20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
  • Wavelength
    950 nm
  • Thread size
    M18
  • Response time
    16ms / 0.016 s
  • Order code / Manufacturer SKU
    30827
  • Operating mode
    Dark-ON
  • Material
    thermoplastic housing Polycarbonate lns.
  • Degree of protection
    IP67 IP69K NEMA 6P
  • Equivalent to
    S18RW3RW30
  • Ambient air temperature for operation
    -40...+70 °C
  • Compliant with standard(s)
    cULus CCC cCSAus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S18RW3R W-30 Related Documents

Banner Engineering - S18 AC series - Datasheet.pdf
