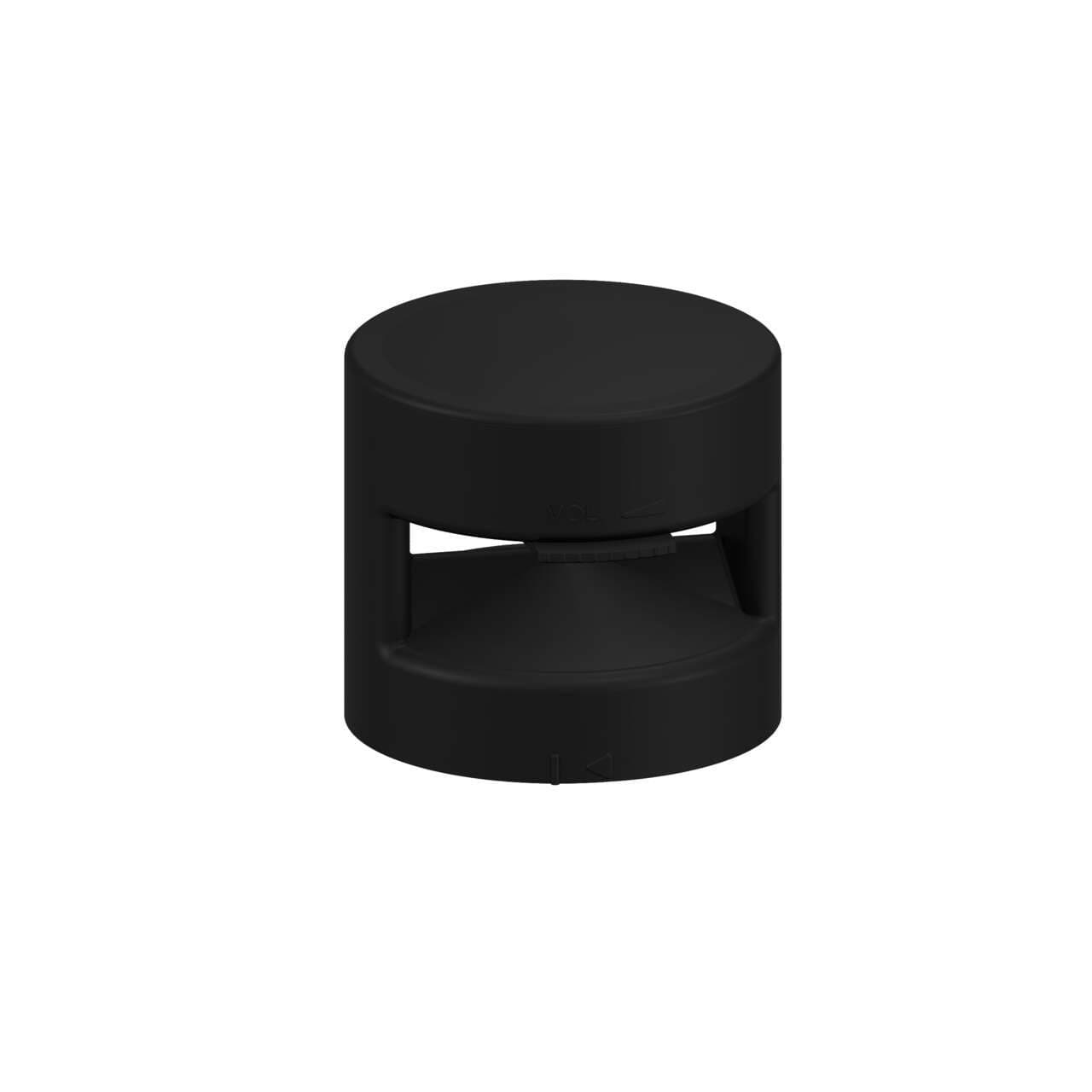

SG-TL70-ALM Banner Signal Towers

Name: SG-TL70-ALM
Brand: Banner
Price: 117 USD
Availability: BackOrder

Part#:SG-TL70-ALM

Alt. Part#:801150

Manufacturer:Banner

Category:Signal Towers

Product Lifecycle:Active

Product description

TL70 Multitone Audible Module; Voltage: 12-30 V dc; Environmental Rating: IP65; Adjustable to 101 dB; Multitones; 4 Tones; Black Housing

Product Details

Weight
136.0776 g
Country Of Origin
MX
Indication
Yes
Max Current - Audible Alarm (mA)
350
Feature: Hazardous Area
No
IO Link
No
Primary Housing Material
Polycarbonate
Audible Operating Frequency (kHz)
2.6
Feature: Chemical Resistant
No
Environmental Rating
IP65
Wireless
No
Power Source
DC or AC
Product Size (mm)
70
Min Op. Temperature (°C)
-40
Non-Illuminated
Yes
Audible Alarm Type
Multitone Loud Audible
Storage Temp (°C)
-40 to 70
Housing Style
Segment - Audible
Max Audible Intensity (db at 1m)
101
Max Op. Temperature (°C)
50

Number of Colors / Segments

Max Op. Relative Humidity Non-Condensing (%)

95% @ 50°C

Power

DC or AC

Color Technology

Standard LED

Primary Housing Color

Black

Mounting Thread

No Thread

Physical Dimensions (LxWxH or DxH mm)

70.0 x 72.0

Primary Window Material

Polycarbonate Diffused

Modbus RTU

Pro-Editor Compatible (Discrete)

Min Audible Intensity (db at 1m)

Feature: Audible

Yes

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SG-TL70-ALM on Powermatic Associates is $117.00. Order now.

About the product

Banner Engineering SG-TL70-ALM is a buzzer unit from the Modular series, designed as a multitone loud sound 1-tier audible module. It features a polycarbonate housing with a cylindrical shape and a diameter of 70mm / 2-3/4" diam. The housing color is black. This unit operates on a supply voltage range of 12Vdc-30Vdc, with a nominal voltage of 24Vdc. It is designed to function in ambient air temperatures ranging from -40°C to +50°C. The SG-TL70-ALM is rated with a degree of protection of IP65, indicating its dust tightness and protection against water jets.
