SG-TL70-BC Banner Signal Towers

Name: SG-TL70-BC
Brand: Banner
Price: 82 USD
Availability: BackOrder

Part#:SG-TL70-BC

Alt. Part#:92219

Manufacturer:Banner

Category:Signal Towers

Product Lifecycle:Active

Product description

TL70 Light Module; Color: Blue; Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Gray Housing

Product Details

Weight
90.7184 g
Country Of Origin
MX
Product Size (mm)
70
Max Op. Relative Humidity Non-Condensing (%)
95% @ 50°C
Cable Length (m)
2
Color Technology
Standard LED
Feature: Chemical Resistant
No
Power Source
DC or AC
Color Option 1
Blue
Min Op. Temperature (°C)
-40
Storage Temp (°C)
-40 to 70
Primary Housing Color
Gray
Housing Style
Segment - Light
Color 1 - Wavelength/Color Temp/Coordinates
470 nm
Feature: Quick Disconnect
No
Number of Colors / Segments
1
Animation Option 1
Dip-Switch Controlled
Pro-Editor Compatible (Discrete)
No
Wireless
No
Primary Housing Material
Polycarbonate

Max Op. Temperature (°C)

Lumens Color 1

32.0

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Power

DC or AC

Physical Dimensions (LxWxH or DxH mm)

70.0 x 50.0

Feature: Hazardous Area

Mounting Thread

No Thread

Environmental Rating

IP65

IO Link

Indication

Yes

Max Current Color (mA)

420

Modbus RTU

Feature: Audible

Primary Window Material

Polycarbonate Diffused

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SG-TL70-BC on Powermatic Associates is $82.00. Order now.

About the product

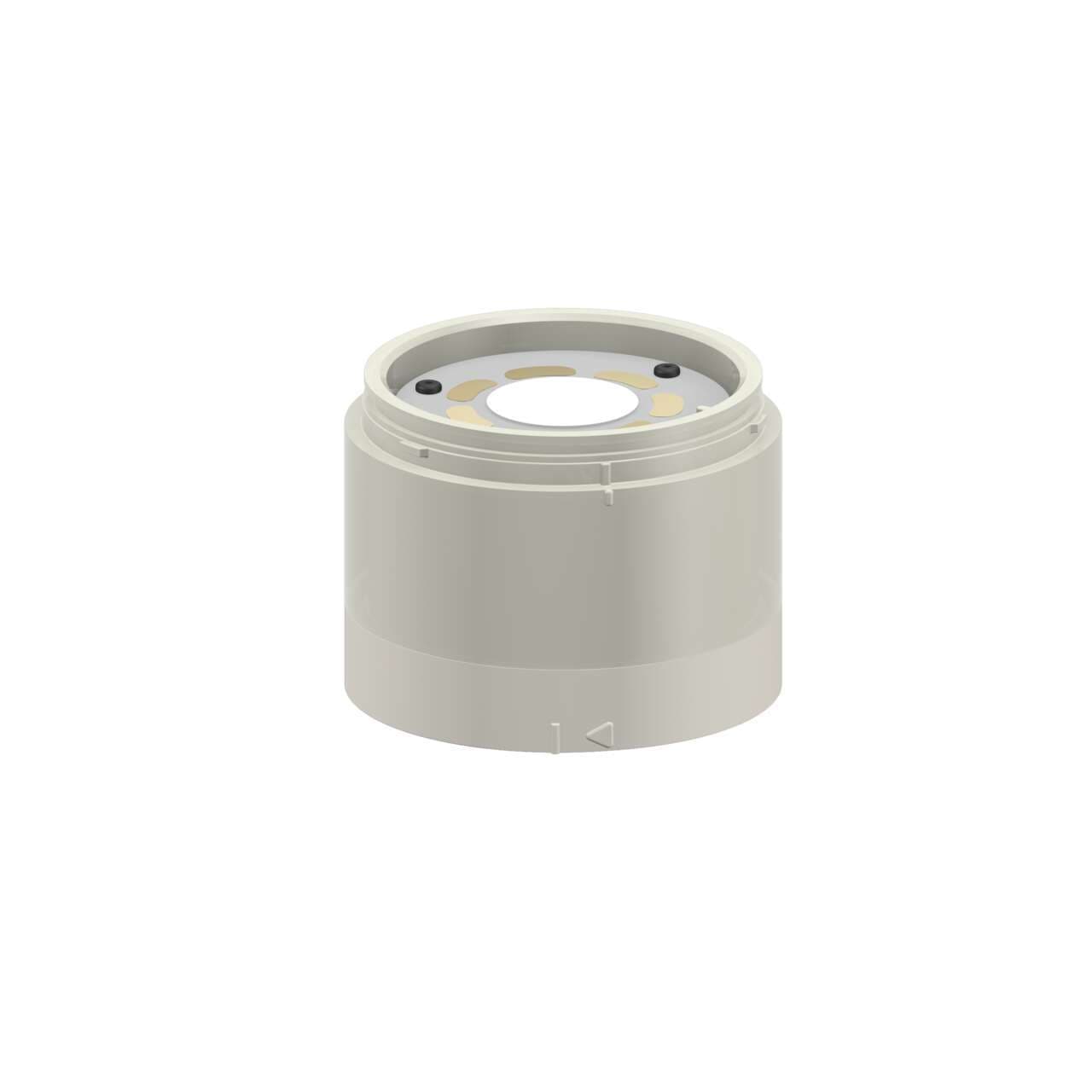

Banner Engineering SG-TL70-BC is a light unit within the Modular series, featuring a 1-color Blue LED illumination designed for tow light module applications. It is constructed with Polycarbonate (PC) windows and segments, and a Polycarbonate (PC) base, ensuring durability. The unit has a cylindrical shape with a diameter of 70mm / 2-3/4" and comes in a gray housing. It operates on a supply voltage range of 12Vdc-30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 420mA. The SG-TL70-BC is designed to function in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP65, indicating a high level of protection against dust and water ingress.

SG-TL70-BC Related Documents

182215.pdf

$82.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$82.00

$82.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us
