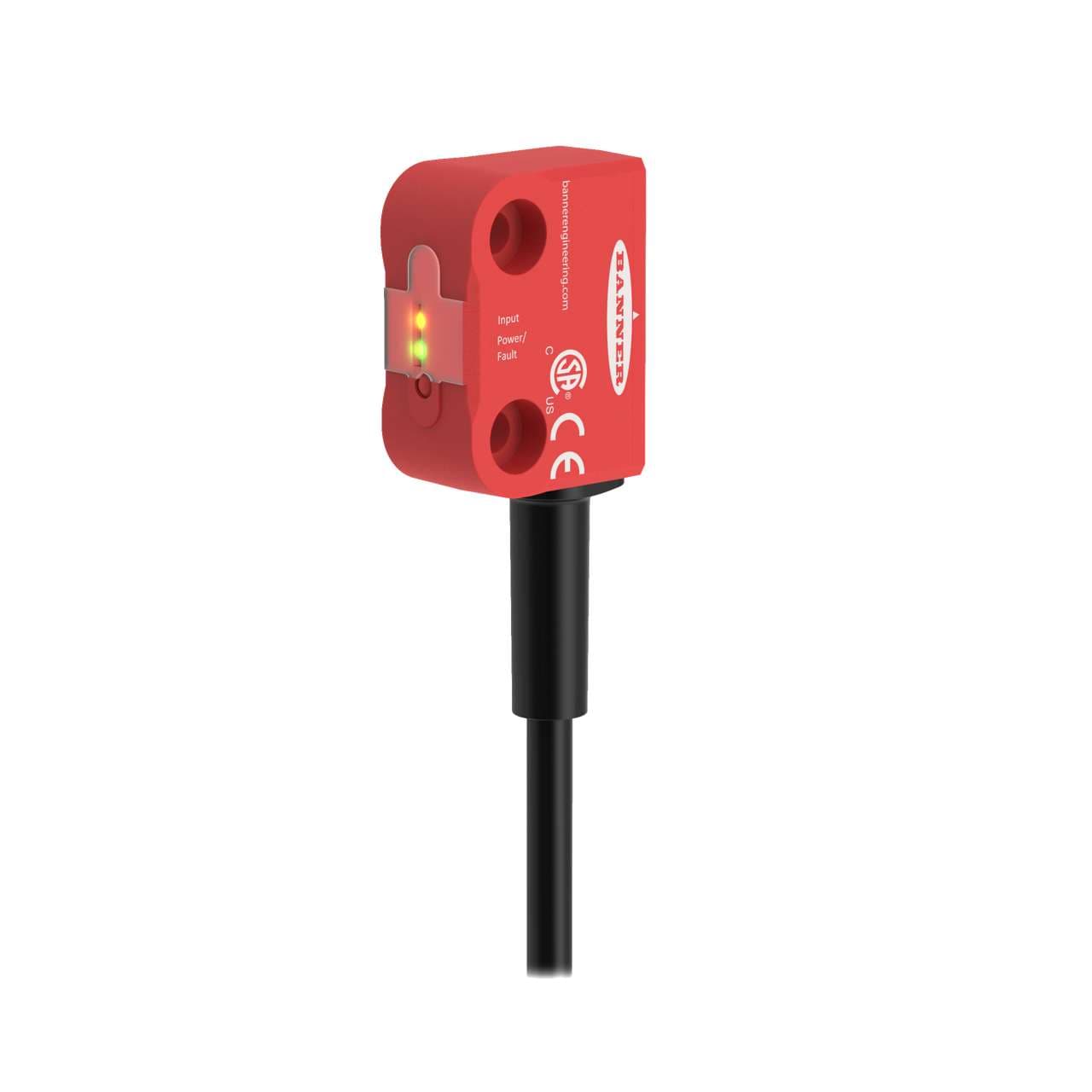

SI-RFPT-HP5 Banner Safety Switches
Part#:SI-RFPT-HP5
Alt. Part#:806406
Manufacturer:Banner
Category:Safety Switches
Product Lifecycle:Active
Product description
SI-RF Safety Switch; Coding: High; Diagnostics: Single PNP; Reset: Automatic; Connector: 250 mm 5-pin M12 Pigtail QD; Used With: SI-RF-A
Product Details
- Weight 113.398 g
- Country Of Origin HU
- H Typical (mm) 2
- Monitor (Locked) Contacts N/A
- Rated Operating Current 50 mA + output loads
- Coding Level/Tamper Resistance High
- Trip Latch Output Trip
- Response Time (ms) 100
- Auxilliary Output Yes
- Operating Voltage 24 V dc +25%, -20%
- Number of Pins 5
- Sn Typical 13
- Sao Minimum (mm) 10
- Sar Maximum (mm) 25
- In-Series Diagnostics No
- Feature: Lockable No
- Connection Type M12 Pigtail
- Output Type OSSD
- OSSD Rating 24 VDC @ 0.1 A each
- Actuator (Safety) Contacts 2 NC
- Safety Category Cat 4
- SIL Rating SIL CL 3
- IP Rating IP69
- SISTEMA PFHd of 1 x 10-9
- Max Op. Temperature (°C) 70
- PL Rating PL e
- Relative Humidity 93% @ 50 °C
- Min Op. Temperature (°C) -25
- Device Size 36 x 26 x 15
- Device Shape Rectangular
- Switch Style Non-Contact
- Actuation Standard
- Device Type RFID - Sensor
- Primary Housing Material Thermoplastic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SI-RFPT-HP5 on Powermatic Associates is $146.00. Order now.
About the product
Banner Engineering SI-RFPT-HP5 is a non-contact RFID safety door/hood/gate switch from the SI-RF series, featuring a high-coding switch with single PNP diagnostics and auto reset. It is designed with a thermoplastic housing and is pre-wired with a 250mm pigtail terminated with a 5-pin Euro-style M12 connector. This part has 2NC contacts and operates with a supply voltage of 24Vdc. It is suitable for ambient air temperatures ranging from -25 to +70°C and offers a degree of protection of IP69K. The SI-RFPT-HP5 has a rectangular shape with dimensions of 15mm in width, 32mm in height, and 26mm in depth. Its sensing distance is between 10mm (Sao) and 25mm (Sar), and it includes 2 NC auxiliary contacts without any NO auxiliary contacts.
