SLE30B6V Banner Retroreflective Sensors

SLE30B6V on Powermatic Associates
Banner

Part#:SLE30B6V

Alt. Part#:55474

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

SLE30 EXPERT Series: Teach Mode Slot Sensor; Slot width: 30 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable

Product Details

  • Weight
    190.50864 g
  • Country Of Origin
    CN
  • Cable Length (m)
    2
  • Outputs
    Bipolar (NPN & PNP)
  • Lens Material
    Acrylic
  • IP Rating
    IP67
  • Primary Housing Material
    Thermoplastic
  • Minimum Object Detection (mm)
    1.8
  • Delay at Power-up (ms)
    1000
  • Power
    DC
  • Repeatability (µs)
    100
  • Max Op. Temperature (°C)
    70
  • Max Sensing Range (mm)
    30
  • Number of Pins
    5
  • Housing Style
    Slot
  • Output response time (ms)
    0.5
  • Min Op. Temperature (°C)
    -20
  • Indicator
    LEDs
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Quick Disconnect Type
    No QD
  • Operation
    Light/Dark Operate
  • Slot Overall Depth (mm)
    72
  • Power Supply/Supply Voltage
    10-30 V dc
  • Max Op. Relative Humidity (%)
    90% @ 50°C
  • Connection
    Cable
  • Adjustments
    Teach Button
  • Minimum Object Detection [mm]
    1.8
  • Slot Depth/Array Length (mm)
    45
  • Special Feature: Remote Teach
    Yes
  • NEMA Rating
    NEMA 6

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLE30B6V on Powermatic Associates is $166.00. Order now.

About the product

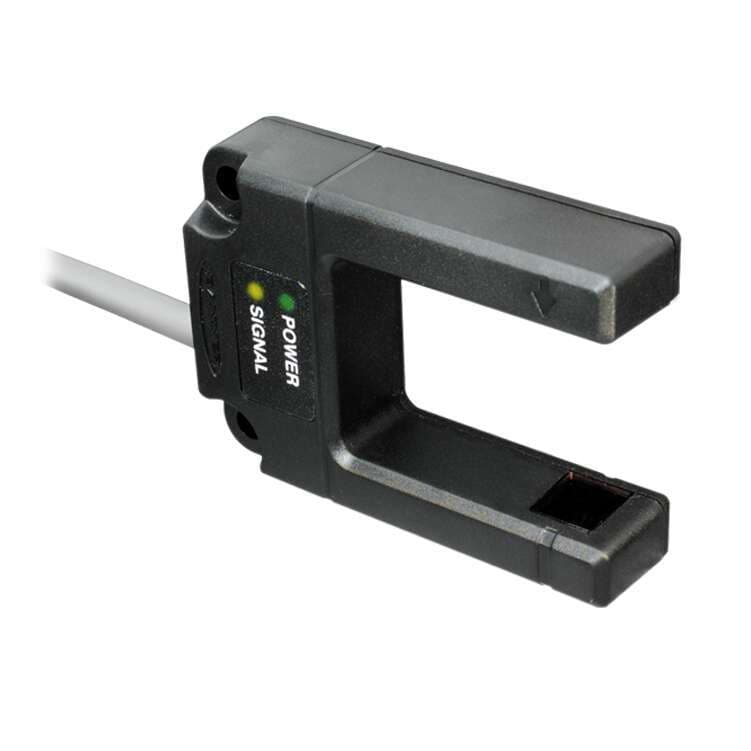

Banner Engineering SLE30B6V is a programmable photo-electric slot / optical fork sensor from the SLE30 Expert series. This sensor features a TEACH mode design and is housed in thermoplastic with an acrylic lens. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. The SLE30B6V operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function within an ambient air temperature range of -20 to +70°C. It is designed with a slot (U-shaped) shape, having a net width of 30mm for the passageway, and offers a degree of protection rated at IP67 NEMA 6. This sensor includes 1 x digital output (PNP/NPN transistor), has a sensing distance of 30mm, and boasts a rapid response time of 0.5ms / 0.0005 s. It supports both Light-ON and Dark-ON operating modes.
