SLPMR14-1250P12 Banner Electronic Components
Part#:SLPMR14-1250P12
Manufacturer:Banner
Category:Electronic Components
Product Lifecycle:Active
Product description

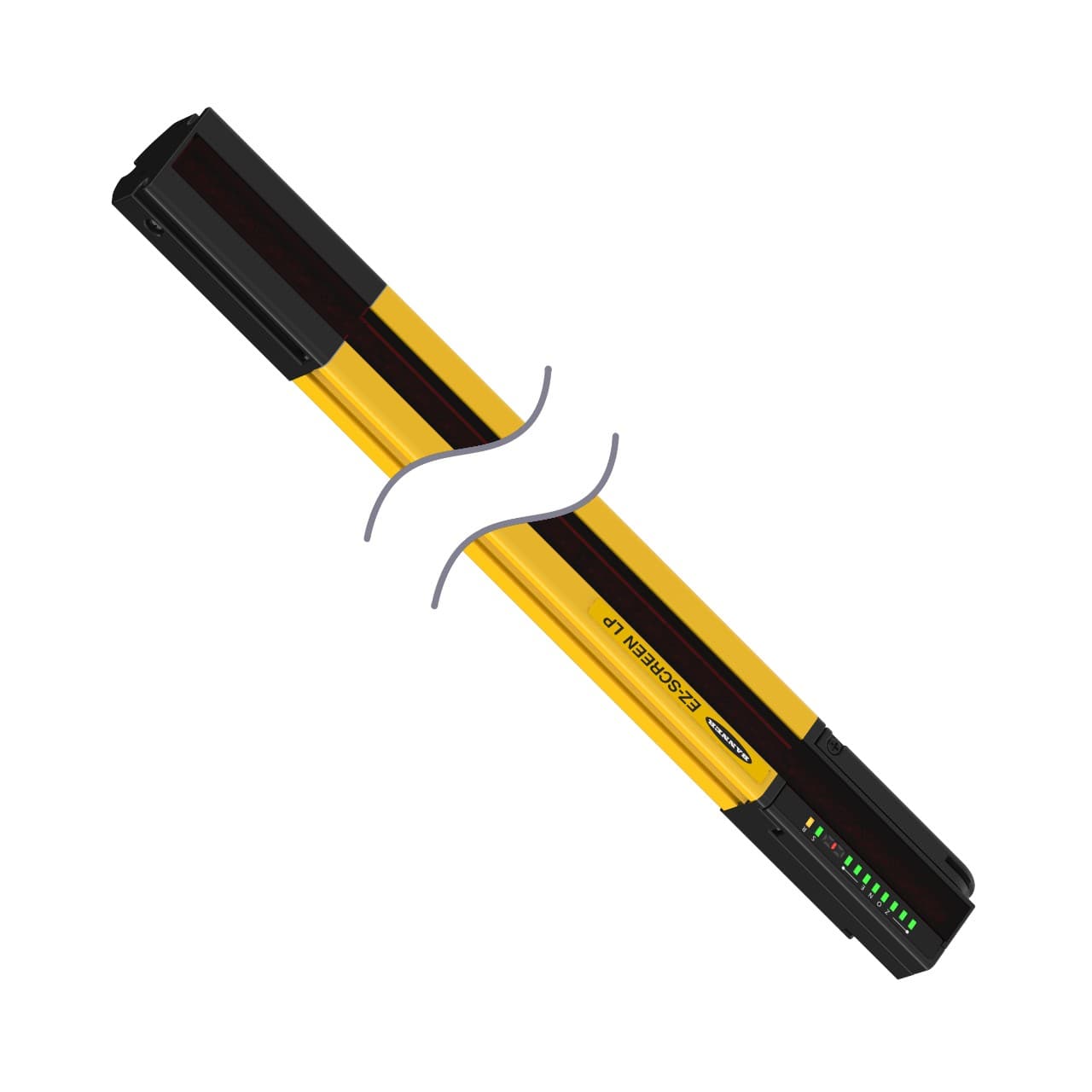

SLPMR14-1250P12 EZ-SCREEN Low Profile Muting Receiver, Res.: 14 mm Response (Tr): 31.5 ms; Beams: 125, Rng: 0.1 to 7 m (4 in - 23 ft); ht. 1250 mm (49.2 in), Connection: 300 mm pigtail; Euro M12 12-pin QD
Product Details
- Connector Type M12 Pigtail (Yellow)
- Operating Temperature 0 to +55 deg. C; RH 95%
- Shock 10g at 16ms (6000 cycles)
- OSSD Rating 24 V dc at 0.5 A each
- Safety Level Type 4
- PL Rating Ple
- Short Protection Yes
- Trip/Latch Output Selectable
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Fixed Blanking Yes
- Response Time 31.5
- Fault Output Yes
- Overall Length (mm) 1250
- Operating Voltage 24 V dc +/- 15%
- SIL Rating SIL3; CL3
- Test Input No
- Dimensions WxD (mm) 28 x 26
- Number of Pins (Receiver/Emitter) 12
- Reduced Resolution Yes
- Housing Material Aluminum; Zinc; Acrylic
- Housing Finish Yellow Polyester
- Recovery Time 33-220 / 109-800
- System Type Receiver
- Feature: End-to-End Sensing Yes
- Primary Housing Material Aluminum
- low-profile Yes
- Resolution (mm) 14
- Vibration 10-55 Hz at 0.35 mm
- Feature: Integral Muting Yes
- External Monitoring Device 1 or 2 Channel
- Operating Distance (m) 0.1 - 7
- Scan Code Selectable
- Supply Current 150 mA max.
- Defined Area Height (mm) 1250
- IP Rating IP65
- Electrical Safety Class III
- Auxiliary Output Yes
- Feature: ESD Safe No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
