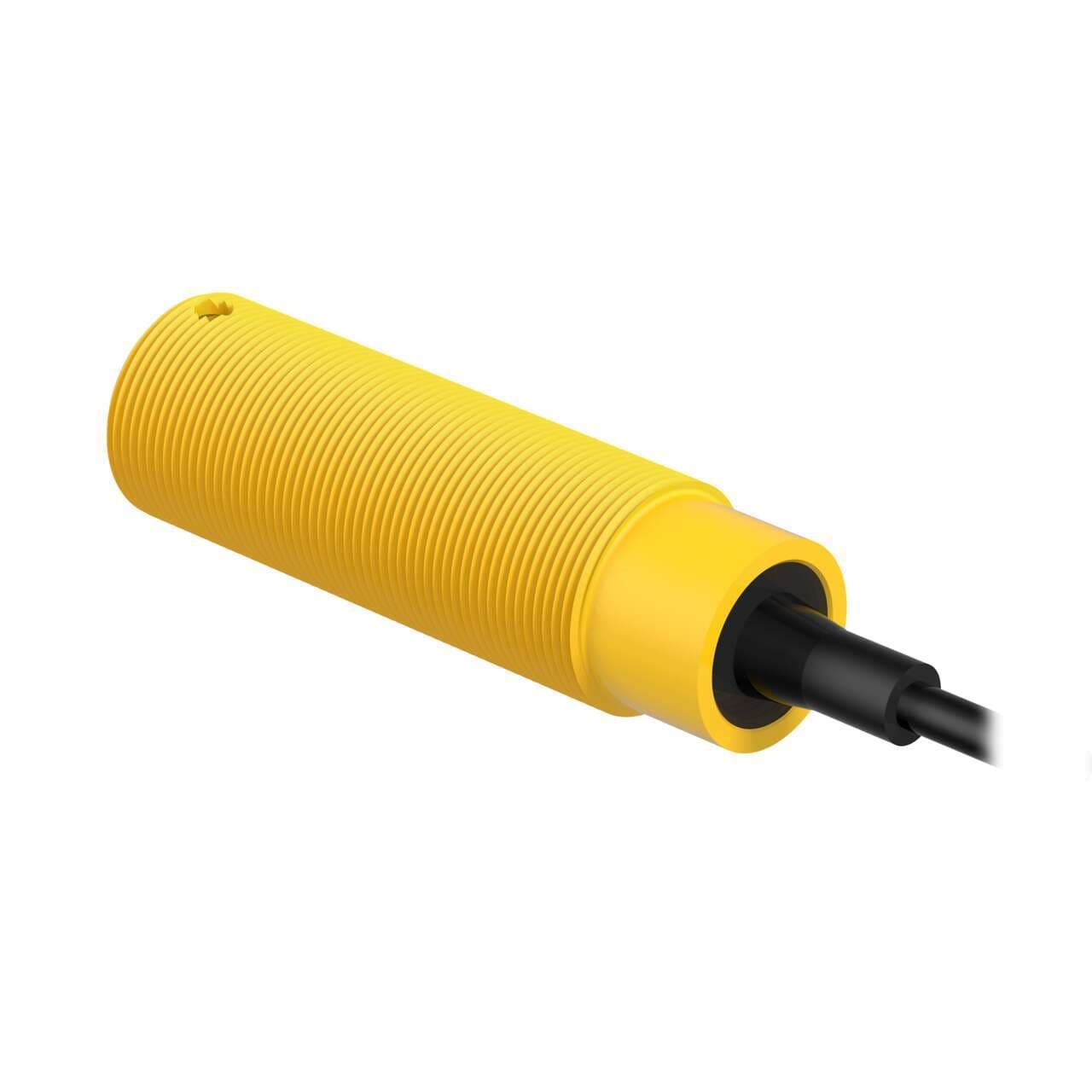

SMA30PEL W/30 Banner Proximity Sensors
Part#:SMA30PEL W/30
Alt. Part#:27730
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM30 Series: Emitter - Frequency A PBT Polyester; Range: 150 m; Input: 10-30 V dc /12-240 V ac; Output: Not Applicable; 9 m (30 ft) Cable
Product Details
- Weight 639.111128 g
- Country Of Origin MX
- Adjustments N/A
- Sensing Mode (Detailed) Emitter
- Operation N/A
- Special Feature: Remote Teach No
- Feature: Encapsulated Yes
- Outputs N/A
- Special Feature: Intrinsically Safe No
- IP Rating IP67
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic
- Delay at Power-up (ms) N/A
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Min Op. Temp. (°C) -40
- Number of Pins 2
- Opposed Mode Emitter/Receiver Emitter
- Housing Style Barrel
- Connection Cable
- NEMA Rating NEMA 6P
- DeviceNet No
- Power AC/DC Universal
- Max Op. Temp. (°C) 70
- Special Feature: Water Detection No
- Indicator LEDs
- Cable Length (m) 9
- Quick Disconnect Type No QD
- Repeatability (µs) N/A
- Barrel Diameter (mm) 30
- Max Sensing Distance (mm) 150000
- Output response time (ms) N/A
- Lens Material Acrylic
- Feature: Audible No
- IO Link No
- Sensing Mode (General) Opposed
- Power Supply/Supply Voltage 10-30 V dc or 12-240 V ac
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMA30PEL W/30 on Powermatic Associates is $280.00. Order now.
About the product
Banner Engineering SMA30PEL W/30 is a photo-electric sensor designed as part of the SM30 series, featuring a through-beam system with opposed mode "A" modulation frequency. This sensor functions as an emitter alone, housed in a thermoplastic material. It comes pre-wired with a 30ft / 9m cable terminated with bare end flying leads. The SMA30PEL W/30 operates on a supply voltage range of 12Vac-240Vac (200Vac / 220Vac nom.) for AC and 10Vdc-30Vdc (12Vdc / 24Vdc nom.) for DC. It is designed to work within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67 NEMA 6P. The sensor has an M30 cylindrical threaded/barrel shape, with a sensing distance of up to 150m. It utilizes infrared (IR) light with a wavelength of 880 nm and has a response time of 10ms / 0.01 s. The thread size for this sensor is M30.
