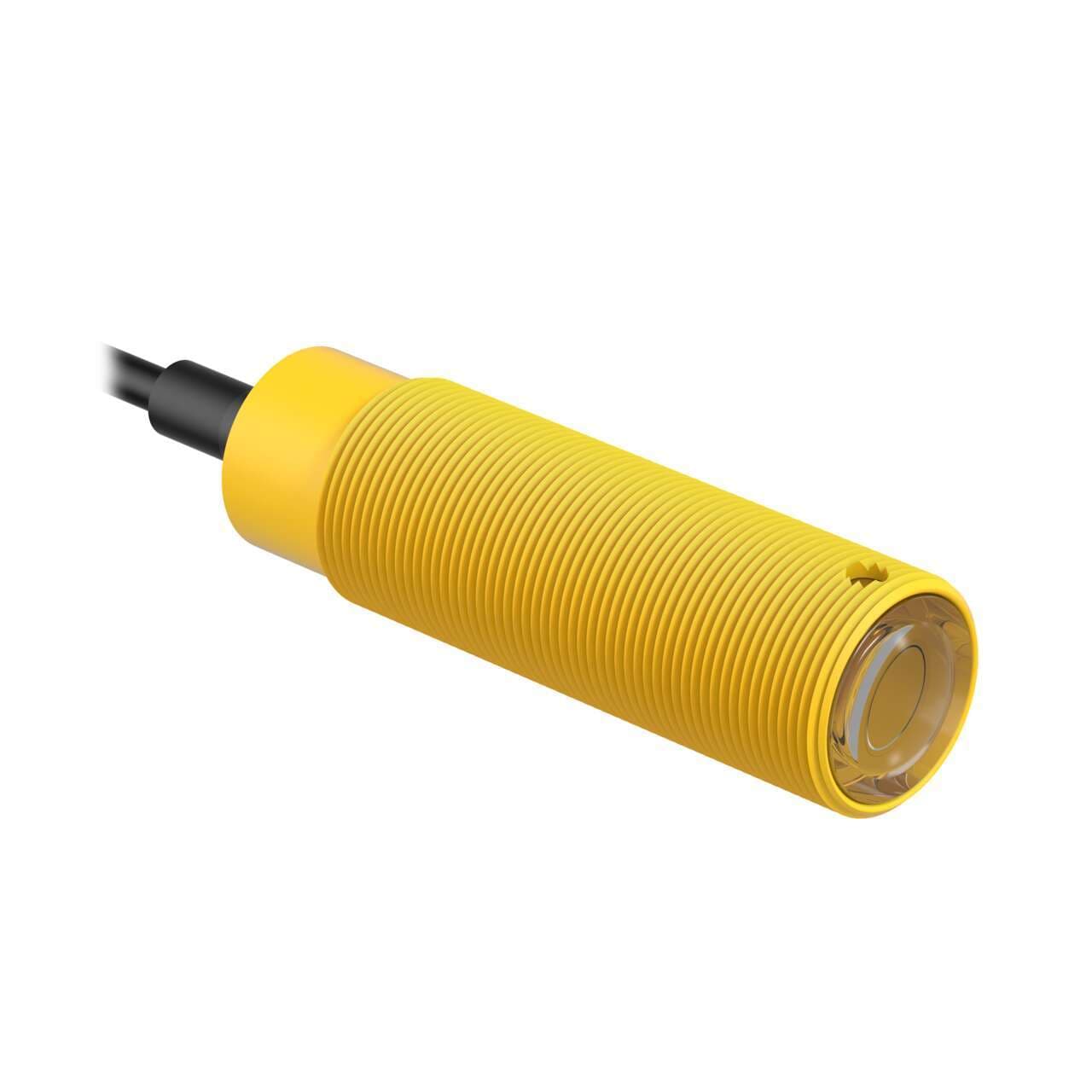

SMA30PELB W/30 Banner Proximity Sensors

SMA30PELB W/30 on Powermatic Associates
Banner
  • SMA30PELB W/30
  • SMA30PELB W/30

Part#:SMA30PELB W/30

Alt. Part#:30239

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

SM30 Series: Emitter - Frequency B PBT Polyester; Range: 150 m; Input: 10-30 V dc /12-240 V ac; Output: Not Applicable; 9 m (30 ft) Cable

Product Details

  • Weight
    648.63656 g
  • Country Of Origin
    MX
  • Sensing Beam
    Infrared LED
  • Sensing Mode (Detailed)
    Emitter
  • Number of Pins
    2
  • Feature: Timing (Hold/Delay)
    No
  • Housing Style
    Barrel
  • Min Op. Temp. (°C)
    -40
  • Max Sensing Distance (mm)
    150000
  • Max Op. Temp. (°C)
    70
  • Special Feature: Water Detection
    No
  • Outputs
    N/A
  • Operation
    N/A
  • Repeatability (µs)
    N/A
  • Adjustments
    N/A
  • Power
    AC/DC Universal
  • Power Supply/Supply Voltage
    10-30 V dc or 12-240 V ac
  • IO Link
    No
  • Primary Housing Material
    Thermoplastic
  • Output response time (ms)
    N/A
  • Lens Material
    Acrylic
  • Cable Length (m)
    9
  • Connection
    Cable
  • NEMA Rating
    NEMA 6P
  • Feature: Hazardous Area
    No
  • Quick Disconnect Type
    No QD
  • Special Feature: Intrinsically Safe
    No
  • IP Rating
    IP67
  • Feature: Encapsulated
    No
  • Sensing Mode (General)
    Opposed
  • Barrel Diameter (mm)
    30
  • Delay at Power-up (ms)
    N/A
  • Indicator
    LEDs
  • Special Feature: Remote Teach
    No
  • Feature: Chemical Resistant
    No
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • DeviceNet
    No
  • Opposed Mode Emitter/Receiver
    Emitter
  • Feature: Audible
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMA30PELB W/30 on Powermatic Associates is $306.00. Order now.

About the product

Banner Engineering SMA30PELB W/30 is a photo-electric sensor designed for through-beam system applications, specifically operating in opposed mode "B" modulation frequency. This part of the SM30 series features a thermoplastic housing and is pre-wired with a 30ft / 9m cable that terminates with bare end flying leads. It supports a supply voltage range of 12Vac-240Vac (with 200Vac / 220Vac nominal) and 10Vdc-30Vdc (with 12Vdc / 24Vdc nominal). The SMA30PELB W/30 can operate in ambient air temperatures ranging from -40 to +70 degrees Celsius and offers a degree of protection rated at IP67 NEMA 6P. Its M30 cylindrical threaded/barrel shape is designed for easy installation, and it has a sensing distance of up to 150m. The sensor emits infrared (IR) light with a wavelength of 880 nm and has a response time of 10ms / 0.01 s.

SMA30PELB W/30 Related Documents

03541.pdf
