SMA30PELC Banner Proximity Sensors
Part#:SMA30PELC
Alt. Part#:28294
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
SM30 Series: Emitter - Frequency C PBT Polyester; Range: 150 m; Input: 10-30 V dc /12-240 V ac; Output: Not Applicable; 2 m (6.5 ft) Cable
Product Details
- Weight 224.52804 g
- Country Of Origin MX
- Max Sensing Distance (mm) 150000
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Feature: Hazardous Area No
- Sensing Mode (General) Opposed
- Operation N/A
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
- Housing Style Barrel
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Outputs N/A
- Min Op. Temp. (°C) -40
- Repeatability (µs) N/A
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Emitter
- Quick Disconnect Type No QD
- Number of Pins 2
- Opposed Mode Emitter/Receiver Emitter
- Cable Length (m) 2
- Output response time (ms) N/A
- IP Rating IP67
- Feature: Encapsulated No
- Primary Housing Material Thermoplastic
- Connection Cable
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Sensing Beam Infrared LED
- Special Feature: Remote Teach No
- Adjustments N/A
- DeviceNet No
- Power Supply/Supply Voltage 10-30 V dc or 12-240 V ac
- Power AC/DC Universal
- Delay at Power-up (ms) N/A
- Indicator LEDs
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMA30PELC on Powermatic Associates is $247.00. Order now.
About the product

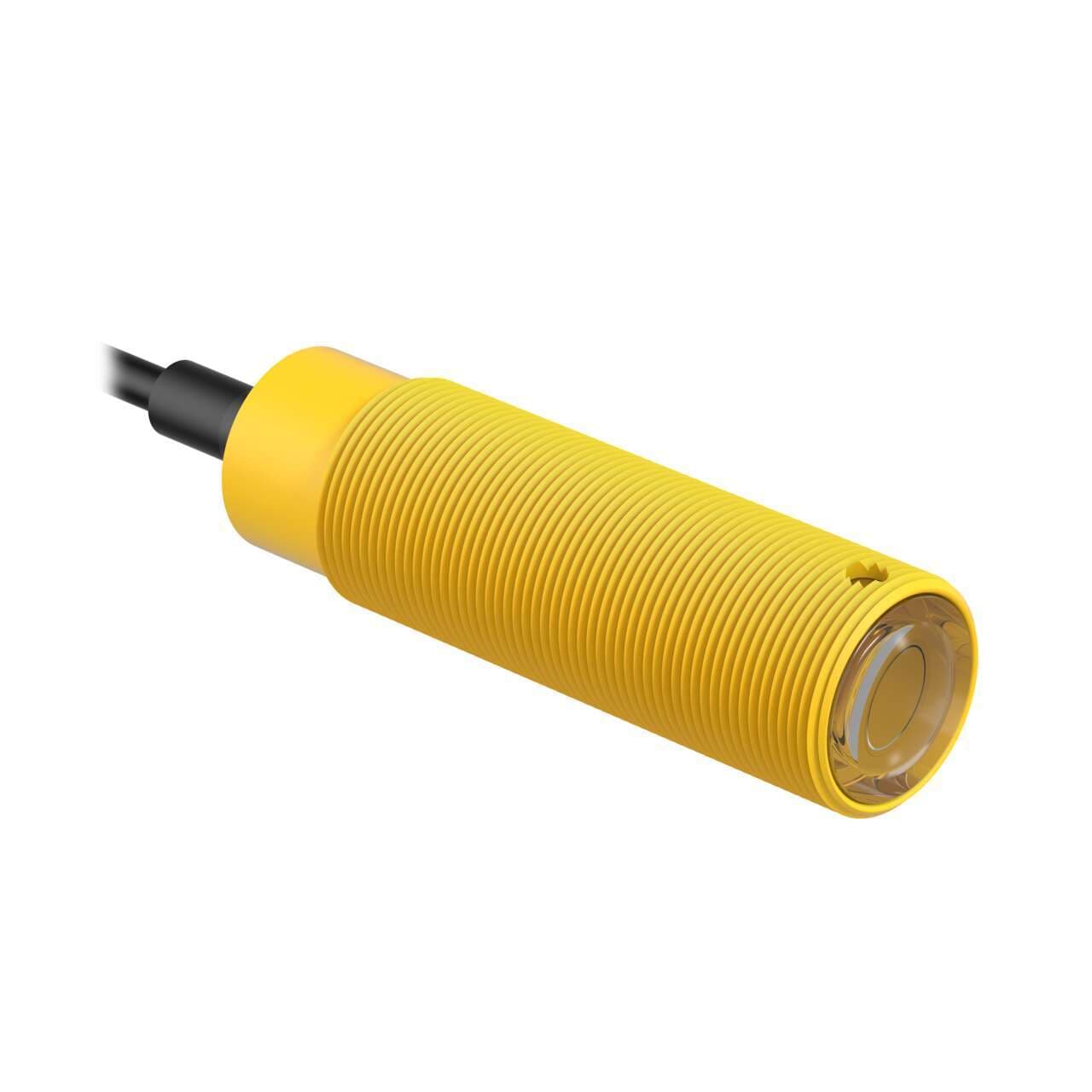

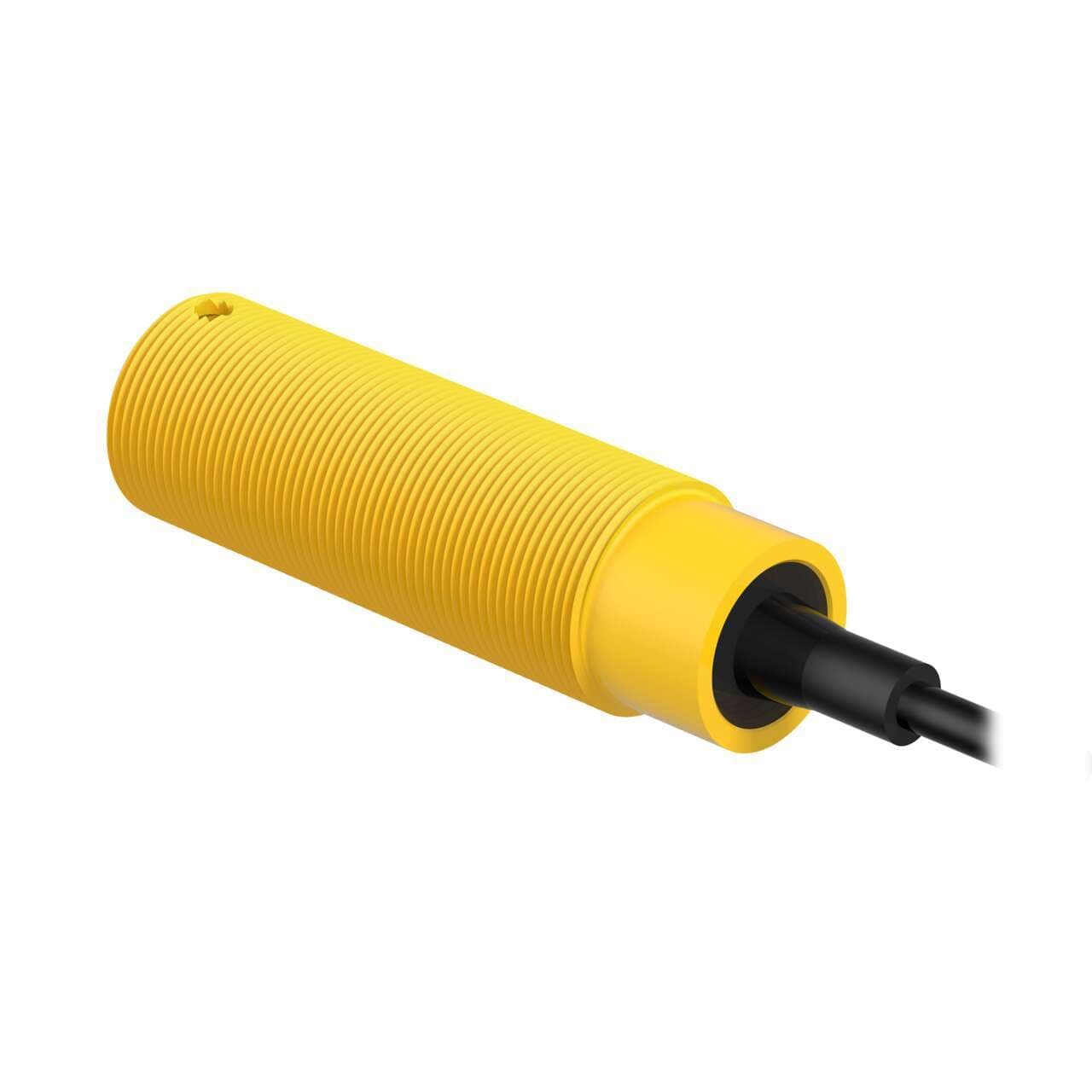

Banner Engineering SMA30PELC is a photo-electric sensor designed as part of the SM30 series, featuring a through-beam system with opposed mode "C" modulation frequency and is washdown rated. This sensor, functioning as an emitter alone, is housed in a thermoplastic material. It comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. The SMA30PELC operates on a supply voltage range of 12Vac-240Vac (200Vac / 220Vac nominal) for AC and 10Vdc-30Vdc (12Vdc / 24Vdc nominal) for DC. It is designed to work within an ambient air temperature range of -40 to +70°C. This sensor is protected to a degree of IP67, NEMA 6P, and IP69K, indicating a high level of protection against dust, water, and other environmental conditions. It features an M30 cylindrical threaded/barrel shape, with a sensing distance of up to 150m. The SMA30PELC utilizes infrared (IR) light with a wavelength of 880 nm and has a response time of 10ms / 0.01 s. The thread size for mounting is M30.
