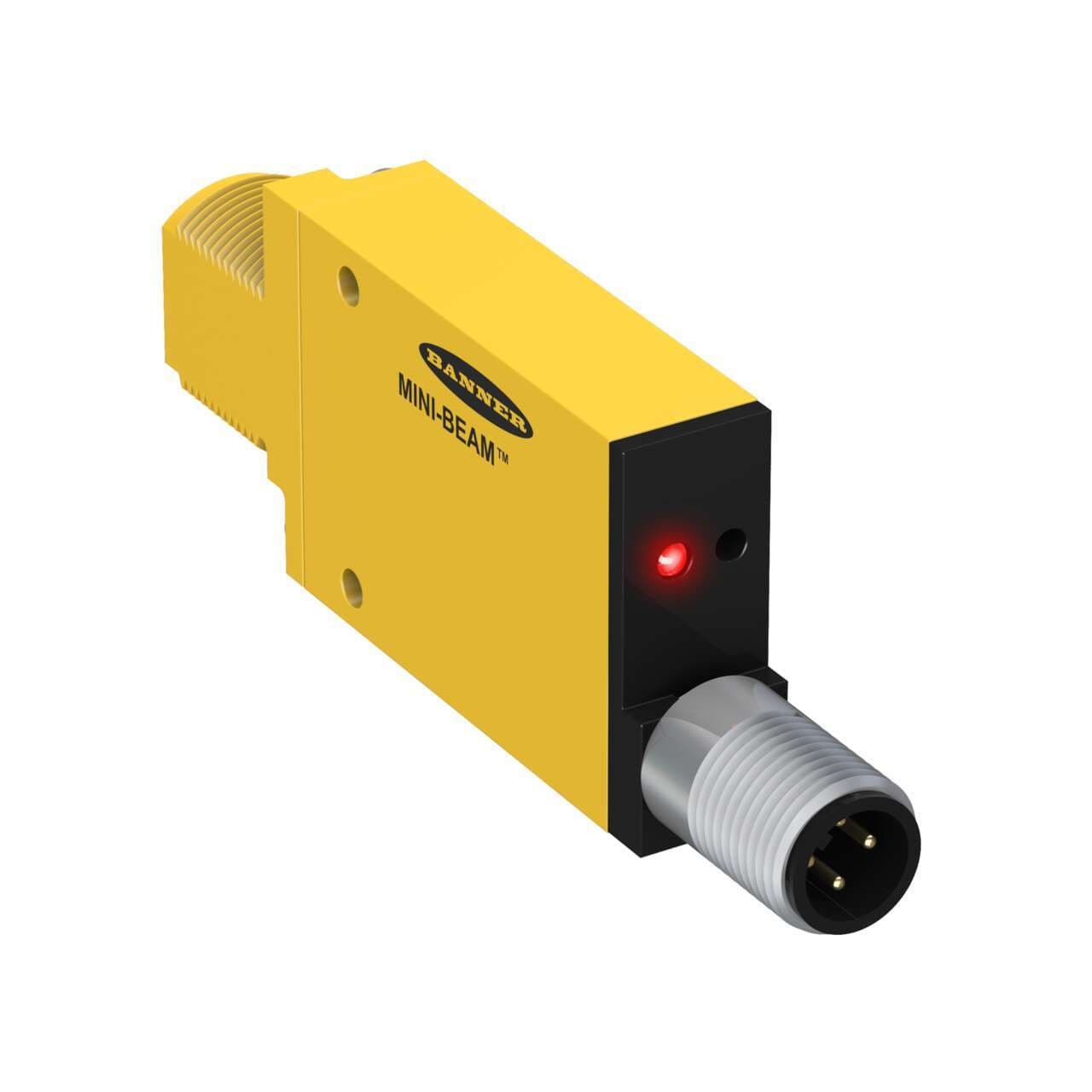

SMA31EPDQD Banner Proximity Sensors
Part#:SMA31EPDQD
Alt. Part#:26969
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: Clear Plastic Detection System Emitter; Range: 0 - 0.3 m; Input: 24-240 V ac; Output: Not Applicable; 3-pin Micro Integral QD
Product Details
- Weight 109.769264 g
- Country Of Origin US
- Power Supply/Supply Voltage 24-240 V ac
- Operation N/A
- Delay at Power-up (ms) 300
- Feature: Timing (Hold/Delay) No
- Primary Housing Material Thermoplastic
- Sensing Beam Wavelength 650
- Barrel Diameter (mm) 18
- DeviceNet No
- Sensing Beam Visible Red LED
- Repeatability (µs) 300
- Indicator LEDs
- Power AC
- Quick Disconnect Type 1/2 in. (Micro)
- Number of Pins 3
- Opposed Mode Emitter/Receiver Emitter
- IO Link No
- Outputs N/A
- Min Op. Temp. (°C) -20
- Special Feature: Water Detection No
- Adjustments Potentiometer
- Feature: Chemical Resistant No
- Max Sensing Distance (mm) 300
- Output response time (ms) 2 ON/1 OFF
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Sensing Mode (General) Opposed
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Clear Object Detection Yes
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 70
- Special Feature: Intrinsically Safe No
- IP Rating IP67
- Feature: Audible No
- Sensing Mode (Detailed) Emitter
- Connection Integral QD
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Feature: Encapsulated Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMA31EPDQD on Powermatic Associates is $156.00. Order now.
About the product
Banner Engineering SMA31EPDQD is a photo-electric sensor designed for through-beam system applications with opposed mode potentiometer adjustment. This sensor, part of the SM2A312 series, functions as an emitter alone and is housed in a thermoplastic casing with an acrylic lens. It comes pre-equipped with a 3-pin 1/2" micro connector for connectivity and operates on a supply voltage ranging from 24Vac to 240Vac (200Vac / 220Vac nominal). The SMA31EPDQD features an M18 threaded mount for installation and can operate within an ambient air temperature range of -20 to +70°C. It offers a high degree of protection, rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, and 13, making it suitable for various environmental conditions. The sensor has a rectangular shape, a sensing distance of 300mm, and emits a visible red light with a wavelength of 650 nm. Its response time is quick at 2ms / 0.002 s, and it supports both Light-ON and Dark-ON operating modes.
