SXA-8100D Banner Cordsets

Name: SXA-8100D
Brand: Banner
Price: 183 USD
Availability: BackOrder

Part#:SXA-8100D

Alt. Part#:806305

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Product description

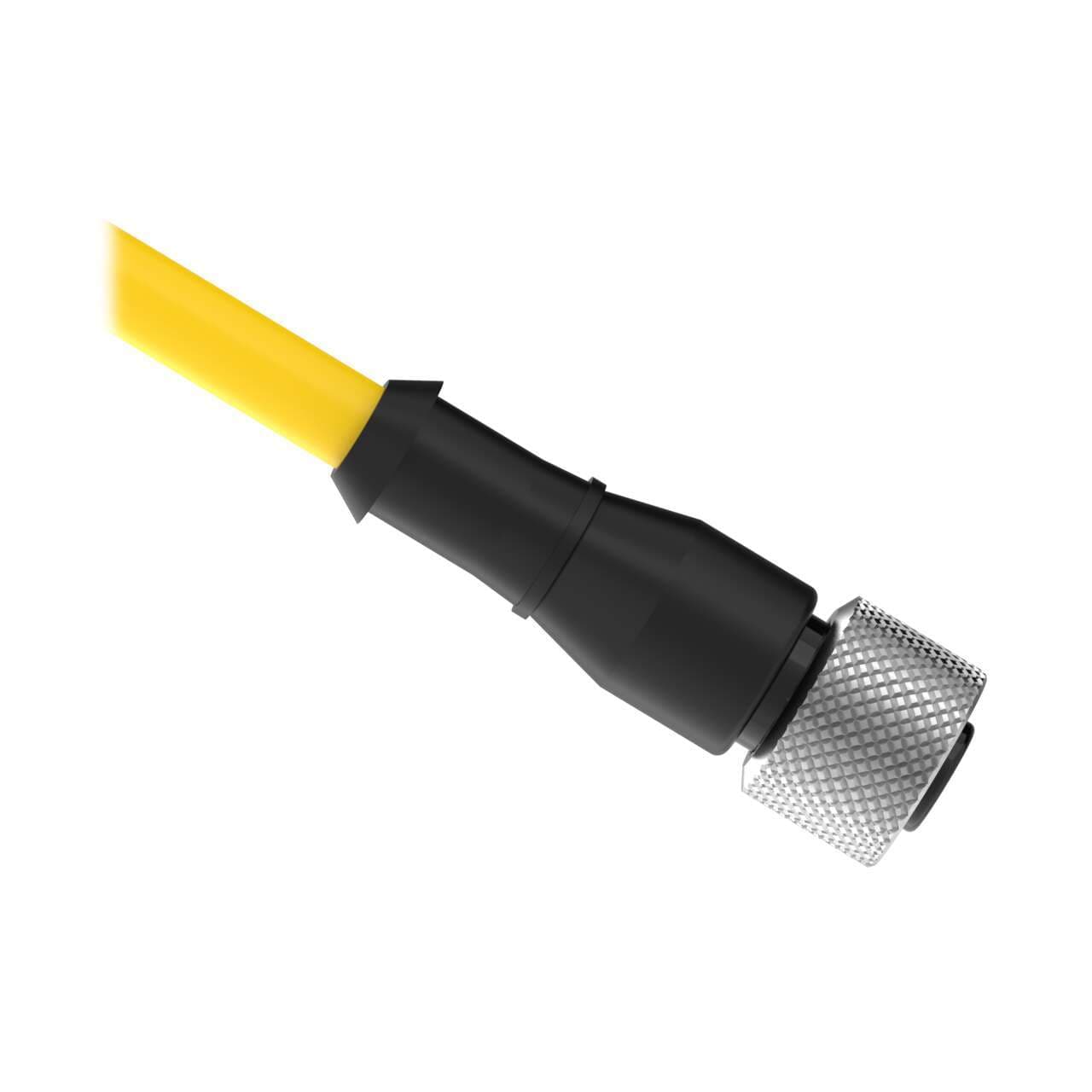

Cordset: Single Ended M12; 8-pin Straight Female; 30.48 m 8x24 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nut

Product Details

Weight
1905.0864 g
Country Of Origin
TW
Number of Connectors
1
Cordset Length (m)
30.48
Primary Number of Conductors
8
Trunk Length (m)
No Trunk
Coupling Material/Color
Nickel Plated Brass
Cable Jacket Color
Yellow
Voltage Rating (V)
75 V ac/dc
Feature: Hazardous Area
No
Outside Cable Diameter (mm)
6.0
Primary Connector Type
EURO
Current Rating (A)
2.0
Primary Coupling Method
M12 Single Key
Primary AWG
22
Cable Jacket Material
PVC
IP Rating
IP67
Secondary Connector Type
Flying Leads
Connector Body Material/Color
PUR Black
Primary Gender
Female

Maximum Temp. (°C)

105

Primary Orientation

Straight

Number of Contacts

Shield/No Shield

No Shield

Minimum Temp. (°C)

-40

Oil/Grease Resistant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SXA-8100D on Powermatic Associates is $183.00. Order now.

About the product

Banner Engineering SXA-8100D is a pre-assembled cable/cordset designed with a single-ended configuration. It features an 8-pin Euro-style M12 female connector on one end and bare end flying leads on the other, providing flexibility for various connection needs. The cable has a length of 100ft (30m), accommodating installations that require extended reach.
