T18-2VNRL-Q8 Banner Proximity Sensors
Part#:T18-2VNRL-Q8
Alt. Part#:802604
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
T18-2 Series: Receiver; Range: 25 m; Input: 10-30 V dc; Outputs: Complementary NPN; 4-pin M12 Integral QD
Product Details
- Weight 29.937072 g
- Country Of Origin MX
- Adjustments N/A
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 70
- Special Feature: Water Detection No
- Power DC
- Operation Light/Dark Operate
- Quick Disconnect Type M12 (Euro)
- Barrel Diameter (mm) 18
- Feature: Audible No
- Housing Style Barrel
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6P
- Feature: Hazardous Area No
- Feature: Encapsulated Yes
- Sensing Mode (General) Opposed
- Input/Output Discrete
- Repeatability (µs) 170
- Opposed Mode Emitter/Receiver Receiver
- Feature: Chemical Resistant Yes
- Sensing Mode (Detailed) Receiver
- Max Op. Relative Humidity [%] 95% @ 50°C
- Sensing Beam Wavelength 624
- Feature: Ecolab Certified Yes
- Outputs NPN
- Max Sensing Distance (mm) 25000
- Number of Pins 4
- Lens Material Acrylic
- DeviceNet No
- Sensing Beam Visible Red or IR
- Special Feature: Remote Teach No
- Delay at Power-up (ms) 500
- Indicator Indicator LEDs
- IO Link No
- Connection Integral QD
- Output response time (ms) 1.5
- Feature: Washdown Rated Yes
- Min Op. Temp. (°C) -40
- Power Supply/Supply Voltage 10-30 V dc
- IP Rating IP67, IP68, IP69
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18-2VNRL-Q8 on Powermatic Associates is $71.00. Order now.
About the product

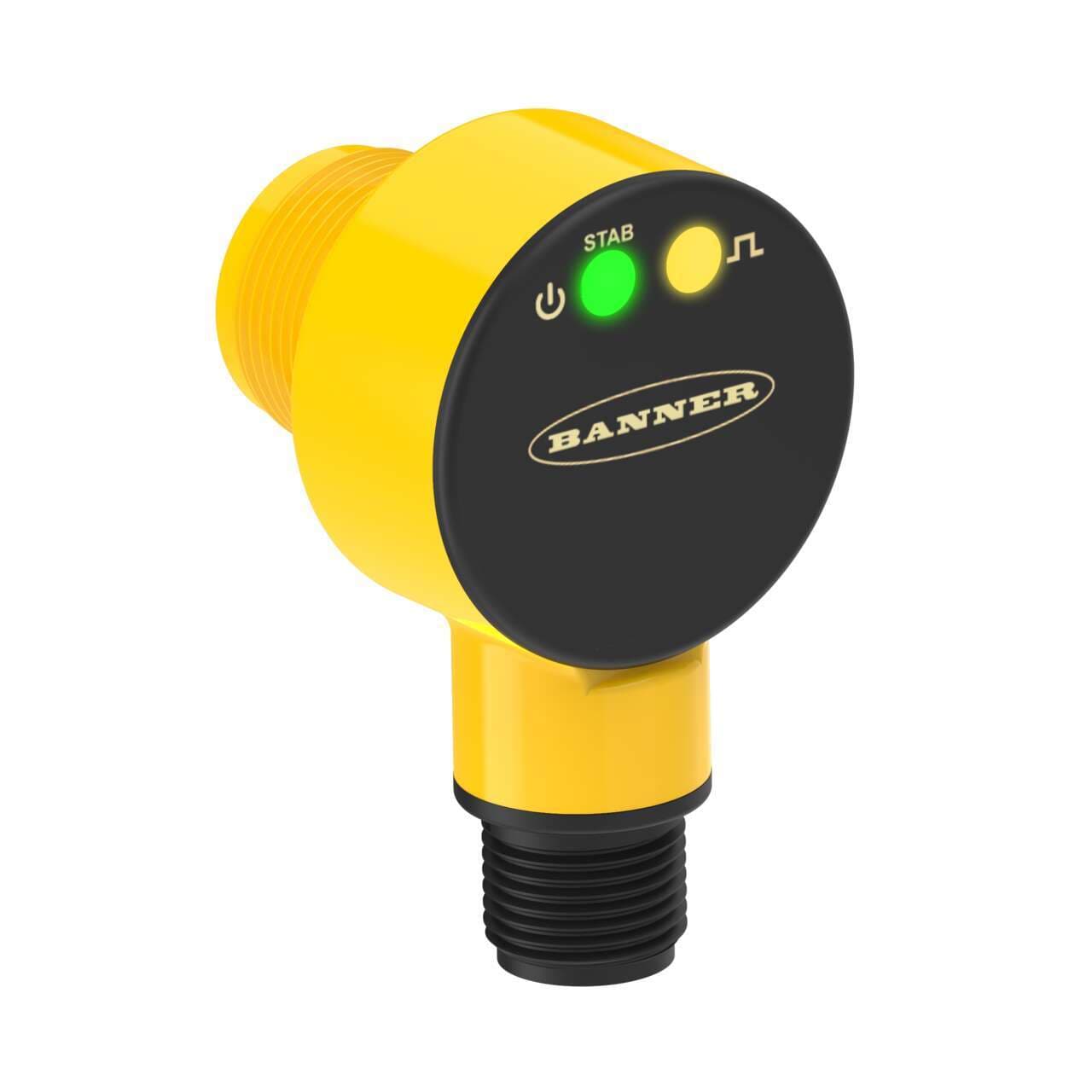

Banner Engineering T18-2VNRL-Q8 is a photo-electric sensor designed as part of the T18-2 series, featuring a through-beam system in an opposed mode configuration. This sensor functions as a receiver alone, housed in a thermoplastic with an acrylic lens. It comes pre-equipped with a 4-pin Euro-style M12 connector for connectivity. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C. The T18-2VNRL-Q8 offers a high degree of protection with ratings of IP67, IP68, IP69K, and NEMA 6P, making it suitable for harsh environmental conditions. Its shape is an M18 cylindrical threaded/barrel, and it features 1 x digital output (NPN transistor; complementary). The sensing distance is up to 25m, utilizing visible red light for detection, and it has a rapid response time of 1.5ms or 0.0015 seconds. Operating modes include Light-ON and Dark-ON, with a thread size of M18.
