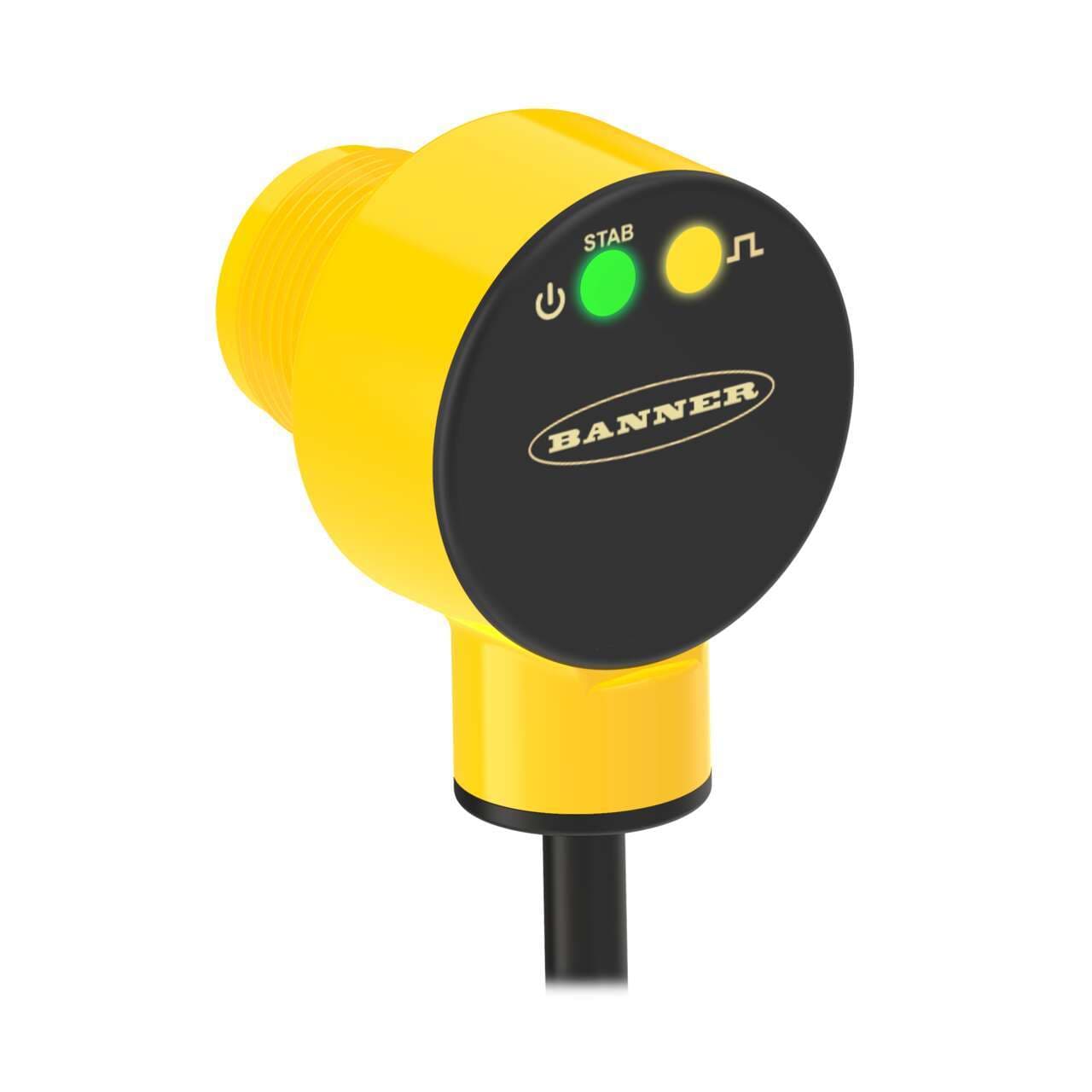

T18-2VPFF100IR-2M Banner Proximity Sensors
Part#:T18-2VPFF100IR-2M
Alt. Part#:802704
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
T18-2 Series: IR Fixed Field; Range: 100 mm; Input: 10-30 V dc; Outputs: complementary PNP; 2 m 4-conductor PVC Cable
Product Details
- Weight 90.7184 g
- Country Of Origin MX
- Primary Housing Material Thermoplastic
- Small Visible Spot LED
- Output response time (ms) 1.5
- IP Rating IP67, IP68, IP69
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Special Feature: Intrinsically Safe No
- Feature: Chemical Resistant Yes
- Operation Light/Dark Operate
- Feature: Audible No
- Number of Pins 4
- Housing Style Barrel
- Quick Disconnect Type No QD
- Special Feature: Water Detection No
- Lens Material Acrylic
- Indicator Indicator LEDs
- Delay at Power-up (ms) 500
- Sensing Mode (General) Proximity
- Special Feature: Remote Teach No
- Sensing Beam Infrared LED
- Input/Output Discrete
- Power Supply/Supply Voltage 10-30 V dc
- Connection Cable
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Barrel Diameter (mm) 18
- Opposed Mode Emitter/Receiver N/A
- Feature: Washdown Rated Yes
- Feature: Encapsulated Yes
- Cable Length (m) 2
- Outputs PNP
- Max Sensing Distance (mm) 100
- Min Op. Temp. (°C) -40
- Repeatability (µs) 100
- Sensing Beam Wavelength 870
- Adjustments N/A
- DeviceNet No
- IO Link No
- Power DC
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Timing (Hold/Delay) No
- Feature: Ecolab Certified Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18-2VPFF100IR-2M on Powermatic Associates is $126.00. Order now.
About the product
Banner Engineering T18-2VPFF100IR-2M is a fixed-field photo-electric sensor from the T18-2 series, designed with a background suppression system. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. This sensor operates within a supply voltage range of 10Vdc-30Vdc, with nominal values at 12Vdc and 24Vdc. It is capable of functioning in ambient air temperatures ranging from -40 to +70°C. The T18-2VPFF100IR-2M offers a high degree of protection with ratings of IP67, IP68, IP69K, and NEMA 6P, making it suitable for harsh environmental conditions. Its M18 cylindrical threaded/barrel shape facilitates easy installation. This sensor provides one digital output (PNP transistor; complementary), has a sensing distance of 100mm, and utilizes infrared (IR) light with a response time of 1.5ms / 0.0015 s. It supports both Light-ON and Dark-ON operating modes and is equipped with an M18 thread size.
