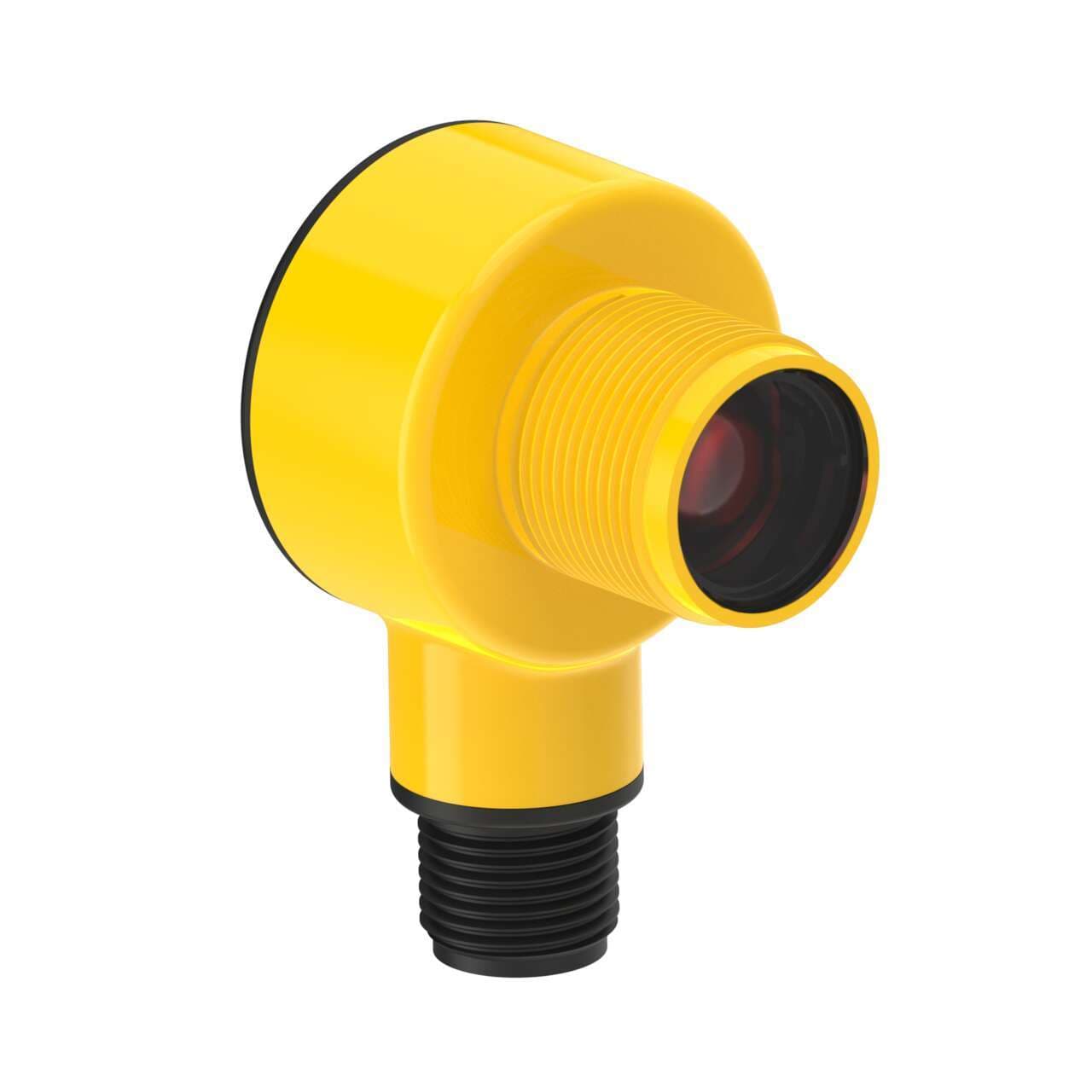

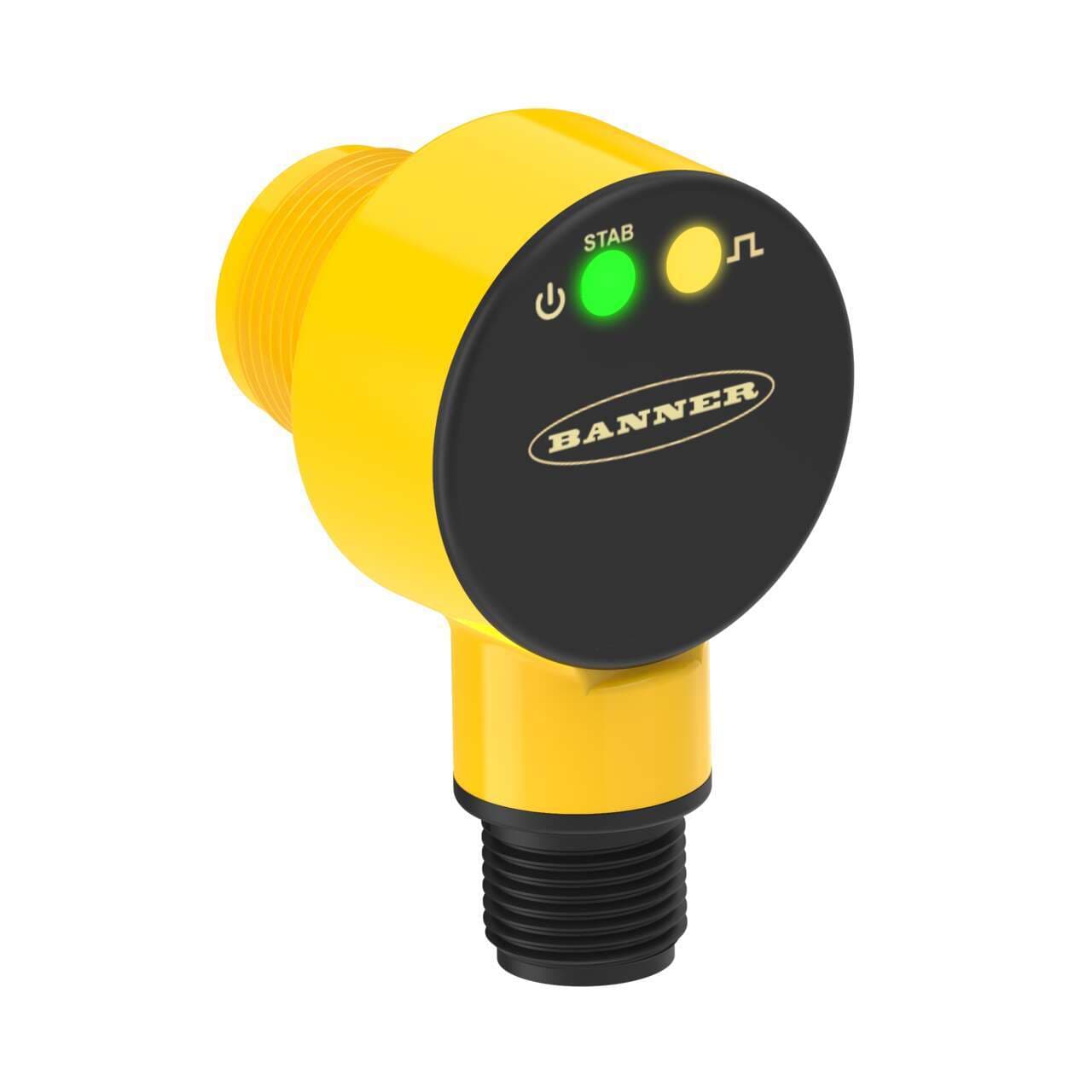

T18-2VPFF100IR-Q8 Banner Proximity Sensors
Part#:T18-2VPFF100IR-Q8
Alt. Part#:802706
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
T18-2 Series: IR Fixed Field; Range: 100 mm; Input: 10-30 V dc; Outputs: Complementary PNP; 4-pin M12 Integral QD
Product Details
- Weight 29.937072 g
- Country Of Origin MX
- Small Visible Spot LED
- Housing Style Barrel
- Delay at Power-up (ms) 500
- DeviceNet No
- Indicator Indicator LEDs
- Power DC
- Feature: Washdown Rated Yes
- Quick Disconnect Type M12 (Euro)
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Ecolab Certified Yes
- Barrel Diameter (mm) 18
- Min Op. Temp. (°C) -40
- Special Feature: Water Detection No
- IP Rating IP67, IP68, IP69
- Feature: Encapsulated Yes
- Connection Integral QD
- Feature: Timing (Hold/Delay) No
- Adjustments N/A
- Feature: Audible No
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Hazardous Area No
- Input/Output Discrete
- Max Op. Temp. (°C) 70
- Output response time (ms) 1.5
- NEMA Rating NEMA 6P
- Outputs PNP
- Sensing Beam Wavelength 870
- Feature: Chemical Resistant Yes
- Sensing Beam Infrared LED
- Operation Light/Dark Operate
- Primary Housing Material Thermoplastic
- Number of Pins 4
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 100
- Max Sensing Distance (mm) 100
- Special Feature: Remote Teach No
- Sensing Mode (General) Proximity
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18-2VPFF100IR-Q8 on Powermatic Associates is $119.00. Order now.
About the product
Banner Engineering T18-2VPFF100IR-Q8 is a fixed-field photo-electric sensor from the T18-2 series, designed with a background suppression system. It features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector. This sensor operates within a supply voltage range of 10Vdc-30Vdc, with nominal values at 12Vdc and 24Vdc, and can function in ambient air temperatures ranging from -40 to +70°C. It offers a high degree of protection with ratings of IP67, IP68, IP69K, and NEMA 6P, making it suitable for harsh environments. The sensor has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (PNP transistor; complementary), and provides a sensing distance of 100mm. It utilizes infrared (IR) light, has a response time of 1.5ms / 0.0015 s, and supports both Light-ON and Dark-ON operating modes. The thread size for installation is M18.
