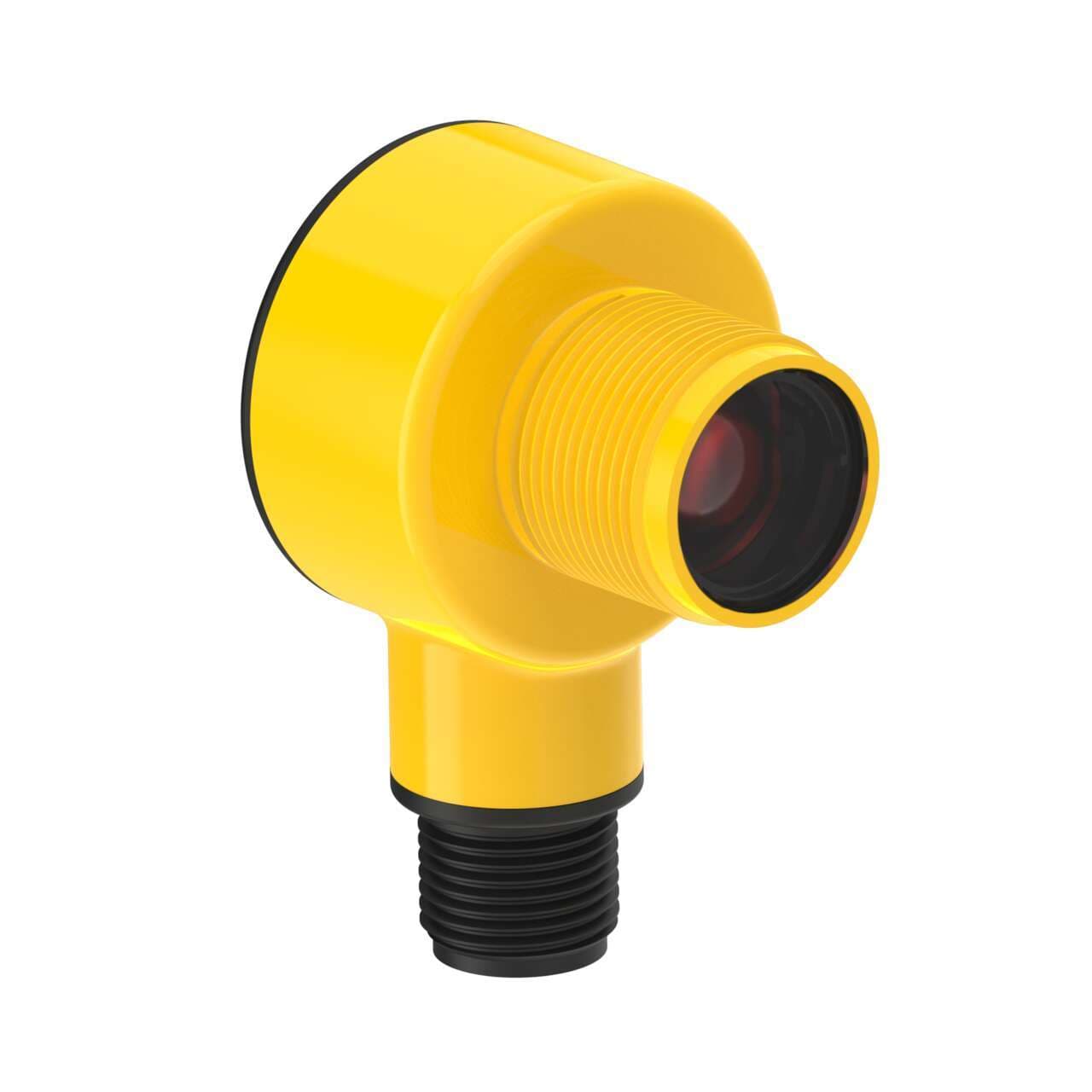

T18-2VPFF75IR-Q8 Banner Proximity Sensors
Part#:T18-2VPFF75IR-Q8
Alt. Part#:802700
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
T18-2 Series: IR Fixed Field; Range: 75 mm; Input: 10-30 V dc; Outputs: Complementary PNP; 4-pin M12 Integral QD
Product Details
- Weight 27.21552 g
- Country Of Origin MX
- NEMA Rating NEMA 6P
- Feature: Washdown Rated Yes
- IO Link No
- Connection Integral QD
- Output response time (ms) 1.5
- Primary Housing Material Thermoplastic
- Max Sensing Distance (mm) 75
- Sensing Beam Wavelength 870
- Lens Material Acrylic
- Feature: Hazardous Area No
- Operation Light/Dark Operate
- Barrel Diameter (mm) 18
- Feature: Ecolab Certified Yes
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Relative Humidity [%] 95% @ 50°C
- Special Feature: Remote Teach No
- Number of Pins 4
- Opposed Mode Emitter/Receiver N/A
- Small Visible Spot LED
- Input/Output Discrete
- DeviceNet No
- Special Feature: Water Detection No
- Adjustments N/A
- Feature: Audible No
- Quick Disconnect Type M12 (Euro)
- Sensing Mode (Detailed) Background Suppression (Fixed)
- IP Rating IP67, IP68, IP69
- Feature: Timing (Hold/Delay) No
- Power DC
- Min Op. Temp. (°C) -40
- Repeatability (µs) 100
- Feature: Encapsulated Yes
- Outputs PNP
- Special Feature: Intrinsically Safe No
- Feature: Chemical Resistant Yes
- Sensing Beam Infrared LED
- Housing Style Barrel
- Max Op. Temp. (°C) 70
- Delay at Power-up (ms) 500
- Indicator Indicator LEDs
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18-2VPFF75IR-Q8 on Powermatic Associates is $119.00. Order now.
About the product

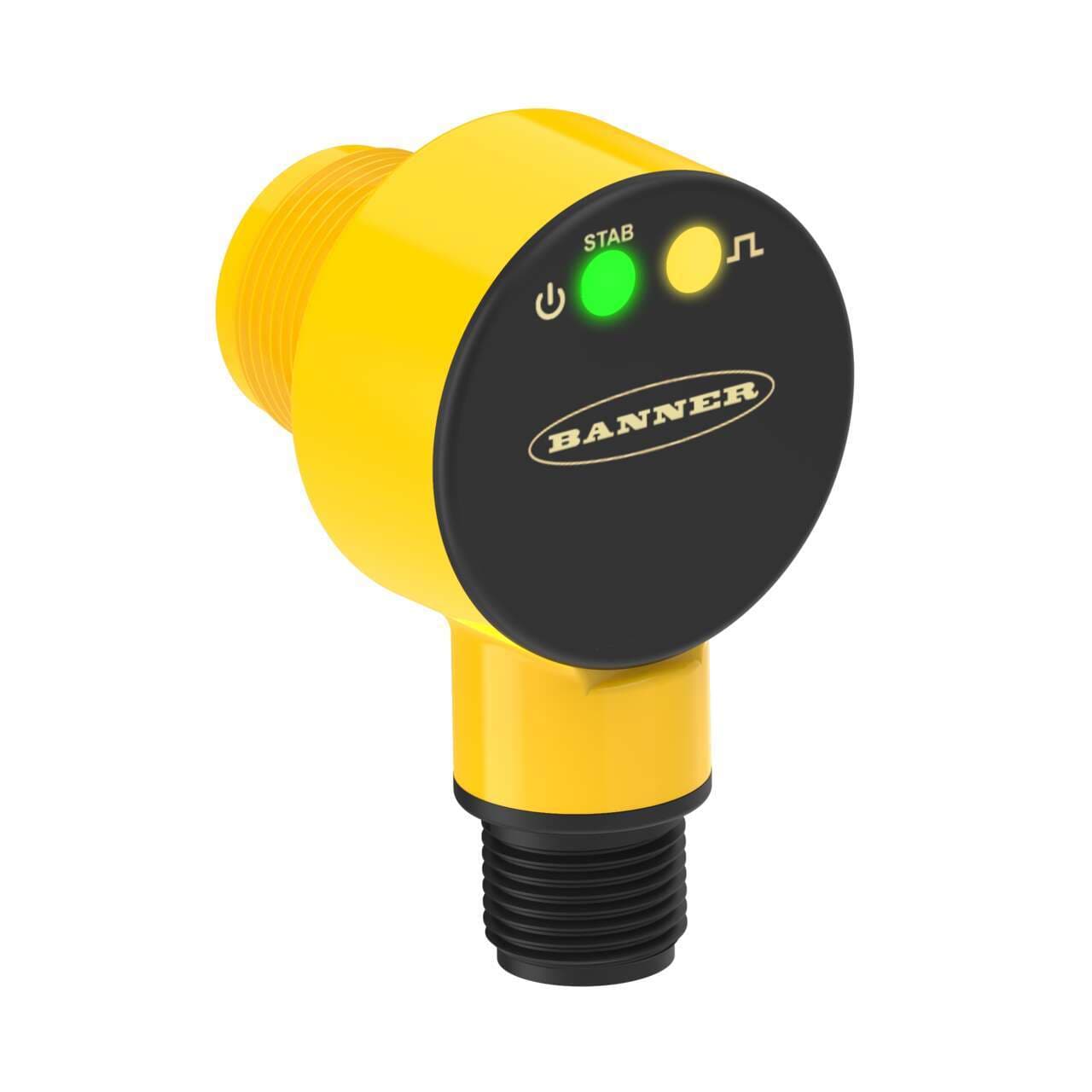

Banner Engineering T18-2VPFF75IR-Q8 is a fixed-field photo-electric sensor within the T18-2 series, featuring a background suppression system. This sensor is housed in thermoplastic with an acrylic lens and comes pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. Designed for operation in ambient air temperatures ranging from -40 to +70°C, it offers a high degree of protection with ratings of IP67, IP68, IP69K, and NEMA 6P. The sensor has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (PNP transistor; complementary), and provides a sensing distance of 75mm. It emits infrared (IR) light, has a response time of 1.5ms / 0.0015 s, and supports both Light-ON and Dark-ON operating modes, with a thread size of M18.
