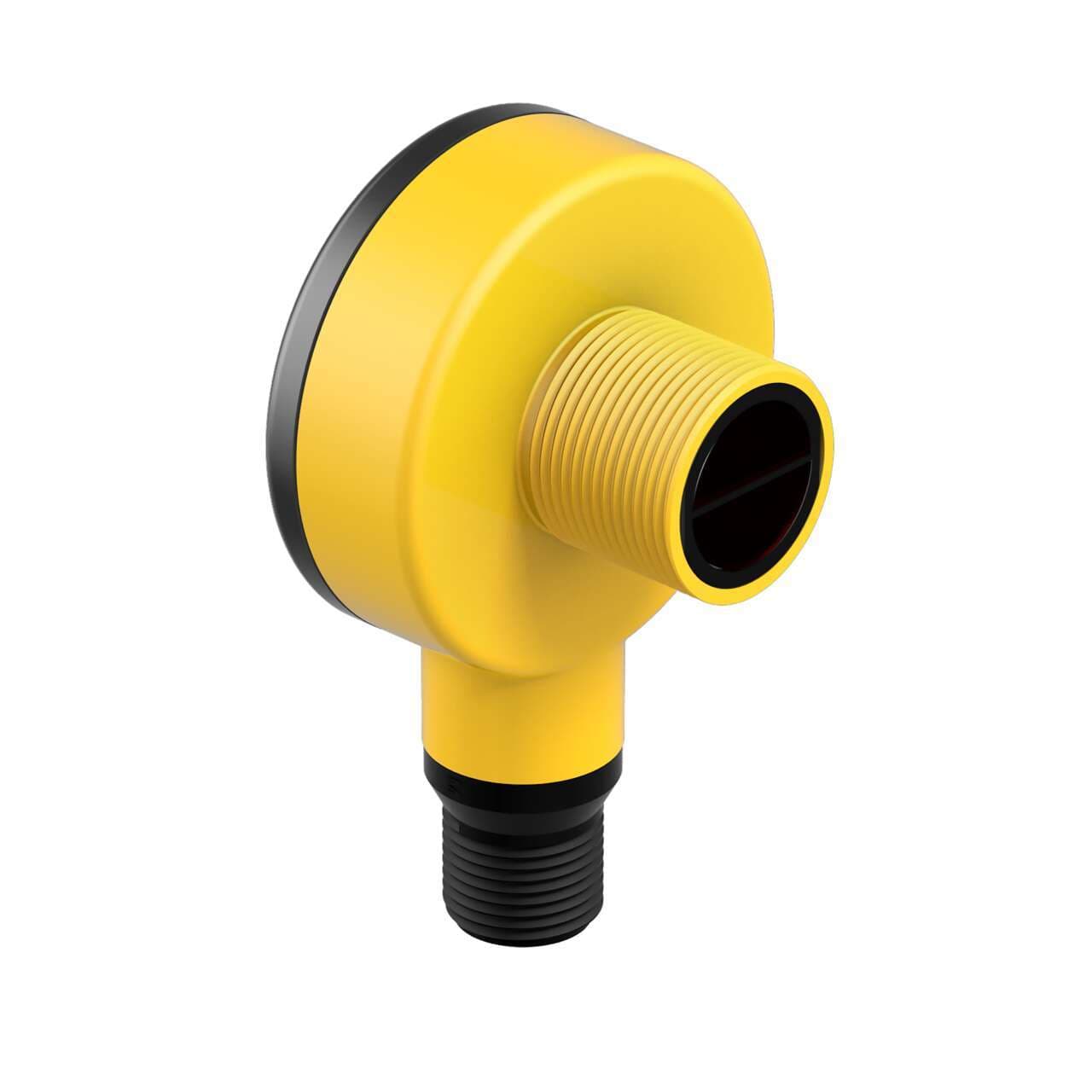

T18AW3LQ3 Banner Proximity Sensors

T18AW3LQ3 on Powermatic Associates
Banner
  • T18AW3LQ3
  • T18AW3LQ3

Part#:T18AW3LQ3

Alt. Part#:36917

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

EZ-BEAM T18 Series: Threaded Right-Angle Retro; Range: 2 m; Input: 20-250 V ac; Ouput: Light Operate; QD uses Turck cordset: WAKW4.5T-2

Product Details

  • Weight
    49.89512 g
  • Country Of Origin
    US
  • Housing Style
    Barrel
  • Max Op. Temp. (°C)
    70
  • Feature: Washdown Rated
    Yes
  • Lens Material
    Acrylic
  • Input/Output
    Solid-State AC Switch
  • Quick Disconnect Type
    M12 (Euro)
  • Number of Pins
    5
  • Feature: Timing (Hold/Delay)
    No
  • Sensing Mode (General)
    Retroreflective
  • Operation
    Light Operate
  • Special Feature: Water Detection
    No
  • Adjustments
    Potentiometer
  • Outputs
    Solid-State AC Switch
  • Output response time (ms)
    16
  • Feature: Ecolab Certified
    Yes
  • IO Link
    No
  • Primary Housing Material
    Thermoplastic
  • Special Feature: Intrinsically Safe
    No
  • IP Rating
    IP67, IP69
  • Opposed Mode Emitter/Receiver
    N/A
  • Sensing Beam
    Infrared LED
  • Min Op. Temp. (°C)
    -40
  • Repeatability (µs)
    4000
  • Indicator
    LEDs
  • Power Supply/Supply Voltage
    20-250 V ac
  • Special Feature: Remote Teach
    No
  • NEMA Rating
    NEMA 6P
  • DeviceNet
    No
  • Power
    AC
  • Max Sensing Distance (mm)
    2000
  • Delay at Power-up (ms)
    100
  • Barrel Diameter (mm)
    18
  • Sensing Mode (Detailed)
    Non-Polarized
  • Connection
    Integral QD
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    Yes
  • Feature: Chemical Resistant
    Yes
  • Feature: Audible
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18AW3LQ3 on Powermatic Associates is $121.00. Order now.

About the product

Banner Engineering T18AW3LQ3 is a photo-electric sensor from the T18 series, designed in a retro-reflective mode. This sensor features a thermoplastic housing with an acrylic lens and has an M18 cylindrical threaded/barrel shape. It is pre-equipped with a 5-pin Euro-style M12 connector for connectivity and operates within a supply voltage range of 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.). The T18AW3LQ3 offers a threaded mount for installation, can operate in ambient air temperatures ranging from -40 to +70°C, and boasts a degree of protection rated at IP67, IP69K, and NEMA 6P. It has a diameter of 40mm and provides one digital output (Solid-state AC output; SPST contact type) with a sensing distance of up to 2m. The sensor emits infrared light with a wavelength of 950 nm, operates in a Light-ON mode, and has a response time of 16ms / 0.016 s.

T18AW3LQ3 Related Documents

T18 Series Sensors (AC Voltage) -- Datasheet-1630949638933.pdf
