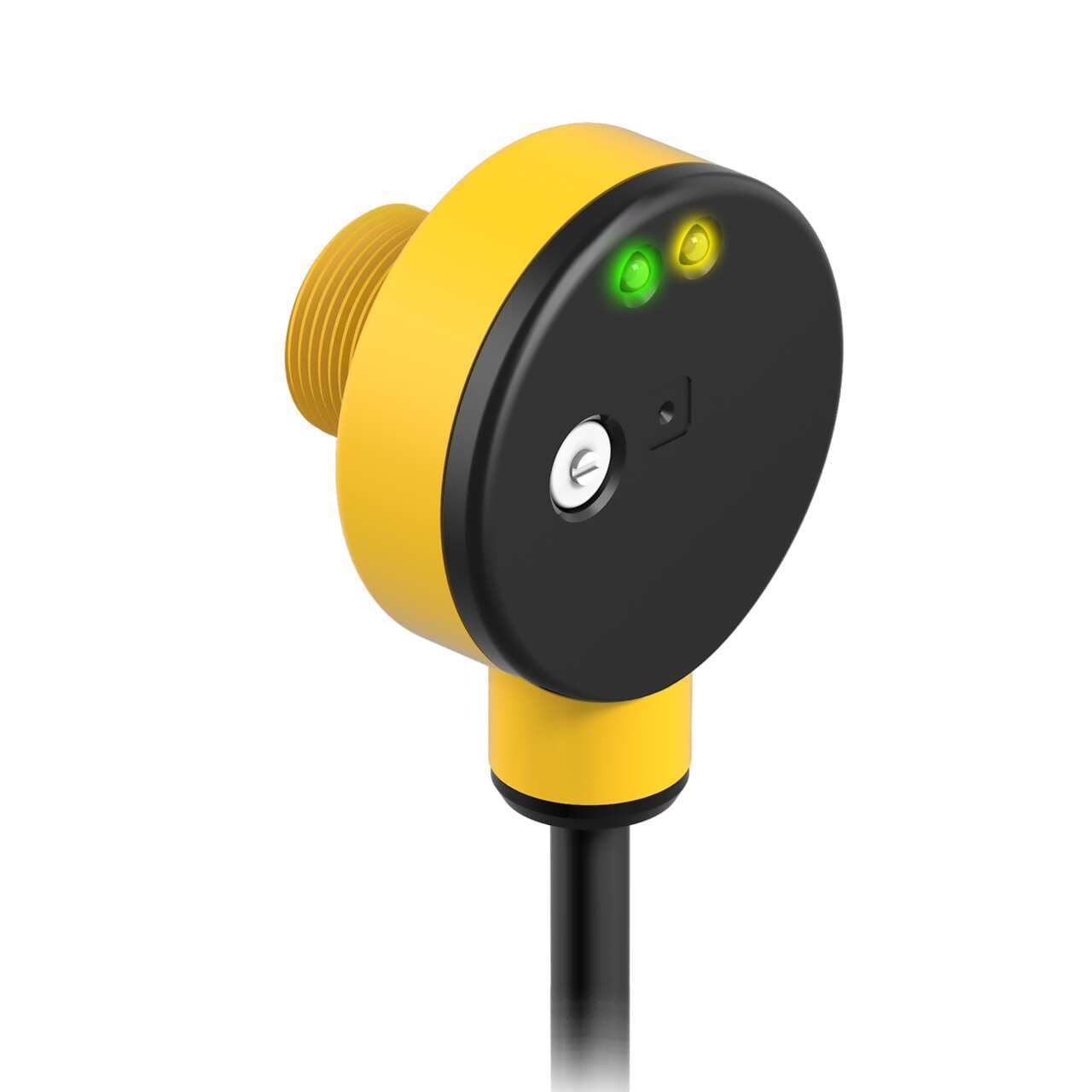

T18RW3D W/30 Banner Proximity Sensors
Part#:T18RW3D W/30
Alt. Part#:35867
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T18 Series: Diffuse; Range: 300 mm; Input: 20-250 V ac; Output: SPST Solid-state Dark Operate; 9 m (30 ft) Cable
Product Details
- Weight 602.823768 g
- Country Of Origin US
- Sensing Mode (Detailed) Diffuse
- Special Feature: Water Detection No
- Feature: Encapsulated Yes
- Adjustments Potentiometer
- Sensing Beam Infrared LED
- Output response time (ms) 16
- Lens Material Acrylic
- Feature: Ecolab Certified Yes
- Housing Style Barrel
- Max Op. Temp. (°C) 70
- Repeatability (µs) 4000
- Feature: Washdown Rated Yes
- Cable Length (m) 9
- Operation Dark Operate
- NEMA Rating NEMA 6P
- Feature: Timing (Hold/Delay) No
- Quick Disconnect Type No QD
- Number of Pins 3
- Opposed Mode Emitter/Receiver N/A
- Power AC
- Outputs Solid-State AC Switch
- Power Supply/Supply Voltage 20-250 V ac
- Max Op. Relative Humidity [%] 90% @ 50°C
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -40
- Special Feature: Remote Teach No
- Indicator LEDs
- Input/Output Solid-State AC Switch
- Max Sensing Distance (mm) 300
- Special Feature: Intrinsically Safe No
- IP Rating IP67, IP69
- Primary Housing Material Thermoplastic
- Connection Cable
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 18
- Feature: Chemical Resistant Yes
- Feature: Hazardous Area No
- Feature: Audible No
- DeviceNet No
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18RW3D W/30 on Powermatic Associates is $151.00. Order now.
About the product
Banner Engineering T18RW3D W/30 is a photo-electric sensor from the T18 series, designed with a diffuse mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and has a diameter of 40mm. It is pre-wired with a 30ft / 9m cable terminated with bare end flying leads for connectivity. The sensor operates on a supply voltage range of 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.) and can be mounted using a threaded mount. It is designed to operate within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, IP69K, and NEMA 6P. The T18RW3D W/30 has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (Solid-state AC output; SPST contact type), and offers a sensing distance of 300mm. It utilizes infrared (IR) light with a wavelength of 880 nm and has a response time of 16ms / 0.016 s. Its operating mode is Dark-ON, and it features an M18 thread size.
