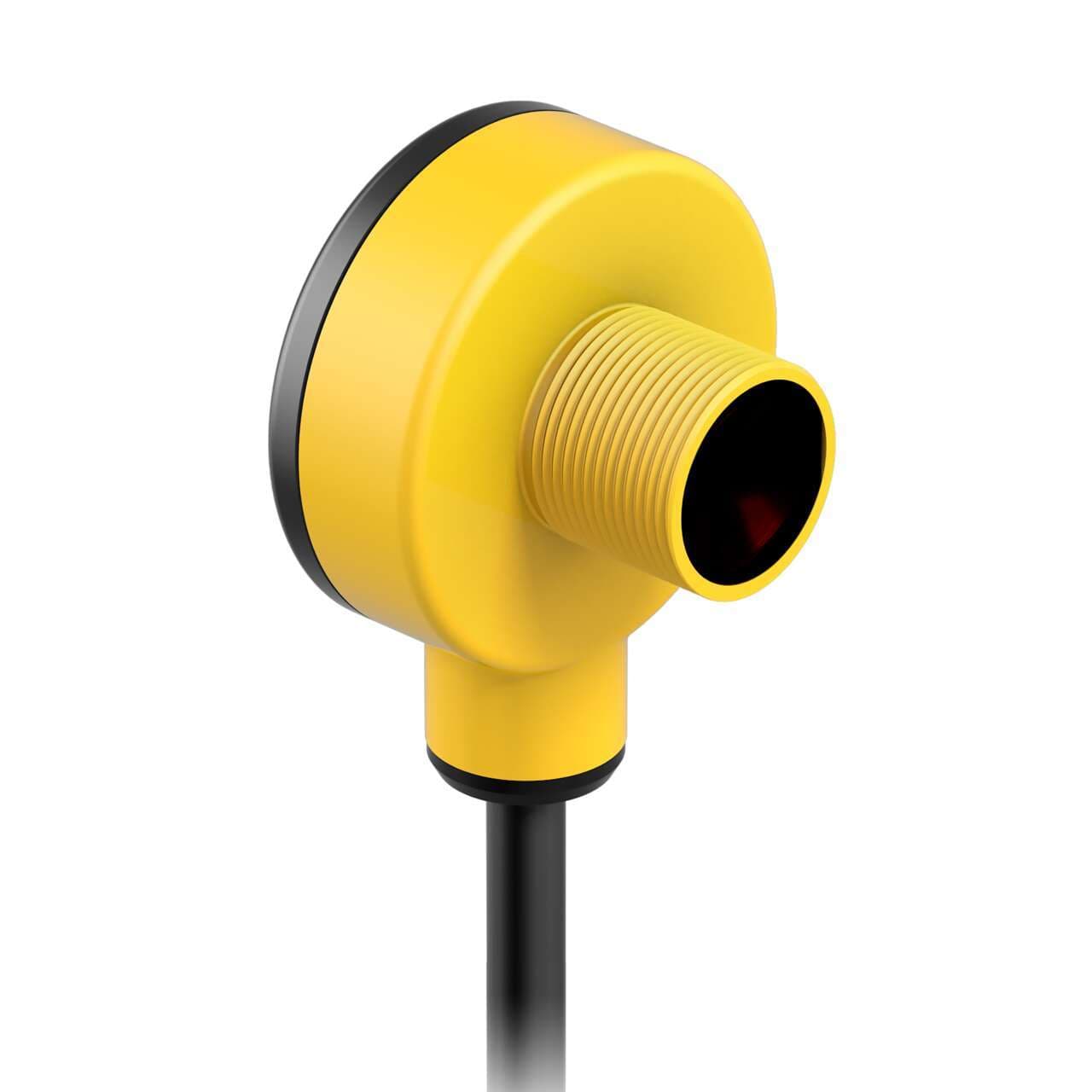

T18RW3R Banner Proximity Sensors
Part#:T18RW3R
Alt. Part#:33407
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T18 Series: Receiver; Range: 20 m; Input: 20-250 V ac; Output: SPST Solid-state Dark Operate; 2 m (6.5 ft) Cable
Product Details
- Weight 155.582056 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Product series / family name EZ-BEAM series
- Design through-beam system / opposed mode
- Primary brand Banner Engineering
- Sub-range name T18 series
- Shape Cylindrical smooth
- Mounting mode Threaded mount
- Diameter 40mm
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Order code / Manufacturer SKU 33407
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Degree of protection IP67 IP69K NEMA 6P
- Response time (ON) 16ms / 0.016 s(OFF) 8ms / 0.008 s
- Sensing distance 20m
- Compliant with standard(s) cULus CSA CE
- Functions Photo-electric sensor receiver green LED (power ON) amber LED (output state)
- Thread size M18
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Material thermoplastic housing Polycarbonate lns.
- Light Color Infrared (IR)
- Ambient air temperature for operation -40...+70 °C
- Wavelength 950 nm
- Operating mode Dark-ON
- Housing Style Barrel
- Max Op. Temp. (°C) 70
- IP Rating IP67, IP69
- Feature: Washdown Rated Yes
- Power AC
- Connection Cable
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- Feature: Audible No
- Sensing Mode (Detailed) Receiver
- Min Op. Temp. (°C) -40
- Delay at Power-up (ms) 100
- Feature: Encapsulated Yes
- Primary Housing Material Thermoplastic
- Operation Dark Operate
- NEMA Rating NEMA 6P
- Feature: Ecolab Certified Yes
- Sensing Mode (General) Opposed
- Power Supply/Supply Voltage 20-250 V ac
- Special Feature: Remote Teach No
- Adjustments N/A
- Cable Length (m) 2
- Special Feature: Intrinsically Safe No
- Lens Material Polycarbonate
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Outputs Solid-State AC Switch
- Output response time (ms) 16 ON/8 OFF
- Max Op. Relative Humidity [%] 90% @ 50°C
- Opposed Mode Emitter/Receiver Receiver
- IO Link No
- Input/Output Solid-State AC Switch
- Quick Disconnect Type No QD
- Repeatability (µs) 2000
- Indicator LEDs
- Feature: Chemical Resistant Yes
- Max Sensing Distance (mm) 20000
- Number of Pins 3
- Feature: Hazardous Area No
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18RW3R on Powermatic Associates is $106.00. Order now.
About the product
Banner Engineering T18RW3R is a photo-electric sensor designed for through-beam system applications, part of the T18 series. This sensor functions as a receiver alone, housed in a thermoplastic with a polycarbonate lens. It features a cylindrical shape with an M18 threaded mount and a diameter of 40mm. The connection is facilitated by a pre-wired 6.5ft / 2m cable with bare end flying leads. It operates on a supply voltage ranging from 20Vac to 250Vac, with nominal voltages at 200Vac, 220Vac, and 240Vac. The T18RW3R can operate in ambient air temperatures from -40 to +70 degrees Celsius and offers a degree of protection rated at IP67, IP69K, and NEMA 6P. It has a single digital output (Solid-state AC output; SPST contact type), a sensing distance of up to 20m, and operates with infrared light at a wavelength of 950 nm. The sensor's response time is 16ms for turning on and 8ms for turning off, and it operates in a Dark-ON mode.
