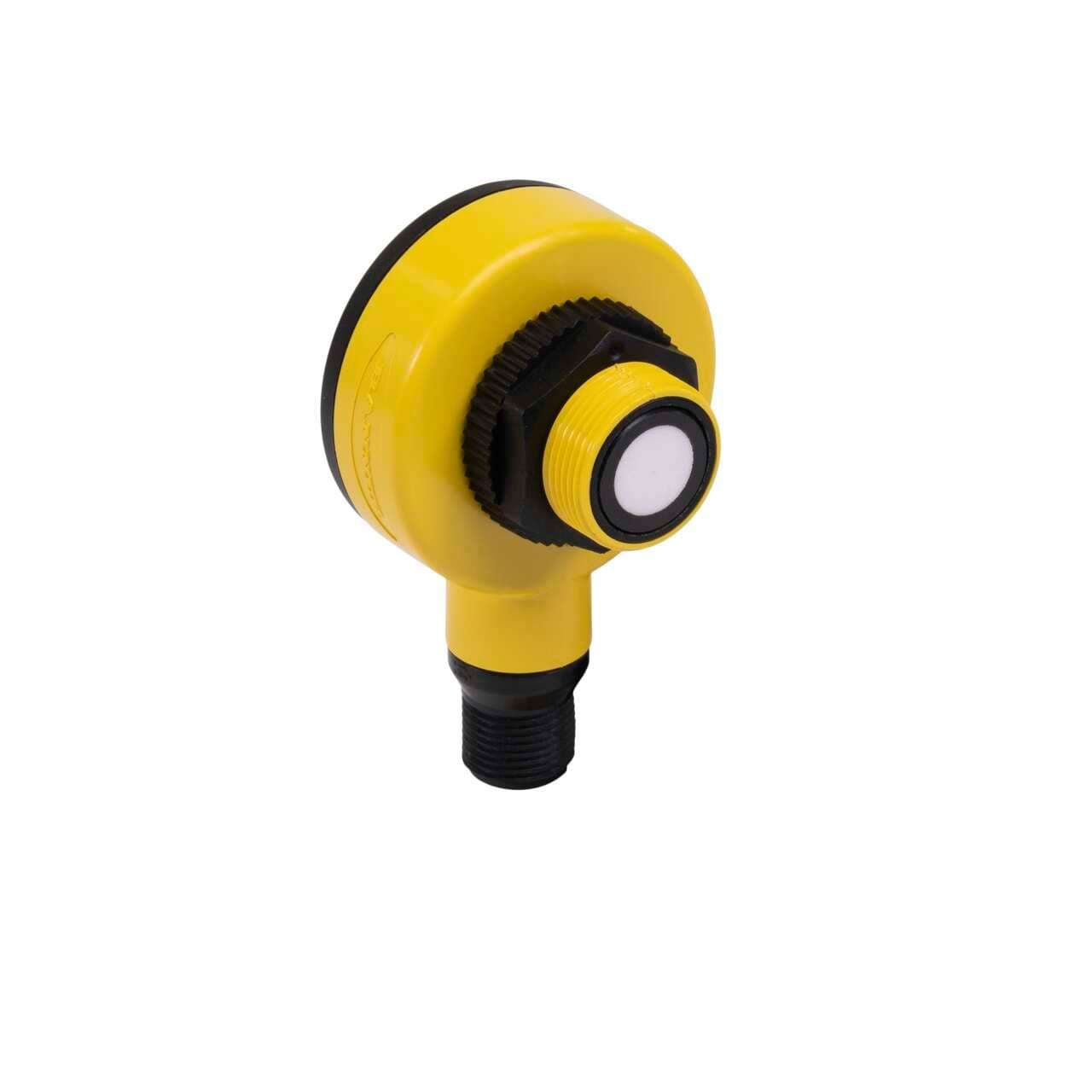

T18VN6UR W/30 Banner Ultrasonic Sensors

Product Details

• Weight
  598.74144 g
• Country Of Origin
  MX
• Cable Length (m)
  9
• Indicator
  LED(s)
• Max Discrete (Switched) Output (mA)
  150 mA max. (each output) at 25°C, derated to 100 mA at 70°C (derate ≈ 1 mA per °C)
• Minimum Response Time (ms)
  1
• Profibus
  No
• Max Measurement Range
  >500 mm - <=1000 mm
• Max Sensing Distance (mm)
  600
• Discrete (Switched) Outputs
  NPN Complementary
• NEMA Rating
  NEMA 6P
• Feature: Clear Object Detection
  Yes
• SSI
  No
• Sensing Beam
  Ultrasonic
• Primary Housing Material
  PBT
• Vibration
  MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
• Max Operating Temperature (°C)
  70
• Barrel Diameter (mm)
  18
• Common Ethernet Protocol
  No
• Sensing Mode (General)
  Opposed
Quick Disconnect Type
No QD
Output Saturation Voltage NPN Outputs
< 1.5 V at 10 mA; < 2.0 V at 150 mA
Temperature Warm-up Drift upon Power-up
< 1.7% of the sensing distance upon power-up.
Ultrasonic Frequency (kHz)
230
RS-232
No
Power
DC
Connection
Flying Leads
Mechanical Shock (Additional Comments)
MIL-STD-202G, Meth. 213B, conditions H&I (Shock: 75G with unit operation: 100G for non-operation).
Temp. Warm-up Drift (Notes 1)
After 10 min, the apparent distance is < 0.3% of the actual position.
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
RS-422
No
Housing Style
Rectangular w/M18 Mount
Input/Output
Discrete
Number of Pins
4
Output Protection
Protected against overload and short circuit conditions. No false pulse upon receiver power-up
Temp. Warm-up Drift (Notes 2)
After 25 min, the sensing position will be stable.
Power/Current Consumption (exclusive of load)
35 mA
RS-485
No
Application: Ultrasonic
Yes
Wireless
No
Sensing Mode (Detailed)
Receiver
Minimum Sensing Distance (mm)
300
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Min Operating Temperature (°C)
-40
Max Off-state Leakage Current (µA)
< 1 at 30 V dc
PROFINET
No
Device Type
Sensor
Power Supply
12-30 V dc
Output Saturation Voltage PNP Outputs
< 1.5 V at 10 mA; < 2.0 V at 150 mA
Rep Rate (ms)
Normal Resolution Mode: 8; High Resolution Mode: 5
Feature: Chemical Resistant
No
1-wire Serial Interface
No
PC Configurable
No
Delay at Power-up (ms)
100
IP Rating
IP67
IO Link
No
Feature: Timing (Hold/Delay)
No
