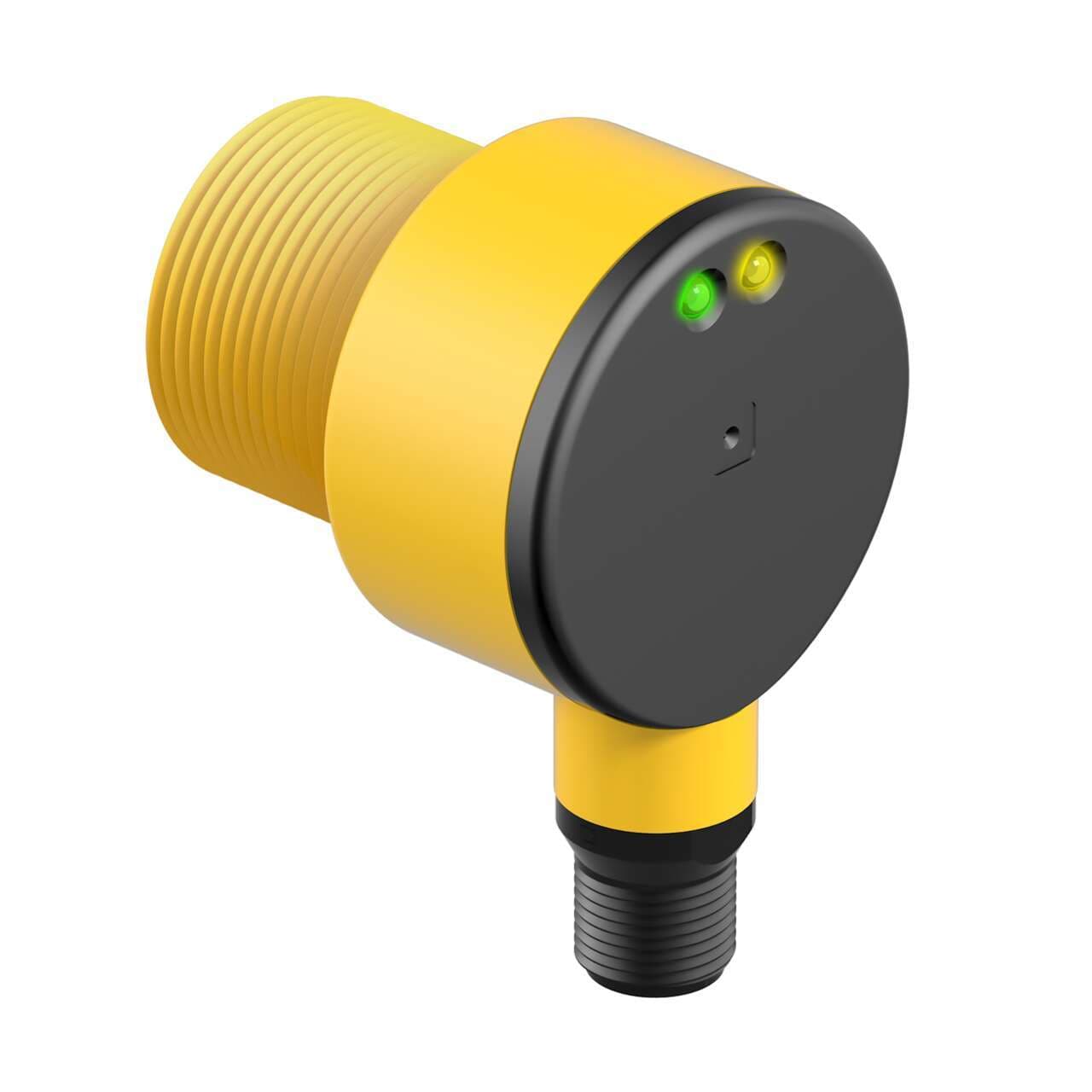

T30S2P6RQ Banner Proximity Sensors
Part#:T30S2P6RQ
Alt. Part#:45173
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T30 Series: Receiver; Range: 60 m; Input: 10-30 V dc; Output: PNP-Light Operate; Requires T306EQ Emitter; 4-pin M12 Integral QD
Product Details
- Weight 99.79024 g
- Country Of Origin US
- Outputs PNP
- Primary Housing Material Thermoplastic
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Min Op. Temp. (°C) -40
- Output response time (ms) 3 ON/1.5 OFF
- Opposed Mode Emitter/Receiver Receiver
- DeviceNet No
- Max Sensing Distance (mm) 60000
- Housing Style Barrel
- Quick Disconnect Type M12 (Euro)
- Repeatability (µs) 375
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Connection Integral QD
- NEMA Rating NEMA 6P
- Adjustments N/A
- Feature: Ecolab Certified Yes
- IO Link No
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- IP Rating IP69
- Lens Material Polycarbonate
- Feature: Chemical Resistant No
- Feature: Health/ Marginal Signal Output Yes
- Sensing Mode (Detailed) Receiver
- Operation Light Operate
- Special Feature: Remote Teach No
- Feature: Washdown Rated Yes
- Input/Output Discrete
- Delay at Power-up (ms) 100
- Special Feature: Intrinsically Safe No
- Indicator LEDs
- Feature: Hazardous Area No
- Sensing Mode (General) Opposed
- Max Op. Temp. (°C) 70
- Number of Pins 4
- Feature: Audible No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T30S2P6RQ on Powermatic Associates is $110.00. Order now.
About the product
Banner Engineering T30S2P6RQ is a photo-electric sensor from the T30 series, designed with a through-beam system or opposed mode. This sensor features a thermoplastic housing with a polycarbonate (PC) lens and is pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage ranging from 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The T30S2P6RQ can function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP69K NEMA 6P. Its shape is an M30 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor). The sensing distance of this sensor is 60m, utilizing infrared (IR) light, with a response time of 3ms or 0.003 seconds. It operates in Light-ON NO (Normally Open) mode and has an M30 thread size.
