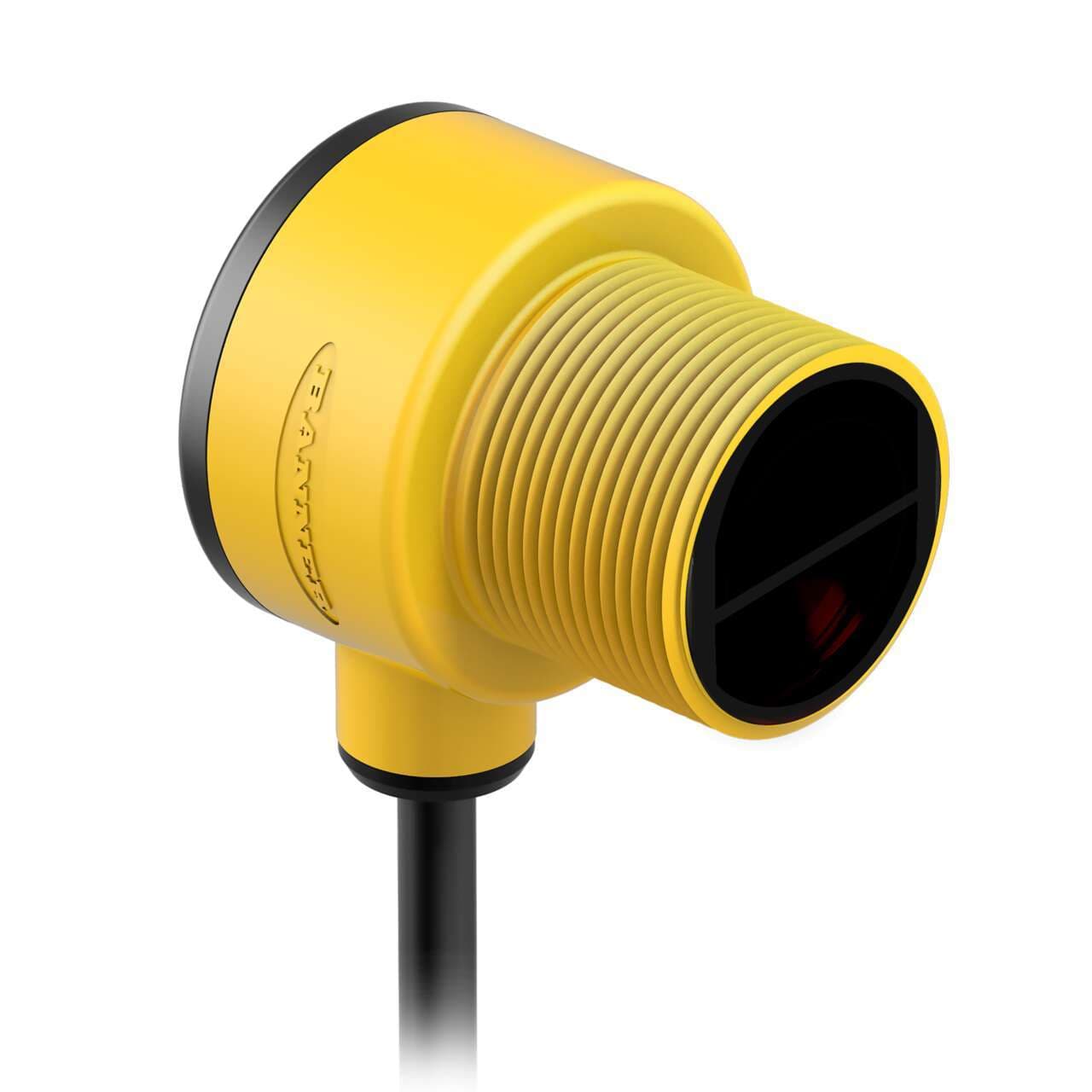

T30SP6LP W/30 Banner Proximity Sensors

T30SP6LP W/30 on Powermatic Associates
Banner
  • T30SP6LP W/30
  • T30SP6LP W/30

Part#:T30SP6LP W/30

Alt. Part#:33938

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

EZ-BEAM T30 Series: Polarized Retro; Range: 6 m; Input: 10-30 V dc; Output: Complementary PNP; 9 m (30 ft) Cable

Product Details

  • Weight
    607.81328 g
  • Country Of Origin
    US
  • Housing Style
    Barrel
  • Max Op. Temp. (°C)
    70
  • IP Rating
    IP69
  • Opposed Mode Emitter/Receiver
    N/A
  • Sensing Beam
    Visible Red LED
  • Operation
    Light/Dark Operate
  • Number of Pins
    4
  • Indicator
    LEDs
  • DeviceNet
    No
  • Cable Length (m)
    9
  • Outputs
    PNP
  • Output response time (ms)
    3
  • Barrel Diameter (mm)
    30
  • Primary Housing Material
    Thermoplastic
  • Min Op. Temp. (°C)
    -40
  • Lens Material
    Acrylic
  • Feature: Audible
    No
  • Sensing Mode (Detailed)
    Polarized
  • Connection
    Cable
  • Special Feature: Water Detection
    No
  • Feature: Hazardous Area
    No
  • Input/Output
    Discrete
  • Special Feature: Remote Teach
    No
  • Adjustments
    N/A
  • Feature: Chemical Resistant
    No
  • Sensing Mode (General)
    Retroreflective
  • Power Supply/Supply Voltage
    10-30 V dc
  • Repeatability (µs)
    750
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Ecolab Certified
    Yes
  • Power
    DC
  • Quick Disconnect Type
    No QD
  • NEMA Rating
    NEMA 6P
  • Feature: Timing (Hold/Delay)
    No
  • Max Sensing Distance (mm)
    6000
  • Delay at Power-up (ms)
    100
  • Feature: Encapsulated
    Yes
  • Feature: Washdown Rated
    Yes
  • IO Link
    No
  • Feature: Health/ Marginal Signal Output
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T30SP6LP W/30 on Powermatic Associates is $151.00. Order now.

About the product

Banner Engineering T30SP6LP W/30 is a polarized photo-electric sensor from the T30 series, designed in a retro-reflective mode. This sensor features a thermoplastic housing and is pre-wired with a 30ft / 9m cable that terminates with bare end flying leads. It operates on a supply voltage range of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc. The sensor can function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP69K NEMA 6P. Its shape is an M30 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor). The sensing distance of the sensor is 6m, and it emits visible red light with a response time of 3ms / 0.003 s. It supports both Light-ON and Dark-ON operating modes and has an M30 thread size.
