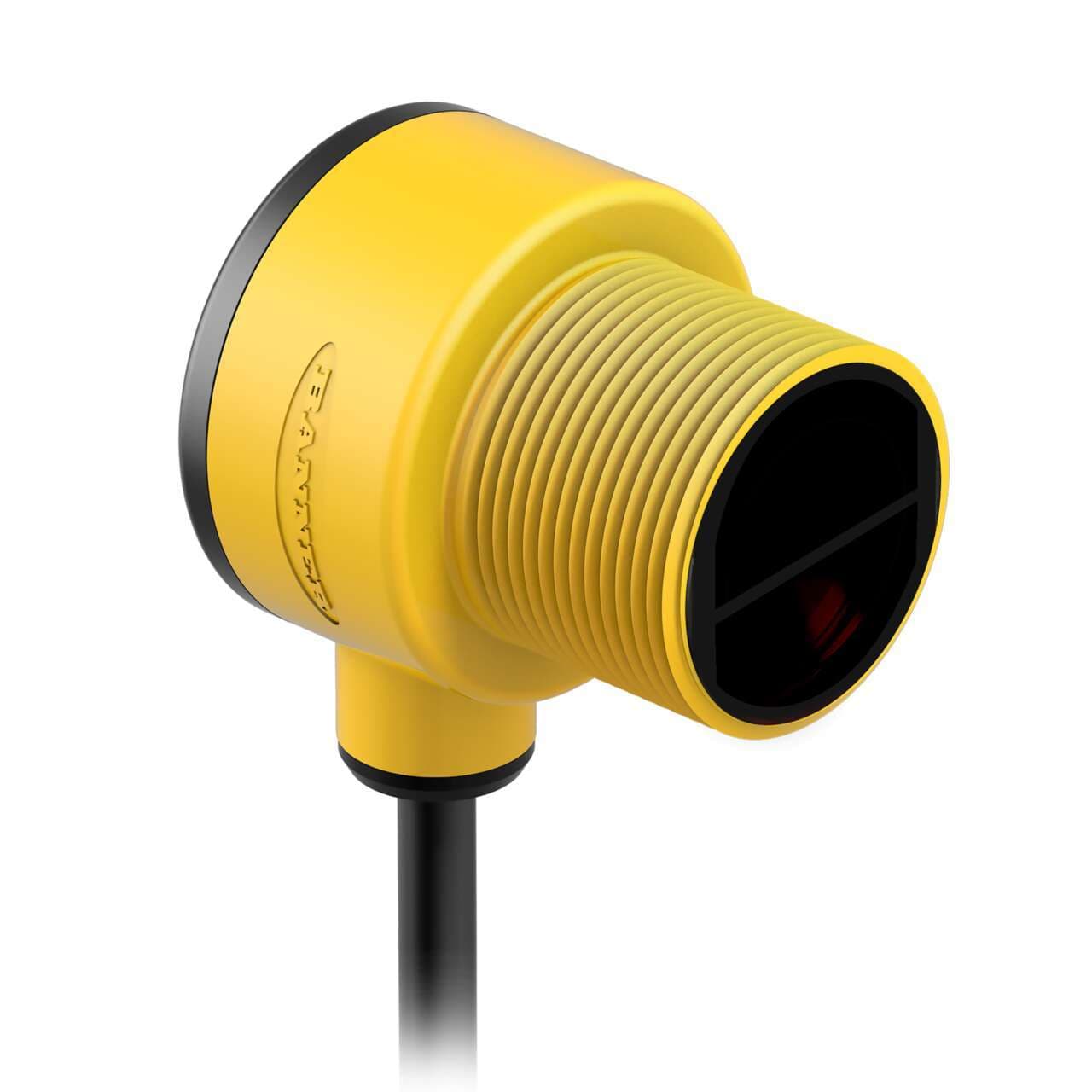

T30SP6FF400 Banner Proximity Sensors
Part#:T30SP6FF400
Alt. Part#:32486
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T30 Series: Fixed Field; Range: 400 mm; Input: 10-30 V dc; Output: Complementary PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 180.529616 g
- Country Of Origin US
- Sub-range name T30 series
- Sensing distance 400mm
- Product series / family name EZ-BEAM series
- Main function Sensor (Photo-electric)
- Design background suppression system
- Digital outputs 1 x digital output (PNP transistor)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Primary brand Banner Engineering
- Shape Cylindrical threaded/barrel
- Response time 3ms / 0.003 s
- Order code / Manufacturer SKU 32486
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
- Thread size M30
- Degree of protection IP67 NEMA 6P
- Compliant with standard(s) cULus cCSAus CE
- Light Color Infrared (IR)
- Ambient air temperature for operation -40...+70 °C
- Power DC
- Output response time (ms) 3
- Special Feature: Remote Teach No
- Feature: Washdown Rated Yes
- DeviceNet No
- Input/Output Discrete
- Outputs PNP
- IP Rating IP69
- Feature: Audible No
- IO Link No
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 70
- Number of Pins 4
- Housing Style Barrel
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Max Sensing Distance (mm) 400
- Min Op. Temp. (°C) -40
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Health/ Marginal Signal Output Yes
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Connection Cable
- Special Feature: Water Detection No
- Adjustments N/A
- Feature: Hazardous Area No
- Sensing Beam Infrared LED
- Quick Disconnect Type No QD
- Delay at Power-up (ms) 100
- Indicator LEDs
- Feature: Encapsulated Yes
- Cable Length (m) 2
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 750
- Barrel Diameter (mm) 30
- Feature: Ecolab Certified Yes
- Sensing Mode (General) Proximity
- Operation Light/Dark Operate
- NEMA Rating NEMA 6P
- Opposed Mode Emitter/Receiver N/A
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T30SP6FF400 on Powermatic Associates is $136.00. Order now.
About the product
Banner Engineering T30SP6FF400 is a fixed-field photo-electric sensor within the T30 series, featuring a background suppression system. This sensor is housed in thermoplastic and comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. The T30SP6FF400 is designed with an IP69K NEMA 6P degree of protection, ensuring its durability in various environments. Its M30 cylindrical threaded/barrel shape facilitates easy installation. The sensor features a single digital output (PNP transistor), a sensing distance of 400mm, and utilizes infrared (IR) light. With a response time of 3ms / 0.003 s, it supports both Light-ON and Dark-ON operating modes, and is equipped with an M30 thread size for mounting.
